General Information
Application

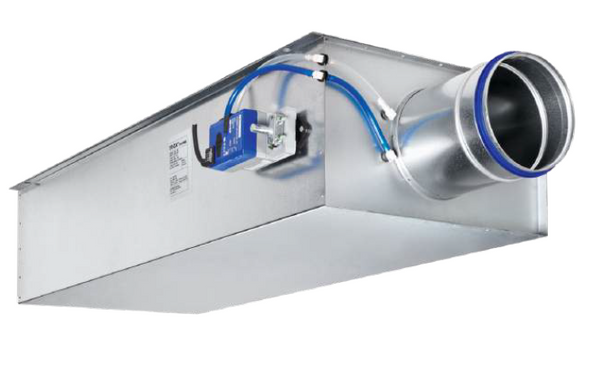

- Rectangular VAV terminal units for use in ventilation and air conditioning systems
- For control, inductor and shut-off tasks in the extract air area with high acoustic requirements
- Integral attenuator
- Closed-loop volume flow control using an external power supply
- For variable or constant volume flow systems
- Shut-off via override control by others
- Can also be used for duct or room pressure control with suitable control components
Special characteristics
- Integral attenuator with at least 26 dB insertion loss at 250 Hz
- Hygiene tested and certified
- Factory set-up or programming and aerodynamic function testing
- Setting and subsequent parameterisation on the control component possible, separate setting device may be required
Nominal sizes
5, 6, 8, 10, 12, 16
Variants
- TVA: Extract air unit
- TVA-D: Extract air unit with acoustic cladding
- Units with acoustic cladding and/or secondary silencer Type TS for very demanding acoustic requirements
- Acoustic cladding cannot be retrofitted

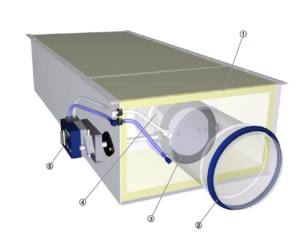

Parts and characteristics
- Ready-to-commission unit which consists of mechanical parts and control components
- Averaging effective pressure sensor for volume flow rate measurement
- Damper blade
- Integral attenuator
- Factory assembled control components complete with wiring and tubing
- Aerodynamic functional testing on a special test rig prior to shipping of each unit
- Set-up data is given on a label or volume flow rate scale affixed to the unit
- High control accuracy even in case of unfavourable upstream conditions

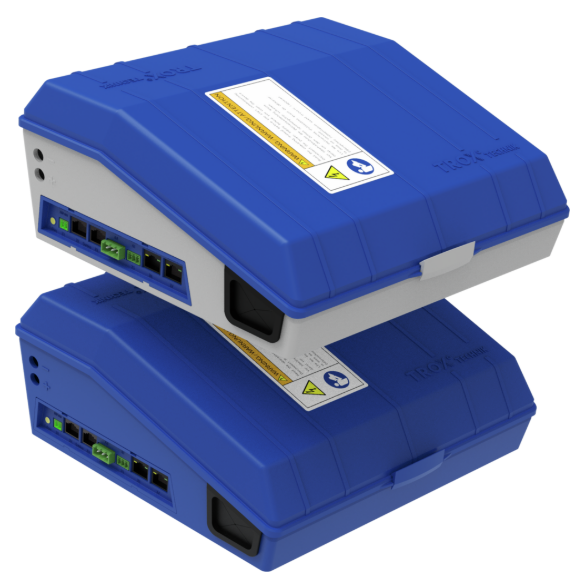

Attachments

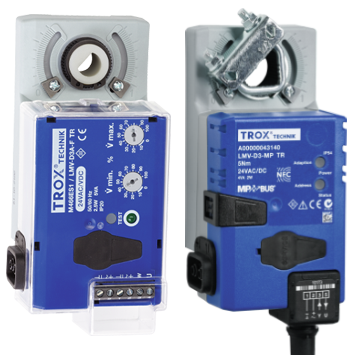

- EASY controller: Compact unit consisting of controller with potentiometers, effective pressure transducer and actuator
- Compact controller: Compact unit consisting of controller with potentiometers, effective pressure transducer and actuator
- Universal controllers: Controllers, differential pressure transducers and actuators for special applications
- LABCONTROL: Control components for air management systems
Accessories
- Double lip seal (factory fitted)
Useful additions
- Secondary silencer Type TS
Construction features
- Rectangular casing

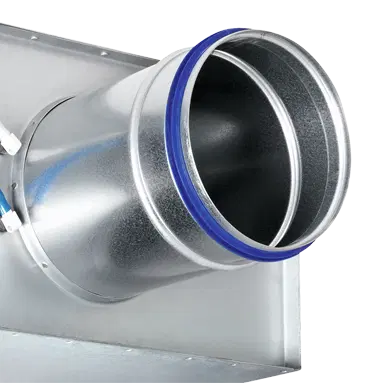

- Spigot on the fan end suitable for circular ducts to EN 1506 or EN 13180
- Spigot with groove for double lip seal

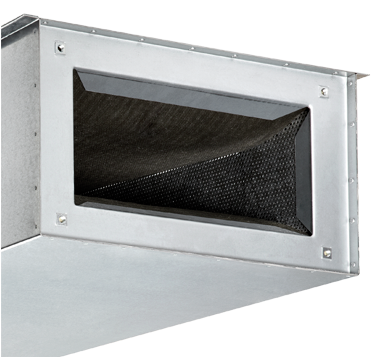

- Connection on the room end suitable for ducts
- Baffle plate is fitted after the damper blade for optimum aerodynamic performance
- Position of the damper blade indicated externally at shaft extension
- Thermal and acoustic insulation (lining)
Material and surfaces
Casing and damper blade made of galvanised sheet steel
- Damper blade seal made of TPE plastic
- Lining is mineral wool
- Effective pressure sensor made of aluminium
- Plastic plain bearings
- Shaft and linkage made of galvanised steel
Variant with acoustic cladding (-D)
- Acoustic cladding made of galvanised sheet steel
- Lining is mineral wool
- Rubber elements for the insulation of structure-borne noise
Mineral wool
- To EN 13501, fire rating Class A1, non-combustible
- RAL quality mark RAL-GZ 388
- Non-hazardous to health thanks to being highly biosoluble in accordance with the Ordinance on Hazardous Substances and Note Q of the European Directive (EC) No. 1272/2008
- Faced with glass fibre fabric as protection against erosion through airflow velocities of up to 3937 fpm
- Inert to fungal and bacterial growth
Standards and guidelines
Fulfils the hygiene requirements of
- EN 16798, Part 3
- VDI 6022, Sheet 1
- DIN 1946, Part 4
- Further standards, guidelines in accordance with hygiene certificate
Casing leakage:
- NS 5 – 8
- EN 1751, Class C
- NS 10 – 16
- EN 1751, Class B
Closed blade air leakage:
- EN 1751, Class 4
- Meets the increased requirements of DIN 1946, Part 4, with regard to the acceptable closed damper blade air leakage
Maintenance
- Maintenance-free as construction and materials are not subject to wear
Disclosure of Chemicals
RoHS EU Directive 2011/65/EU (RoHS)This product or individual variants comply with EU Directive 2011/65/EU (RoHS) on the restriction of the use of certain hazardous substances in electrical and electronic equipment. For more information, please refer to our Environmental Product Declarations. REACH 1907/2006 (EC Regulation REACH)This product or individual variants comply with the provisions of EC Regulation No. 1907/2006, also known as REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals). For more information, please refer to our Environmental Product Declarations
