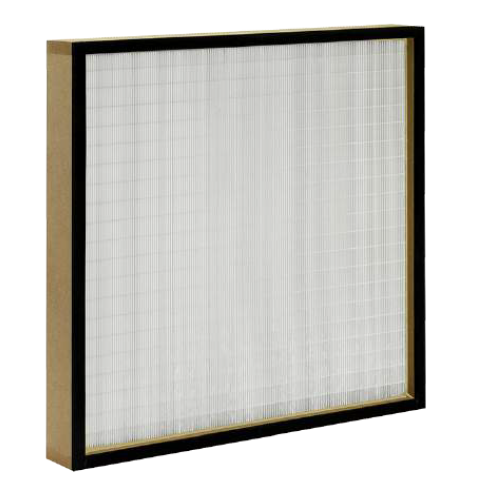

TROX MFP – Mini Pleat Panel Filter

• Mini Pleat filter panel for the separation of fine dust and suspended particles such as aerosols, toxic dusts, viruses and bacteria from the supply and extract air in ventilation systems with large volume flows and long filter lives
• Fine dust filter: prefilter or final filter for the separation of fine dust in ventilation and air conditioning systems.
• Particulate filter: main or final filter used for the most critical requirements of air cleanliness and sterility in areas such as industry, research, medicine, medicine, etc.

• Leakage test is standard for all particulate filters of classes H13, H14

• Eurovent Certification for fine dust filters

• B × H × D [in]

• ePM 10 according to DIN EN ISO 16890
• ePM 1 according to DIN EN ISO 16890
• EPA according to DIN EN 1822
• HEPA according to DIN EN 1822

• ePM10
• ePM 1
• E10
• E11
• E12
• H13
• H14

• FT: pleat depth
• PU: protection grid on the upstream side
• PD: protection grid on the downstream side
• PB: protection grid on both sides
• FNU: flat seal on the upstream side
• FND: flat seal on the downstream side
• FNB: flat seal on both sides
• TGU: test groove seal on the upstream side (only for filter classes H13, H14)
• CSU: continuous seal on the upstream side
• CSD: continuous seal on the downstream side
• CSB: continuous seal on both sides
• WS: without seal
• OT: oil mist test (only for filter classes H13, H14)
• OTC: oil mist test with certificate (only for filter classes H13, H14)
• ST: filter scan test (only for filter classes H13, H14)

• PLA: frame made of plastic (depth 2, 4)
• PLAF: frame made of plastic with flange (depth 4, 6 in)
• MDFF: frame made of MDF with flange (depth 2 in)
• MDF: frame made of MDF (depth 2, 3, 6, and 12 in)
• GAL: frame made of galvanised steel (depth 60, 150, 292 mm)
• STA: frame made of stainless steel (depth 2, 6, 12 in)
• CBS cardboard frame, stapled (depth 1.8, 1.9, 3.5, 3.8 in)

• Filter wall (SIF)
• Universal casing (UCA)
• Ducted particulate filter, available as one unit (KSF, KSFS) or as a filter unit system (KSFSSP)
• Duct casing for particulate filters (DCA)
• Ceiling-mounted particulate filter (TFC)
• Wall mounted particulate filter (TFW)
• Particulate filter module (TFM)
• Ceiling diffusers for extract air applications (TFEA)

• Circumferential flat seal on the upstream side for variants CBS, MDF, GAL, STA
• Versions optionally with foamed continuous seal or with a test groove seal (filter classes H13, H14) on the upstream side
  • The flat seal or continuous seal can also be arranged on the downstream side or on both sides
• Protection grid made of expanded metal: can be fitted on the downstream or upstream side or both sides as required

• Filter media made of high-quality, wet-strength glass fibre papers, pleated
• Spacers provide a uniform spacing of the pleats
• Joint sealing compound made of permanently elastic twocomponent polyurethane adhesive
• Frame optionally available in cardboard, plastic, MDF, galvanised sheet steel, stainless steel

• Testing in accordance with DIN EN ISO 16890; international standard: air filters for general ventilation. Classification of fractional efficiency based on the measured fractional efficiency which is processed into a reporting system for the particulate matter efficiency (ePM)
• For fine dust filters, the fractional efficiency of a certain size range is determined by aerosols (DEHS and KCl)
• Depending on the test values, the filters are classified into the filter groups ISO ePM10 and ISO ePM1
• Testing of particulate filters according to DIN EN 1822-1 and DIN EN ISO 29463-2 to DIN EN ISO 29463-5 (EPA, HEPA, and ULPA particulate filters): Standards for testing filtration performance at the manufacturing plant, based on particle counting methods using a liquid test aerosol.
• Uniform classification of particulate filters according to separation efficiency, using a test aerosol with an average particle size within the minimum separation efficiency (MPPS)
• Classification of particulate filters:
  • Determined local separation efficiency
  • Determined integral separation efficiency

Disclosure of Chemicals

• RoHS EU Directive 2011/65/EU (RoHS)
  • This product or single variants comply with EU Directive 2011/65/EU (RoHS) on the restriction of the use of certain hazardous substances in electrical and electronic equipment. For more information, please refer to our Environmental Product Declarations.
• REACH 1907/2006 (EC Regulation REACH)
  • This product or single variants comply with the provisions of EC Regulation No. 1907/2006, also known as REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals). For more information, please refer to our Environmental Product Declarations.
