TROX MFI – Filter Inserts

Call for Price

COMPACT CONSTRUCTION FOR LARGE VOLUME FLOW RATES

Prefilters or final filters for the separation of fine dust and particulate filters for the highest requirements in ventilation and air-conditioning systems

Filter groups ISO ePM10, ISO ePM1 (fine dust filter) and EPA, HEPA (particulate filter)
Performance data tested according to ISO 16890 or to EN 1822-1 and ISO 29463-2 to ISO 29463-5
Eurovent Certification for fine dust filters
Meets the hygiene requirements of VDI 6022
High energy efficiency class according to Eurovent
Optimised energy efficiency of the PLA-ECO construction in ISO ePM1
Filter media for special requirements made of glass fibre papers, with spacers made of hot-melt adhesive or textile threads
Low initial differential pressure due to ideal pleat position and largest possible filter area
Compact V-design with low installation depths
Fitting depending on filter class, into standard cell frames for filter walls (type SIF), into mounting frames (type MF), or into universal casings (type UCA) for duct installation

Optional equipment

ATEX construction for protection zones 1 and 2 as well as 21 and 22

Type

Number Testing Construction

Classification

Separation efficiency

Construction

Nominal size [in]

Number of filter packs

Protection grid

Seal

Testing

Category: Minipleat Filters Tag: MFI

General Information

Application

Mini Pleat filter insert for the separation of fine dust and suspended particles such as aerosols, toxic dusts, viruses and bacteria from the supply and extract air in ventilation and air conditioning systems with large volume flow rates and long filter service lives
Fine dust filter: Prefilter or final filter for the separation of fine dust in ventilation systems.
Particulate filter: Main or final filter used for the most critical requirements of air cleanliness and sterility in areas such as industry, research, medicine, pharmaceuticals, and nuclear engineering

Special characteristics

Optimised energy efficiency of the PLA-ECO construction in ISO ePM1
Leakage test is standard for all particulate filters of classes H13, H14

Classification

Eurovent certification for fine dust filters
Meets the hygiene requirements
Certificate of conformity for use in areas with a potentially explosive atmosphere

Nominal sizes

B × H × T [in]

Filter classes

Filter groups

ISO ePM10 acc. to ISO 16890
ISO ePM1 acc. to ISO 16890
EPA according to EN 1822
HEPA according to EN 1822

Filter classes

ePM10 55 %
ePM1 55 %
ePM1 60 %
ePM1 85 %
E10
E11
H13
H14

Options

Number of filter packs
FNU: Flat seal on the upstream side
FND: Flat seal on the downstream side
OT: Oil mist test (only for filter classes H13, H14)
OTC: Oil mist test with certificate (only for filter classes H13, H14)

Construction

PLA: Frame made of plastic
PLA-ECO: plastic frame, optimised energy efficiency
GAL: Frame made of galvanised steel
SPC: frame steel galvanised, powder-coated, RAL 9010 (pure white)
EX: Protection zones 1 and 2 as well as 21 and 22 (only in combination with frame version GAL)

Useful additions

Filter wall (SIF) for fine dust filters
Mounting frame (MF) for EPA and HEPA filters
Universal casing (UCA) for fine dust filters

Construction features

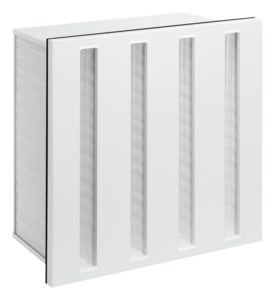

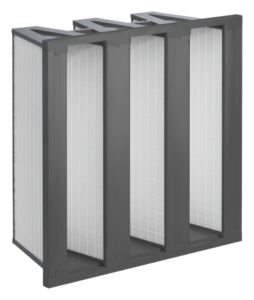

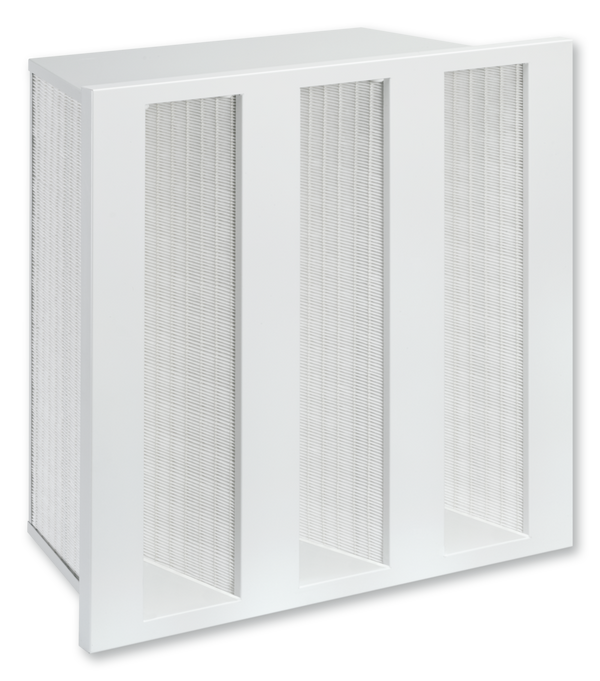

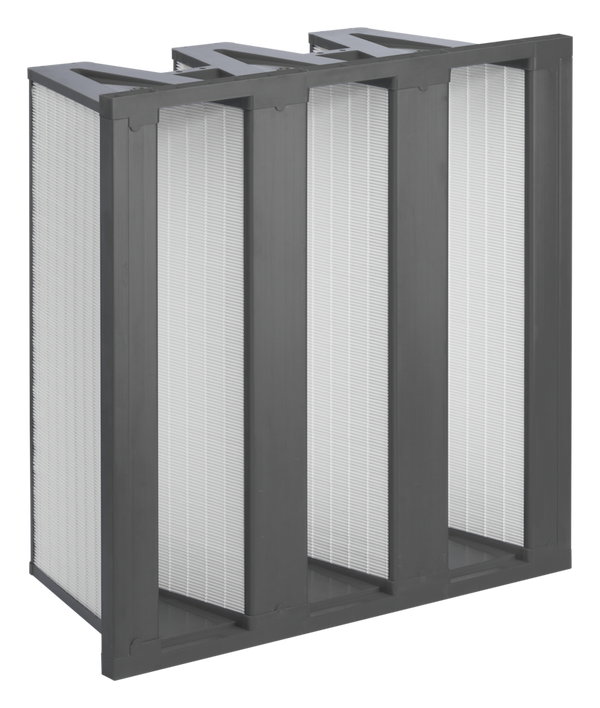

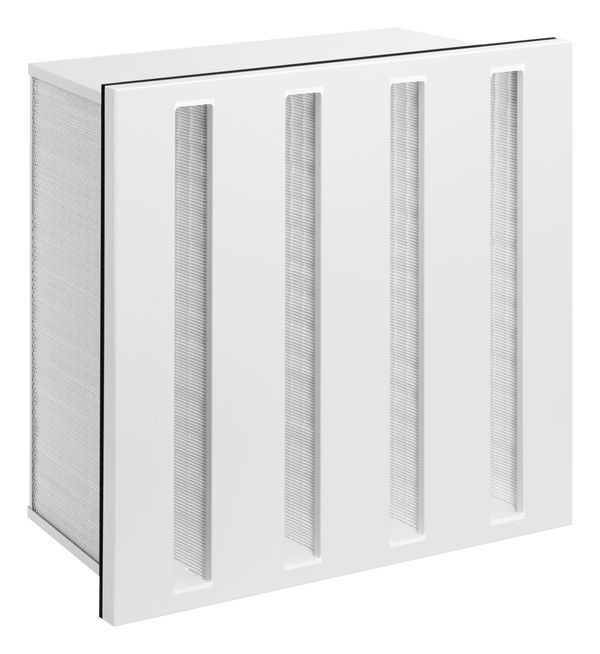

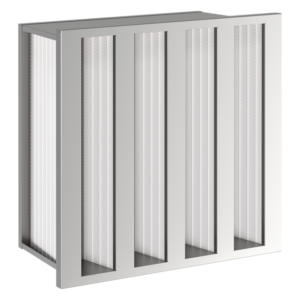

Compact V-design
Fine dust filter (filter groups according to ISO 16890) as standard without seal, optionally with flat seal
Filter classes E10, E11, H13 and H14 as standard with flat seal
Filter classes E11, H13 and H14 with protection grid on the downstream side

Material and surfaces

Filter media made of high-quality, wet-strength glass fibre papers, pleated
Spacers provide a uniform spacing of the pleats
Joint sealing compound made of permanently elastic two-component polyurethane adhesive
Frame options: made of plastic, galvanised steel or of galvanised sheet steel, powder-coated RAL 9010, pure white

Standards and guidelines

Test according to ISO 16890; international standard for general ventilation and air conditioning; classification of arrestance efficiency based on the measured fractional arrestance efficiency, which is processed into a reporting system for the fine dust arrestance efficiency (ePM)
For fine dust filters, the fractional arrestance efficiency of a certain size range is determined by aerosols (DEHS and KCl)
The filters are classified into filter groups ISO ePM10 and ISO ePM1 depending on the tested values
Testing of particulate filters according to EN 1822-1 and ISO 29463-2 to ISO 29463-5 (EPA, HEPA and ULPA particulate filters): standards for the testing of filtration performance in the manufacturer’s factory, particle counting method using a liquid test aerosol
Uniform classification of particulate filters according to efficiency, using a test aerosol whose average particle size lies within the minimum efficiency (MPPS)
Particulate filters are classified according to the values determined for the local filtration efficiency and the overall filtration efficiency as EPA (filter classes E10, E11, E12), HEPA (filter classes H13, H14) or ULPA (filter classes U15, U16, U17)
Hygiene conformity: VDI 6022, VDI 3803, DIN 1946 Part 4, ÖNORM H 6020, SWKI VA 104-01 and SWKI 99-3 and EN 16798
Certificate of conformity for correct use in areas with a potentially explosive atmosphere in accordance with guideline 2014/34/EU and compliance with basic health and safety requirements in accordance with EN 80079-36:2016 and EN 80079-37:2016

Specification Text

Specification text

Mini Pleat filter insert type MFI for the separation of fine dust and suspended particles such as aerosols, toxic dusts, viruses and bacteria from the supply and extract air in ventilation systems. Used as fine dust filters, prefilters or final filters in AHU units; or as particulate filters, main or final filters for highest requirements of air purity and sterility, in areas such as industry, research, medicine, pharmaceuticals, and nuclear technology. Low installation depth due to compact V-design, for systems with high volume flow rates and long filter service lives. Filter media made of high-quality, wet-strength glass fibre papers, with spacers. Optimum pleat position and largest possible filter area allow low initial differential pressures. Mini Pleat filter inserts available in market sizes, filter groups ISO ePM10, ISO ePM1 (fine dust filters) and EPA, HEPA (particulate filters). As a fine dust filter (filter groups according to ISO 16890) as standard without seal, optionally available with flat seal, as a particulate filter, Mini Pleat filter inserts are equipped with a flat seal. Filter classes E11, H13 and H14 as standard with protection grid on the downstream side. Mini Pleat filter insert as fine dust filters are certified according to Eurovent. Mini Pleat filter inserts MFI are hygiene-compliant according to VDI 6022.

The filter insert MFI with optional EX protection MFI-EX may be used in areas with a potentially explosive atmosphere of zones 1 and 2 and zones 21 and 22 (EX II 2G Ex h IIC Gb and EX II 2D Ex h IIIB Db).

The filter must be connected to the ground potential. All conductive and dissipative parts must be connected to each other and to earthed. Conductive dusts are excluded from the application. Make sure that no metal particles can get into the filter. Ambient temperature range: -40 °F ≤ Ta ≤ +176 °F.

Special features

Optimised energy efficiency of the PLA-ECO construction in ISO ePM1
Leakage test is standard for all particulate filters of classes H13, H14

Materials and surfaces

Filter media made of high-quality, wet-strength glass fibre papers, pleated
Spacers provide a uniform spacing of the pleats
Joint sealing compound made of permanently elastic two-component polyurethane adhesive
Frame options: made of plastic, galvanised steel or of galvanised sheet steel, powder-coated RAL 9010, pure white

Construction

PLA: Frame made of plastic
PLA-ECO: plastic frame, optimised energy efficiency
GAL: Frame made of galvanised steel
SPC: frame steel galvanised, powder-coated, RAL 9010 (pure white)
EX: Protection zones 1 and 2 as well as 21 and 22 (only in combination with frame version GAL)

Life cycle assessment
A life cycle assessment is available for the product series in form of an Environmental Product Declaration (EPD) that has been checked and published by a programme holder.
