Application
Application
• Filter insert for the adsorption of gaseous odorous substances and contaminants as well as hydrocarbons or traces of inorganic compounds from the supply and recirculated air
Nominal sizes
• B x H x T [in]

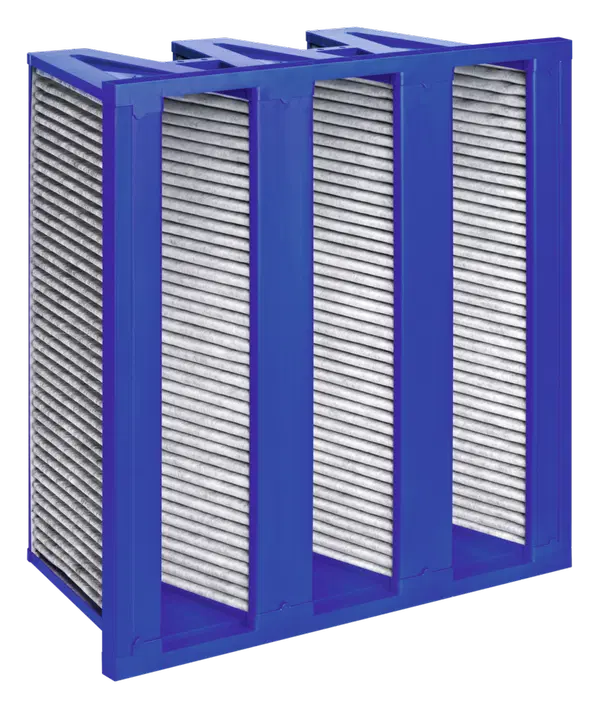

TROX ACFI – Filter Inserts
Call for Price
For the adsorption of gaseous odorous substances and contaminants
To improve the indoor air quality in offices, hotels, and airports
- Available with pre-filter fleece ePM1
- Compact construction style with low installation depth
- Fitting into standard cell frames for filter walls (type SIF)
- Fitting into universal casings (type UCA) for duct installation
Description
Variants
• PF with pre-filter fleece ePM1 according to ISO 16890
Options
• FNU: Flat section seal on the upstream side
• FND: Flat section seal on the downstream side
Construction
Activated carbon filter insert:
• PLA: Frame made of plastic
Useful additions
• Filter wall (SIF)
• Universal casing (UCA)
Construction features
• As standard, construction PLA has no seal
• Some constructions are fitted with an optional flat seal on thedownstream side or upstream side
• Construction PF with pre-filter fleece ePM1 according to ISO16890
Materials and surfaces
• Granulated activated carbon with a backing layer of non-woven synthetic fibres
• Plastic frame
Specification Text
Specification text
Activated carbon filter inserts for the adsorption of gaseous odorous substances and contaminants hydrocarbons or traces of inorganic compounds from the supply and recirculated air. Compact depth construction, suitable for systems with high volume flow rates and a requirement for long filter life. Activated carbon filter inserts are available in all commercial sizes. As standard, the filter inserts have no seal but can be provided with an optional flat seal on the upstream or downstream side. Activated carbon filter inserts optionally with or without prefilter fleece ePM1 according to ISO 16890.
Materials and surfaces
• Granulated activated carbon with a backing layer of non-woven synthetic fibres
• Plastic frame
Construction
Activated carbon filter insert:
• PLA: Frame made of plastic
