TROX ACFC – Filter Cartridges

Call for Price

For the adsorption of gaseous odorous substances and contaminants

To improve the indoor air quality in offices, hotels, and airports

Available with different carbon types for various areas of application and operating conditions

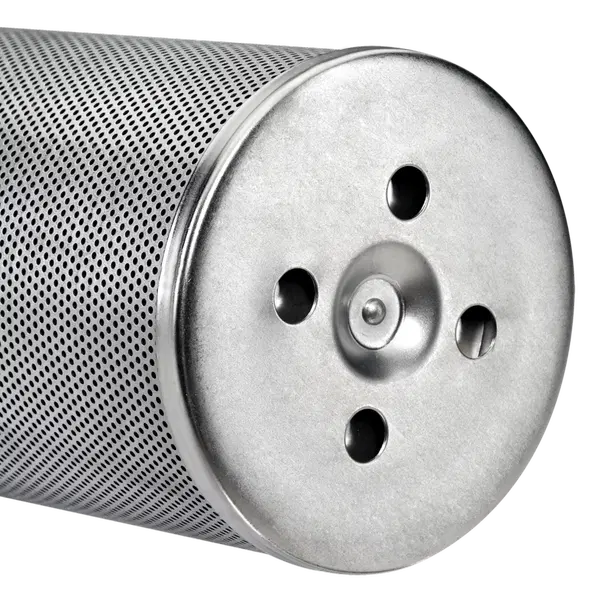

Cylinder made of perforated sheet steel, stainless steel, or plastic, available in different lengths
Plastic cylinders are completely corrosion-resistant; cartridges are completely incinerable and hence easily disposed of
Easy fitting and secure sealing due to 3-point bayonet fixing
Fitting into mounting plates (type MP) for filter walls
Fitting into universal casings (type UCA) for duct installation

Category: Activated Carbon Filters Tag: ACFC

General Information

Application

Filter cartridge for the adsorption of gaseous odorous substances and contaminants as well as hydrocarbons or traces of inorganic compounds from the supply and recirculated air

Special features

Cylinder with profiled base and cover plates
Upon request, filter cartridges can be provided with impregnated carbon types for special applications and operating conditions, e.g. for the adsorption of sulphur and chlorine compounds

Nominal sizes

D × H [in]

Construction

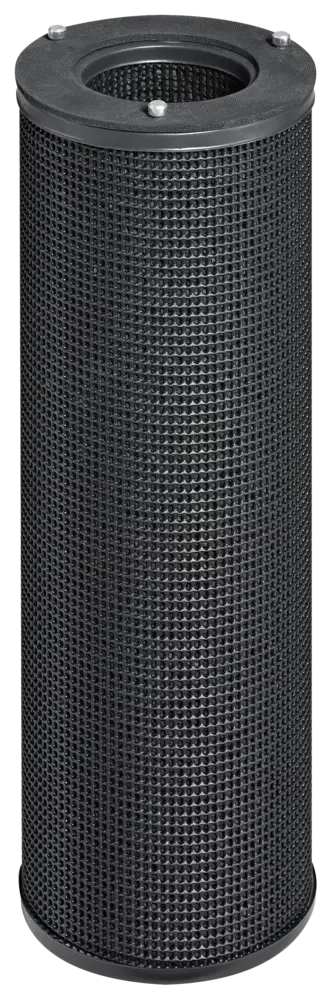

PLA: Casing made of plastic
GAL: Casing made of galvanised steel
STA: Casing made of stainless steel

Useful additions

Mounting plates (MP)
Universal casing (UCA)

Construction features

3-point bayonet fixing
Flat seal as standard

Materials and surfaces

Activated carbon sticks
Casing made of plastic, galvanised sheet steel, or stainless steel

Specification Text

Specification text

Activated carbon filter cartridges for the adsorption of gaseous odorous substances and contaminants as well as hydrocarbons or traces of inorganic compounds from the supply and recirculated air. Easy fitting and secure sealing due to 3-point bayonet fixing. Activated carbon filter cartridges available in lengths of 10, 18 and 24 in. Flat seal as standard.

Special features

Cylinder with profiled base and cover plates
Upon request, filter cartridges can be provided with impregnated carbon types for special applications and operating conditions, e.g. for the adsorption of sulphur and chlorine compounds

Materials and surfaces
