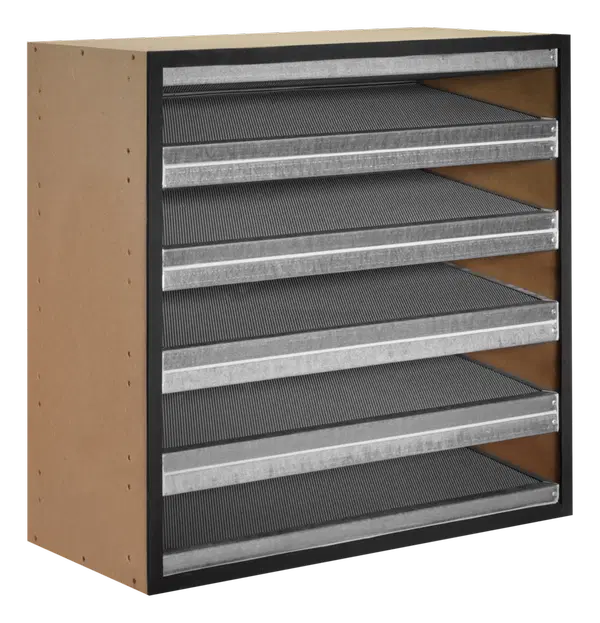

TROX ACF – Filter Cells

Call for Price

For the adsorption of gaseous odorous substances and contaminants

To improve the indoor air quality in offices, hotels, and airports

Available with different carbon types for various areas of application and operating conditions
Compact depth construction
Fitting into ducted particulate filters (types KSF, KSFS) and duct casings for particulate filters (type DCA)

Category: Activated Carbon Filters Tag: ACF

General Information

Application

Filter cell for the adsorption of gaseous odorous substances and contaminants as well as hydrocarbons or traces of inorganic compounds from the supply and recirculated air

Special features

Upon request, filter cells can be provided with impregnated carbon types: for special applications and operating conditions, e.g. for the adsorption of sulphur and chlorine compounds

Nominal sizes

B × H × T [in]

Useful additions

Ducted particulate filter, available as one unit (KSF, KSFS) or as a filter unit system (KSFSSP)
Duct casing for particulate filters (DCA)

Construction features

Flat seal as standard

Materials and surfaces

Activated carbon on carrier material
Frame made of MDF

Specification Text

Specification text

Activated carbon filter cells for the adsorption of gaseous odorous substances and contaminants as well as hydrocarbons or traces of inorganic compounds from the supply and recirculated air. Compact depth construction. Activated carbon filter cells are available in standard sizes. Flat seal as standard.

Special features

Upon request, filter cells can be provided with impregnated carbon types: for special applications and operating conditions, e.g. for the adsorption of sulphur and chlorine compounds

Materials and surfaces
