Description

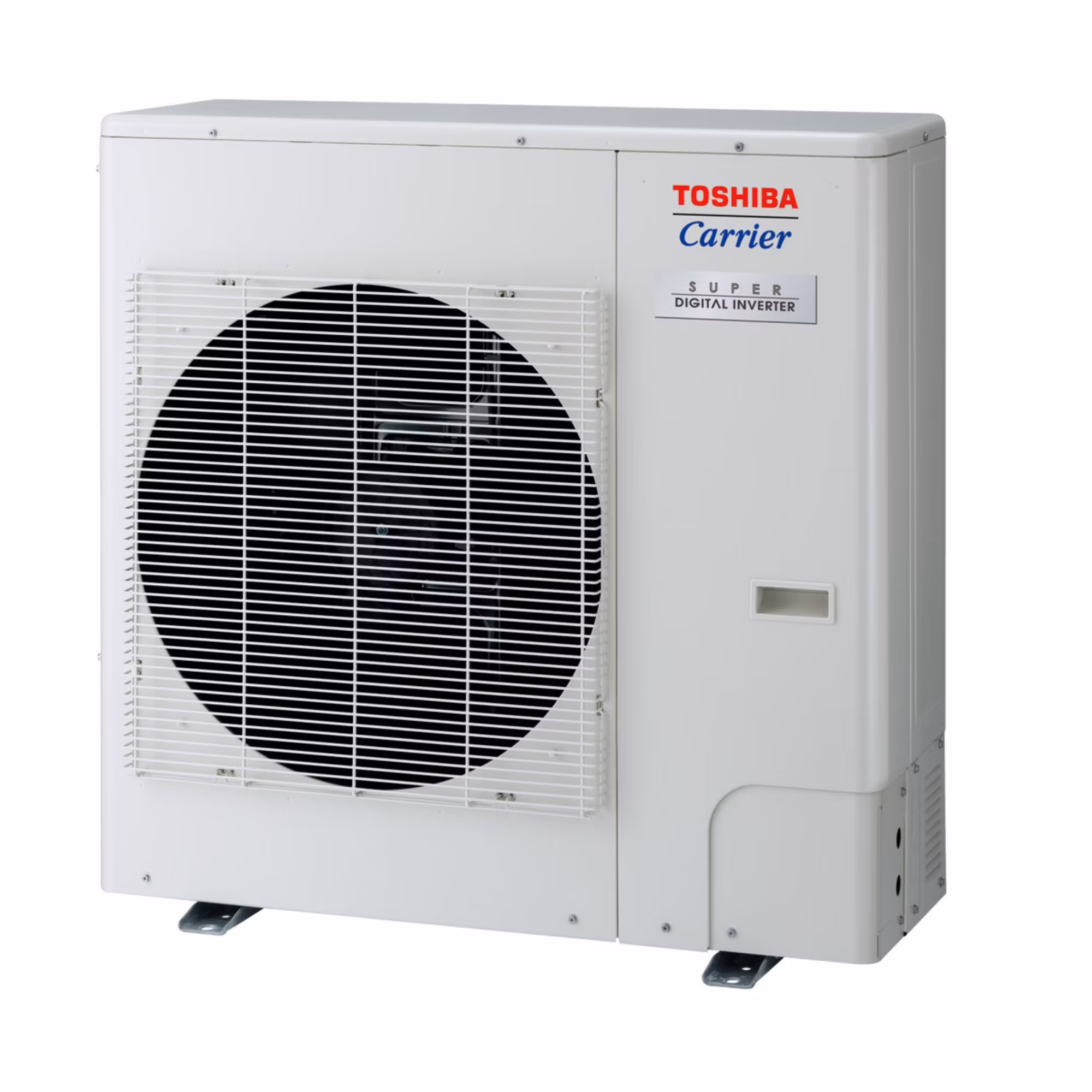

RAV-SP180AT2-UL Carrier Toshiba Ductless 18,000 Btu Heat Pump Single-Zone Inverter 208/230-1 – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Ductless split systems are a matched combination of an outdoor condensing unit and an indoor fan coil unit connected only by refrigerant tubing and wires.
The RAVAT condensing unit is matched with the RAVUT in-ceiling cassette fan coil, the RAVKR high wall fan coil, or the RAVCT underceiling fan coil.
RAVAT Features When Matched with RAVUT
- Up to 21.0 SEER, up to 11.9 HSPF
- Digital inverter compressor technology (18-42K BTUH)
- Line length up to 245 ft.
- Optional fresh air intake
- Built-in condensate pump
- Independent louver control (fixed or swing)
- Optional wired or wireless controller
- Power saving mode
- Quiet operation
- Diagnostics
- Low-ambient cooling down to 5° F
- Filter maintenance indicator
- Clean mode
RAVAT Features When Matched With RAVKR
- Up to 19.5 SEER, up to 9.8 HSPF
- Digital inverter compressor technology (18-24K BTUH)
- Line lengths up 165 ft.
- Wi
| Attributes | |
|---|---|
| Brand | Toshiba Carrier |
| Color | White |
| Cooling Capacity | 19,000 |
| Cooling Rated Capacity (Btu/h) | 19000 |
| Country of Origin | USA |
| Cubic Measurement | 4.395 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 54 |
| EER | 10.7 |
| Energy Star Rated | NO |
| HSPF | 11.5 |
| Heating Capacity | 18,800 |
| High Heat | NO |
| Liquid Line Fitting Type | Flare |
| Liquid Line Size (OD) | 1/4″ |
| Maximum Overcurrent Protection (MOCP) | 30 |
| Maximum Piping Height | 98.5 |
| Maximum Piping Length | 164′ 1″ |
| Number of HVAC Zones | 1 |
| OPT Code | 1PRAV-SP180AT2-UL |
| Phase | Single |
| Product Family | RAV |
| Prop 65 | YES |
| Rated Current Amps (RCA) | 17 |
| Refrigerant | R-410A |
| Refrigerant Charge | 3.1 |
| SEER | 20.5 |
| Stages Cooling | 1 |
| Stages Heating | 1 |
| Suction Line Fitting Type | Flare |
| Suction Line Size (OD) | 1/2″ |
| Tonnage | 1.5 |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230 VAC |
