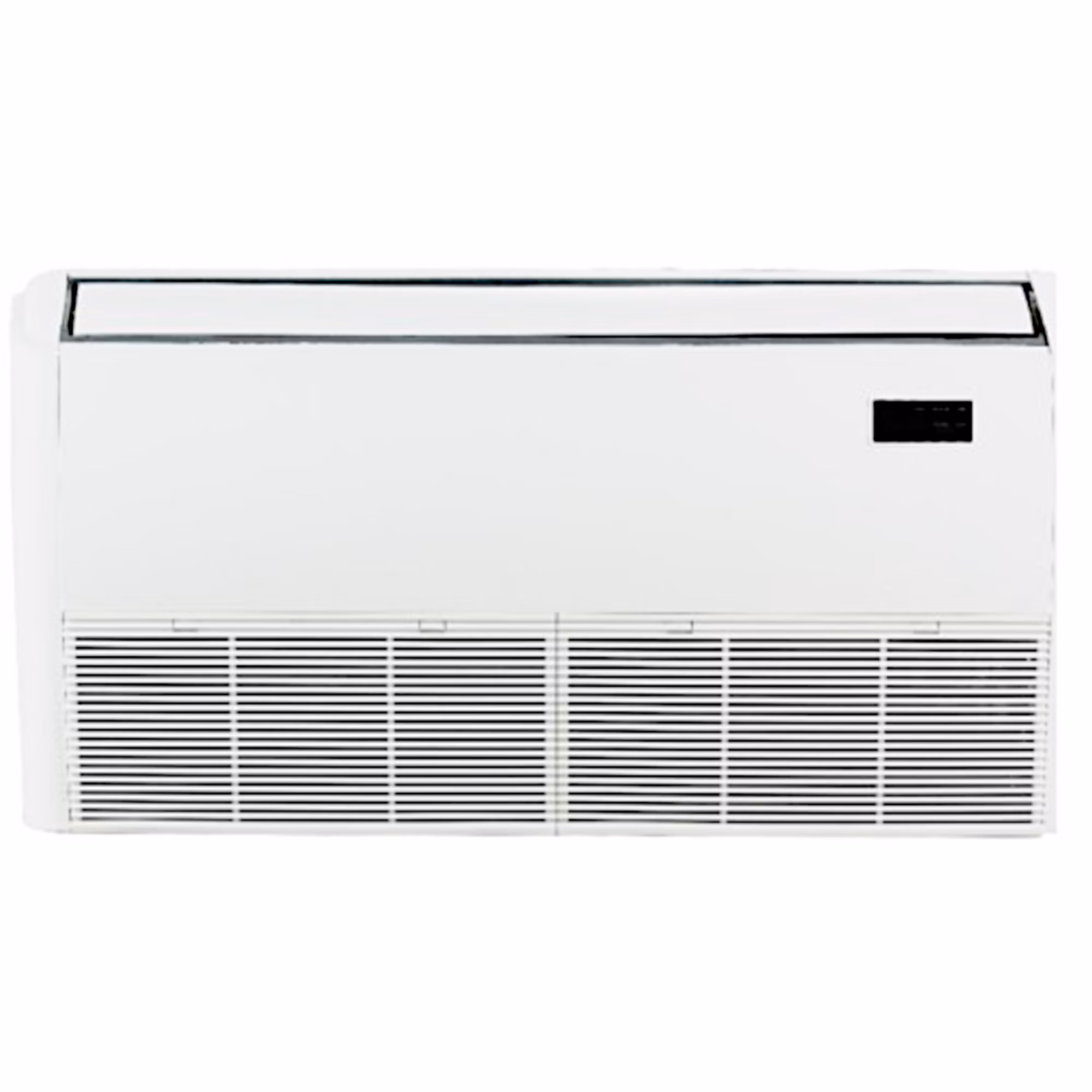

45MCFAQ36XA3 Ductless 36000 Btuh Ceiling/Floor Heat Pump Indoor Unit R-454B (208/230-1) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
45MCFAQ36XA3
FEATURES & BENEFITS
- Sizes: 18 / 24 / 36 / 48 / 58
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Auto-restart function
- Louver control (fixed or swing)
- Humidity control
- Vertical swing
- Refrigerant leak detection system
- Three fan speeds
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 29 decibels1
- Anti-corrosive fin coating
| Attributes | |
|---|---|
| Approvals | ETL Listed |
| Blower Motor HP | 1/20 |
| Blower Motor RPM | 930-1,110 |
| Blower Motor Speeds | 3 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Motor Watts | 53 |
| Blower Wheel Diameter | 6 1/10 |
| Blower Wheel Width | 6 2/5 |
| Brand | Carrier®, Bryant® |
| CFM | 653.35-1,224.29 |
| CFM Heating | 653.35-1,224.29 |
| Color | Gray |
| Cooling Capacity | 36,000 |
| Cooling Rated Capacity (Btu/h) | 36000 |
| Country of Origin | CHN |
| Cycle/Hertz | 60 Hz |
| Energy Star Rated | YES |
| Evaporator Coil Fins per Inch (FPI) | 20 |
| Heating Capacity | 36,000 |
| Liquid Line Fitting Type | Flare |
| Liquid Line Size (OD) | 3/8″ |
| Metering Device | EEV – Electronic Expansion Valve |
| Mounting Type | Ceiling Cassette; Floor Console |
| Multi Zone | NO |
| OPT Code | 1P45MCFAQ36XA3 |
| Phase | Single |
| Product Family | 45MCFA |
| Prop 65 | YES |
| Refrigerant | R-454B |
| Remote Control Included | YES |
| Sound Level (dBA) | 35-51 |
| Suction Line Fitting Type | Flare |
| Suction Line Size (OD) | 3/4″ |
| Tonnage | 3 |
| Voltage | 208-230 VAC |
