Description
Factory Authorized Parts – 58MV660003 Direct Drive Blower Motor 3.0 ECM 1 HP 120/240 V 12.8/7.4 Amp 1050 RPM – E:Mail: sales@walkair.us to confirm availability or for volume discounts

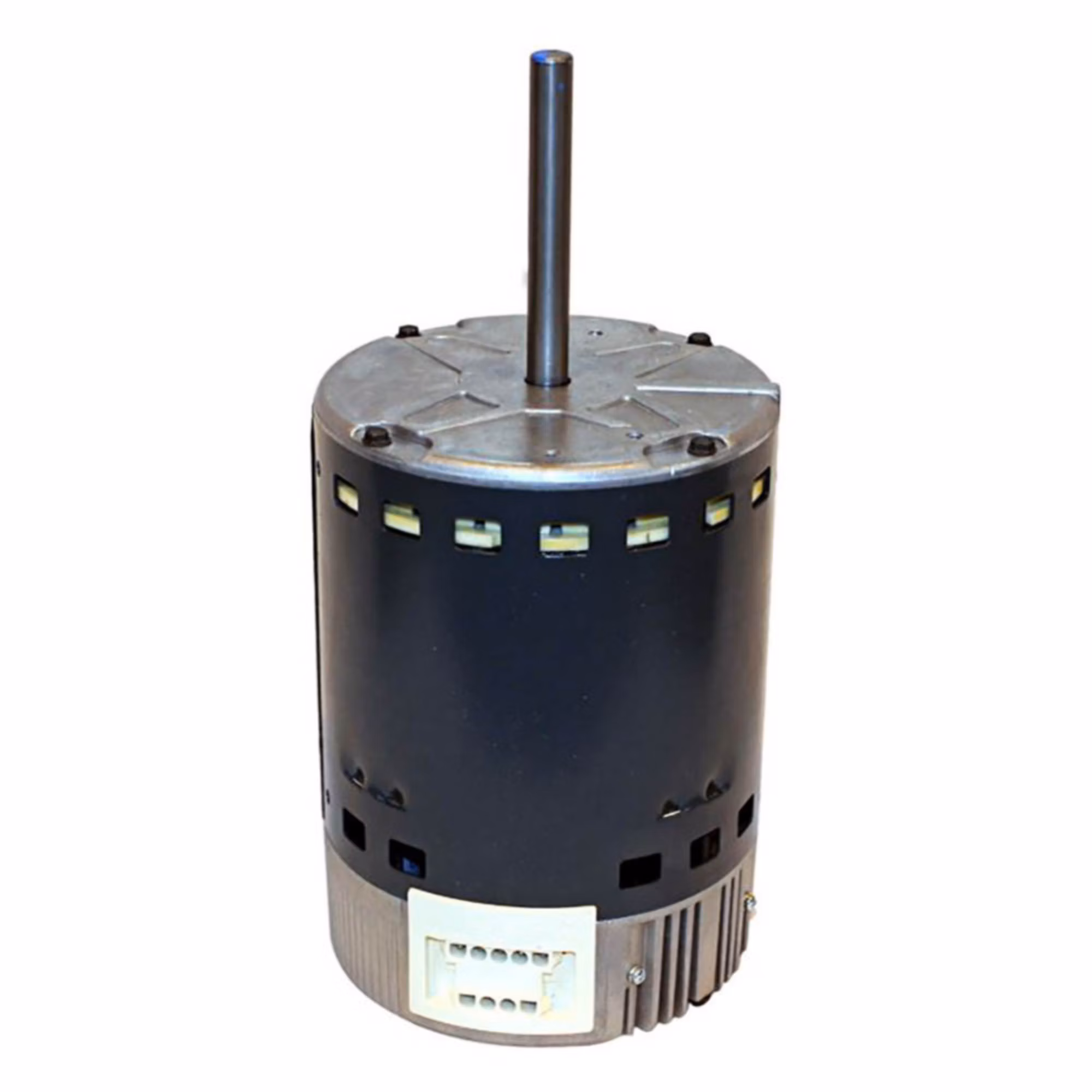

Factory Authorized Parts™ – 58MV660003 Direct Drive Blower Motor 3.0 ECM 1 HP 120/240 V 12.8/7.4 Amp 1050 RPM
Includes: Harness and Module
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Amps | 7.4-12.8 |
| Approvals | CSA Listed |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.4105 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00822529338989 |
| Insulation Class | F |
| Motor HP | 1 |
| Motor Type | ECM (Electronically Commutated Motor) |
| Mounting Type | Vertical Shaft Down |
| NEMA Frame | 39 |
| Phase | Single |
| Prop 65 | NO |
| RPM | 1,050 |
| Rotation | Reversible |
| Shaft Diameter | 1/2″ |
| Shaft Length | 3 15/16″ |
| UOM | EA |
| UPC | 822529338989 |
| Voltage | 120/240 VAC |
