Description

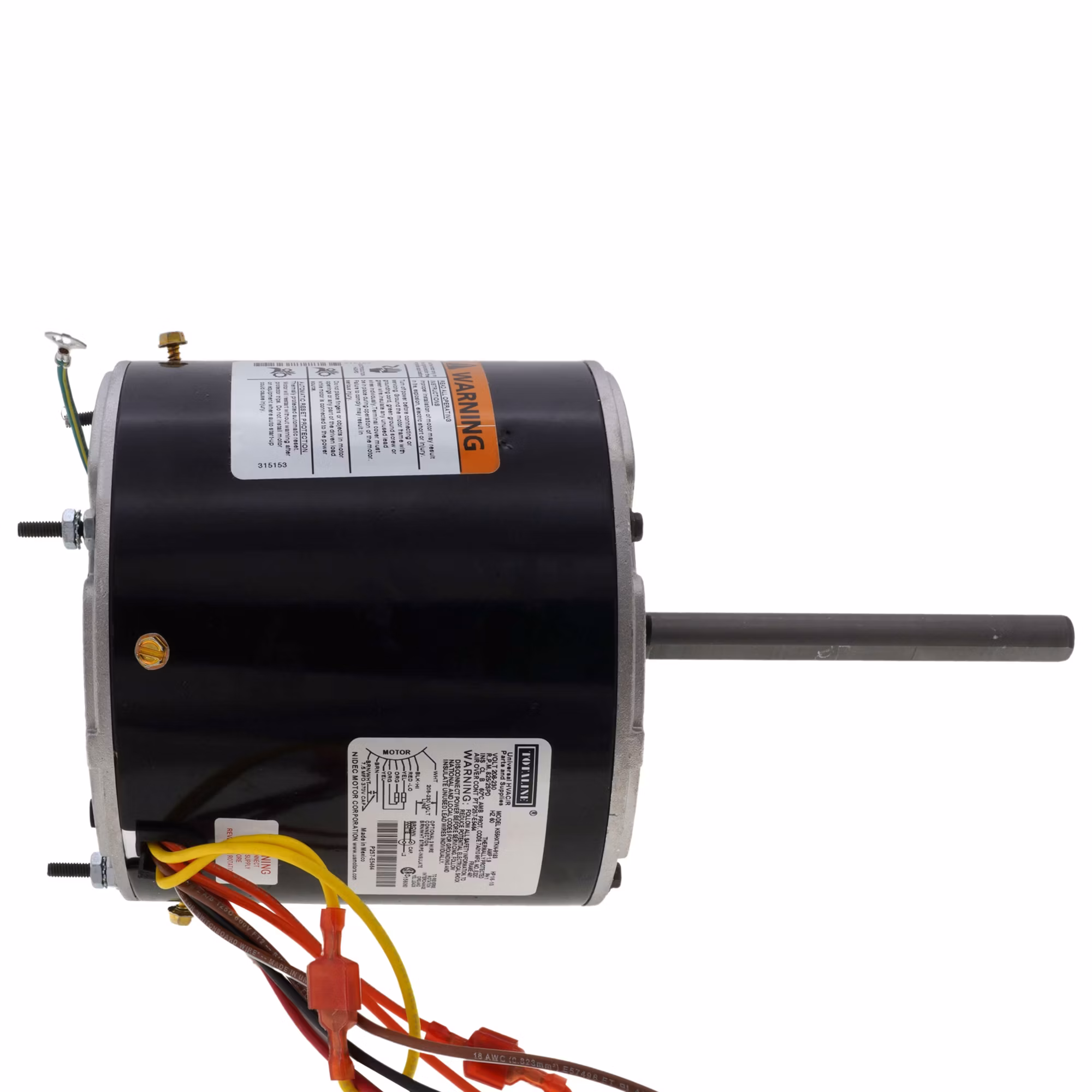

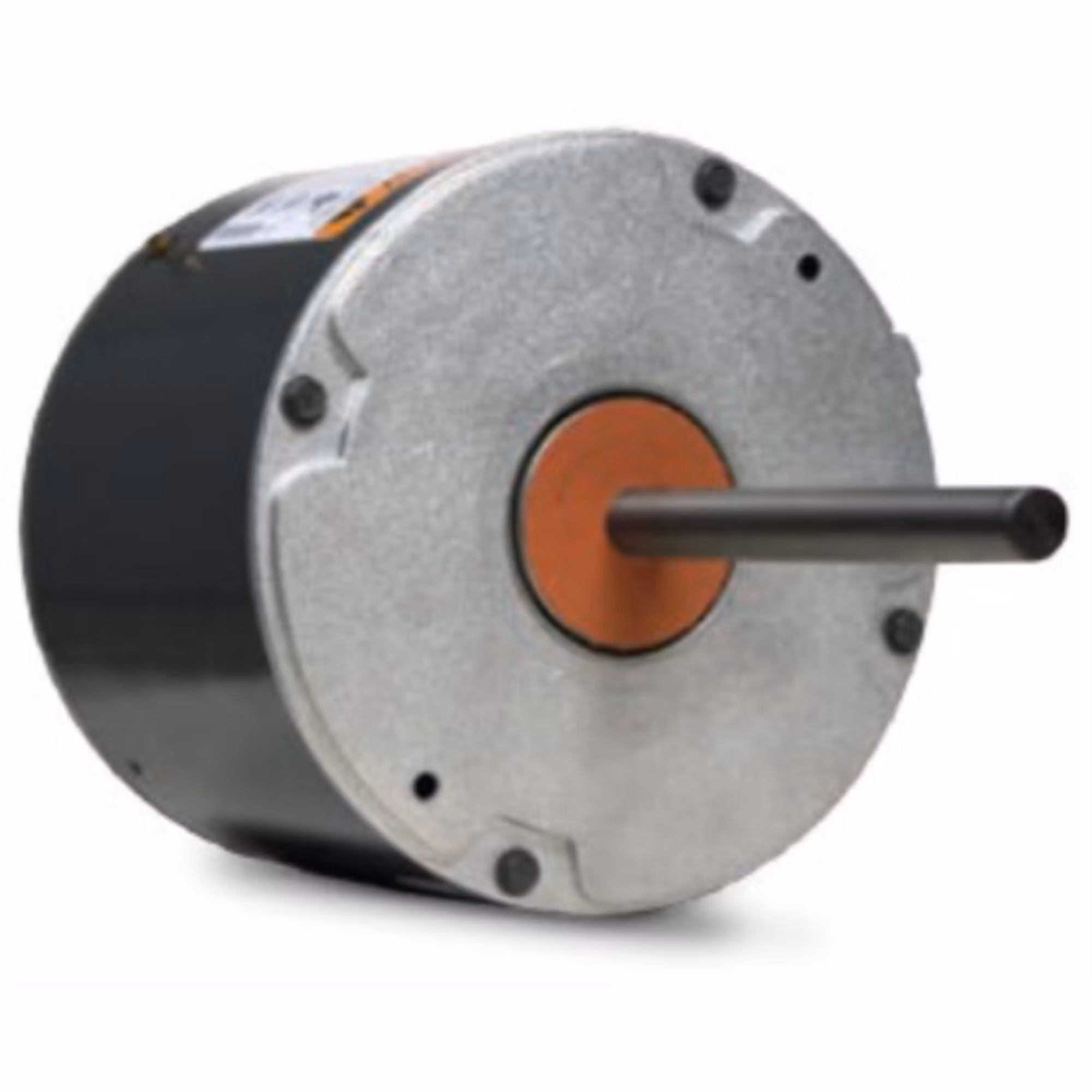

Totaline – P257-E5464 Condenser Fan Motor Multi-Horsepower 1/6 – 1/3 HP 208/230V 2.55 FLA 825 RPM 2-Speed – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Totaline – Totaline Condenser Fan Motors are designed as a universal PSC replacement for vertical shaft- up or shaft-down applications. Shell and end shields are closed for protection against weather. All Totaline Condenser Fan Motors feature reversible rotation and thru bolt or band mounting for air conditioning or heat pump applications.
- 48Y NEMA frame
- 1-year warranty
- 208 – 230 VAC
- 1/6 – 1/34 HP
- Single phase
- 825 RPM
| Attributes | |
|---|---|
| Amps | 2.55 |
| Approvals | CSA Listed; UL Listed |
| Bearing Type | Ball |
| Brand | TOTALINE® |
| Capacitor MFD (µF) | 7.5 |
| Country of Origin | MEX |
| Cubic Measurement | 0.2028 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 1.9 |
| GTIN | 00662442538901 |
| Insulation Class | B |
| Motor Enclosure | Totally Enclosed Air Over (TEAO) |
| Motor HP | 1/6 – 1/3 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Base, Stud, Strap |
| NEMA Frame | 48 |
| Number of Speeds | 2 |
| Phase | Single |
| Prop 65 | NO |
| Protection | No |
| RPM | 825 |
| Rotation | Reversible |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 5 |
| UOM | EA |
| UPC | 662442538901 |
| Voltage | 208-230 VAC |
