Description
P257-FLEX1373 Totaline X13 Flex Blower Motor 1/2 – 1/3 HP 208/230V ECM (Replaces ECM X13 Constant Torque Blower Motors) – E:Mail: sales@walkair.us to confirm availability or for volume discounts

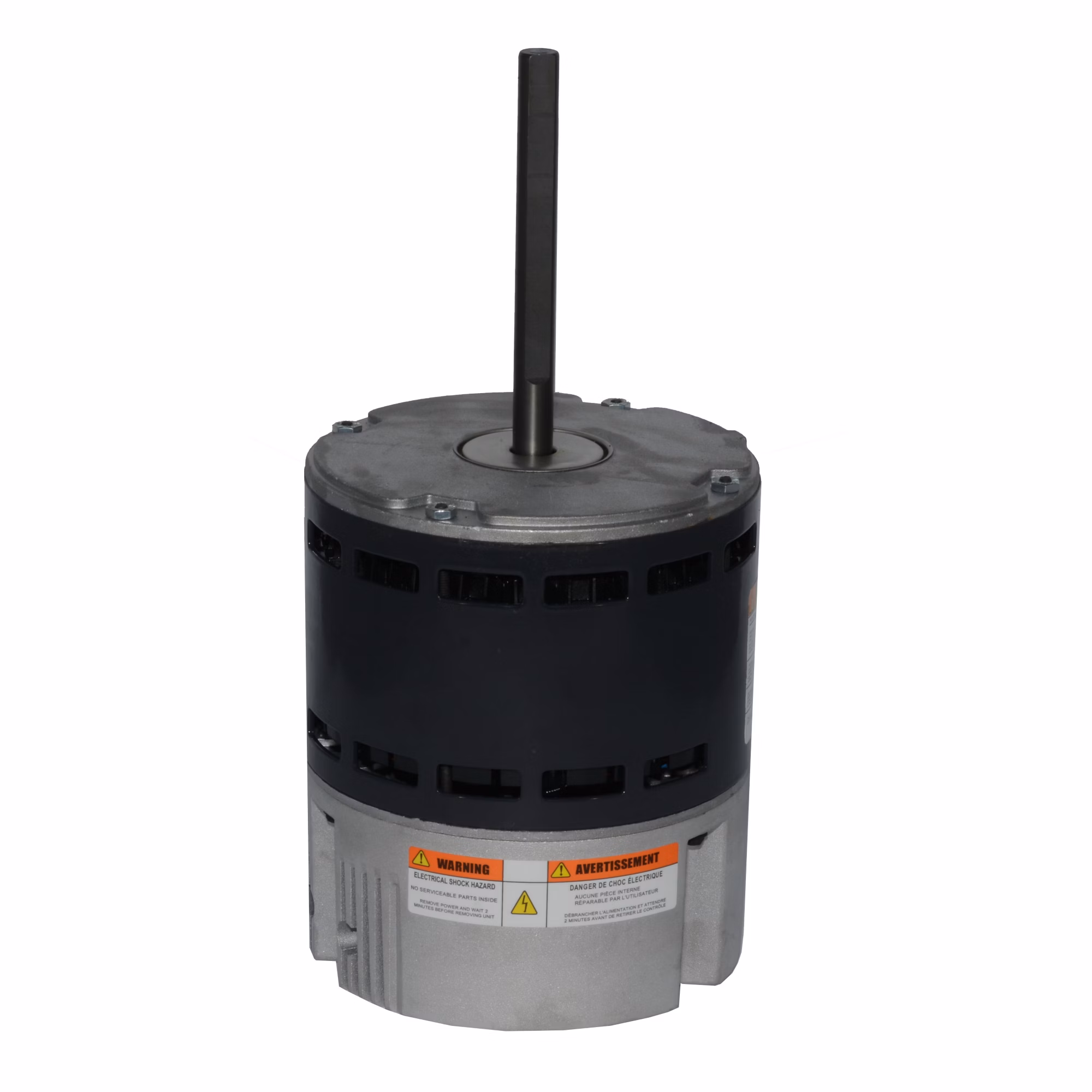

Totaline – P257-FLEX1373 X13 Motor 1/2-1/3HP (208-230V)
- Easy Install – Match Horsepower and Voltage
- Automatic Dual Rotation
- 48 Frame, UL and CSA Approved
- Uses existing OEM Harness
The Totaline Five-Point Certification
- Performance Verification – RPMs, amps, rotation, temperature rise and capacitor voltage are all validated
- Design Life: Manufactured to precise specs for a lifespan of 10+ years with proper installation
- Shipping & Packaging: Tested to ensure minimal vibration and maximum impact resistance during transit
- Load Rating: Thoroughly tested to ensure reliability under maximum load conditions
- Safety: UL & CSA certified with all code requirements met
| Attributes | |
|---|---|
| Amps | 3.6-4.2 |
| Approvals | CSA Listed; UL Listed; UL Recognized |
| Bearing Type | Ball |
| Brand | TOTALINE® |
| Country of Origin | MEX |
| Cubic Measurement | 0.4395 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00822529822884 |
| Insulation Class | B |
| Motor Enclosure | Open |
| Motor HP | 1/3 – 1/2 |
| Motor Type | ECM (Electronically Commutated Motor) |
| Mounting Type | Mounting Bracket or any 48 Frame Mount |
| NEMA Frame | 48Y |
| Number of Speeds | 5 |
| Phase | Single |
| Prop 65 | NO |
| RPM | 1,050 |
| Rotation | Reversible |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 5.5 |
| UOM | EA |
| UPC | 822529822884 |
| Voltage | 208-230 VAC |
