General Information
Application

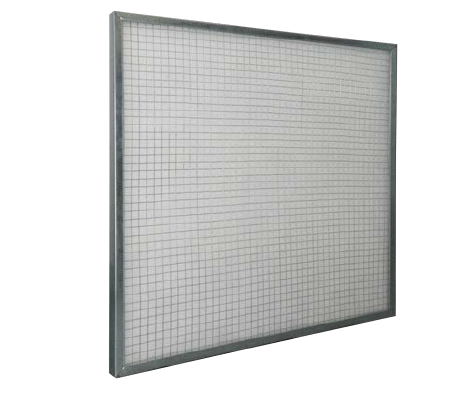

- Frame filter for separating coarse and fine dust in ventilation and air conditioning systems, ceiling and wallmounted air conditioning units and fan coil units
Special characteristics
- Frame filter with replaceable filter medium
- Sturdy galvanised frame
- Wire mesh on the downstream side for high operational safety
- Fixing with steel clamp on the upstream side
- Easy replacement of the filter medium
Nominal sizes
- B × H × T [in]
Filter classes
Filter group
- ISO Coarse according to DIN EN ISO 16890
- ISO ePM10 according to DIN EN ISO 16890
Filter class
- Coarse 35 %
- Coarse 40 %
- Coarse 45 %
- Coarse 50 %
- Coarse 55 %
- Coarse 60 %
- Coarse 65 %
- Coarse 70 %
- ePM10 45 %
- ePM10 55 %
- ePM10 60 %
Construction
- GAL: Frame made of galvanised steel
- STA: Frame made of stainless steel
- Available in depths of 0.4, 0.5, 1, 1.9, 3.8 in (depending on the filter medium)
Construction features
- Galvanised steel filter frame
- Optional stainless steel frame
- Available in various filter classes and sizes, including commercial installation depths and cross-sections
- Filter media made of high-quality non-woven glass fibres, synthetic fibres or activated carbon
- Optionally with flat seal¹:
- WS: without seal
- FNU: Flat seal on the upstream side
- FND: Flat seal on the downstream side
- FNB: Flat seal on both sides
- FNA: Flat seal around the frame
- FNL: Flat seal on the long side
- FNS: Flat seal on the short side
¹ For more information on optional flat profile seals, see product details.
