General Information
Application
- Filter media type FMP for the separation of coarse and fine dust in ventilation and air conditioning systems
Nominal sizes
- B × L [in]
Filter classes
Filter groups
- ISO Coarse according to DIN EN ISO 16890
- ISO ePM10 according to DIN EN ISO 16890
Filter classes
- Coarse 10 % (P01)
- Coarse 20 % (P02)
- Coarse 35 % (C04, C51, G51)
- Coarse 40 % (G53)
- Coarse 45 % (C15, C52)
- Coarse 50 % (C11, C58, G02, G52, G54)
- Coarse 55 % (G63)
- Coarse 60 % (C13, C54, C57, G64)
- Coarse 65 % (A01, C59)
- Coarse 70 % (G62)
- ePM10 50 % (C55)
- ePM10 55 % (C06)
- ePM10 60 % (C56)
- ePM10 75 % (C53)
Media type
- A01: Activated carbon medium (0.4 in thick)
- C04: Chemical fibre medium (0.6 in thick)
- C06: Chemical fibre medium (0.9 in thick)
- C11: Chemical fibre medium (0.8 in thick)
- C13: Chemical fibre medium (0.3 in thick)
- C15: Chemical fibre medium (0.8 in thick)
- C51: Chemical fibre medium (0.1 in thick)
- C52: Chemical fibre medium (0.02 in thick)
- C53: Chemical fibre medium (0.2 in thick)
- C54: Chemical fibre medium (0.6 in thick)
- C55: Chemical fibre medium (0.9 in thick)
- C56: Chemical fibre medium (0.9 in thick)
- C57: Chemical fibre medium (0.7 in thick)
- C58: Chemical fibre medium (0.3 in thick)
- C59: Chemical fibre medium (0.4 in thick)
- G02: Glass fibre medium (2 in thick)
- G51: Glass fibre medium (1 in thick)
- G52: Glass fibre medium (2 in thick)
- G53: Glass fibre medium (3 in thick)
- G54: Glass fibre medium (4 in thick)
- G62: Glass fibre medium (2 in thick)
- G63: Glass fibre medium (3 in thick)
- G64: Glass fibre medium (4 in thick)
- P01: Foam medium (0.2 in thick)
- P02: Foam medium (0.4 in thick)
Construction

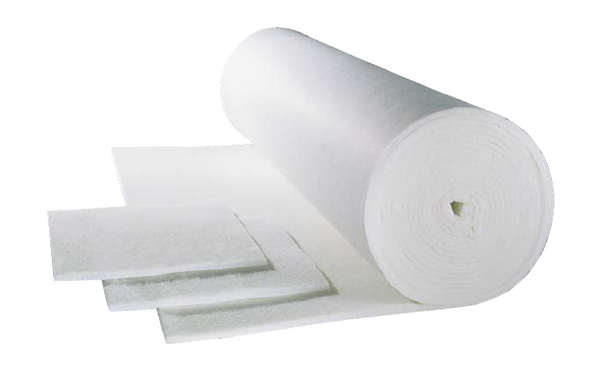

- PAD: Cut-to-size filter pads
- ROL: Roll filter media
Construction features
- Filter media made of glass fibre fleece wetted with dust binding agent
- Increased separation efficiency
- No drifting of dust that has already been deposited
- Filter media available in standard and special sizes: roll media, cut-to-size pads
Material and surfaces
- Filter media made of high-quality non-woven chemical fibres or glass fibre fleece
Standards and guidelines
- Tested according to ISO 16890; international standard for general ventilation and air conditioning; classification of seperation efficiency based on the measured fractional seperaftion efficiency, which is processed into a reporting system for the fine dust separation efficiency (ePM)
- For coarse dust filters, the average separation efficiency is measured with synthetic dust
- The filters are classified into filter group ISO Coarse depending on the tested values
- For fine dust filters, the fractional efficiency of a certain size range is determined by aerosols (DEHS and KCl)
- Depending on the test values, the filters are classified into the filter groups ISO ePM10
