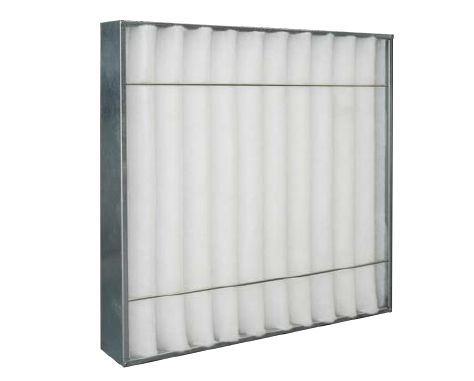

TROX IFP

Call for Price

FOR HIGH DUST CONCENTRATIONS OR AS A PRE-FILTER FOR FINE DUST FILTERS

Metal frame filter for separating coarse dust in ventilation or air conditioning units and as a pre-filter for high-quality filter stages

Filter group ISO Coarse (coarse dust filter)
Filter group ISO ePM10 (fine dust filter)
Pre-filter with replaceable filter medium

Type

Classification

Separation efficiency

Media type

Construction

Construction Separation [in]

Nominal size [in]

Seal

Category: Filter Media Tag: IFP

General Information

Application

Frame filter for separating coarse and fine dust in ventilation and air conditioning systems

Special characteristics

Solid frame construction
Metal spacers for guiding the filter medium
Frame filter with replaceable filter medium
Wire mesh on the downstream side
Fixation of the filter medium on the upstream side using pressure springs

Nominal sizes

B × H × T [in]

Filter classes

Filter groups

ISO Coarse according to DIN EN ISO 16890
ISO ePM10 according to DIN EN ISO 16890

Filter classes

Coarse 60 %
ePM10 50 %

Construction

GAL: Frame galvanised steel (depth 2, 4 in)

Options

Optionally with flat seal1
WS: without seal
FNU: Flat seal on the upstream side
FND: Flat seal on the downstream side
FNB: Flat seal on both sides
FNA: Flat seal continuous
FNL: Flat seal on long side
FNS: Flat seal on short side

1 For more information on optional flat seals, see product details.

Construction features

Filter media made of high-quality non-woven synthetic fibres

Specification Text

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product Finder design programme.

Specification text

Frame filter for separating coarse and fine dust in ventilation and air conditioning systems. With solid galvanised steel or stainless steel frame. Filter media made of high-quality non-woven synthetic fibres. Optionally with flat seal. Available in various filter sizes and 2 installation depths. Filter groups ISO Coarse and ISO ePM10 according to DIN EN ISO 16890.

Special characteristics
