Description

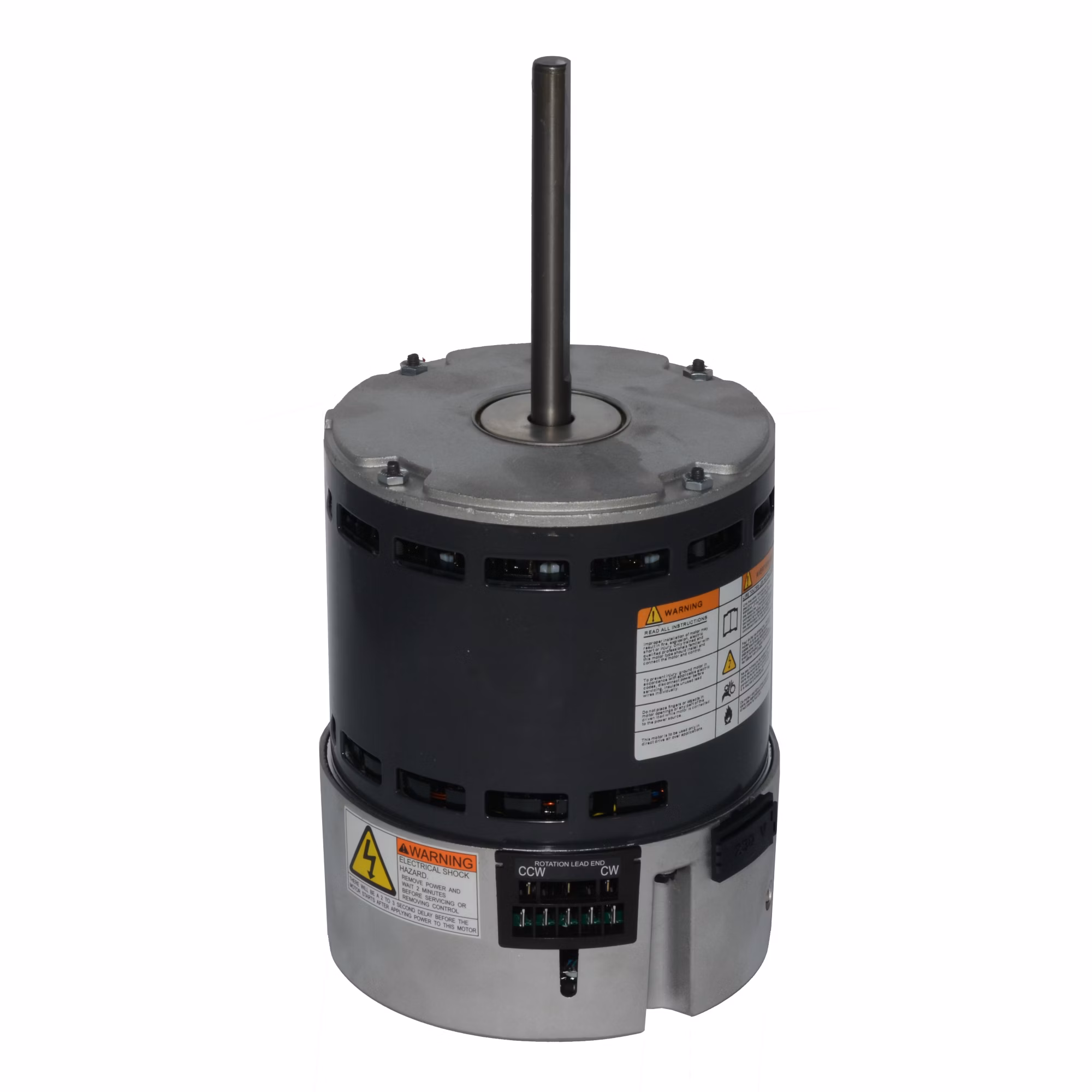

Totaline PSC to ECM Flex Motor 1 – 3/4HP 115/208-230V – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Totaline – P257-FLEXPSC41 ECM for PSC 3/4 – 1 HP
- Connects directly to standard PSC furnace and air-handler boards– fits wide variety of direct drive blower motor applications
- 2 Multi-HP Models Available
- Dual Voltage 115-230V Single Phase
- High Efficiency Design (ECM is 82% efficient versus standard PSC at 60%)
Upgrade to Constant Airflow with these benefits:
- Helps with better air filtration
- Allows for additional IAQ solutions
- Provides more even temperatures in the home, reducing room temperature differences by 3°-6
The Totaline Five-Point Certification
- Performance Verification – RPMs, amps, rotation, temperature rise and capacitor voltage are all validated
- Design Life: Manufactured to precise specs for a lifespan of 10+ years with proper installation
- Shipping & Packaging: Tested to ensure minimal vibration and maximum impact resistance during transit
- Load Rating: Thoroughly tested to ensure reliability
| Attributes | |
|---|---|
| Amps | 8-11 |
| Approvals | CSA Listed; UL Listed; UL Recognized |
| Bearing Type | Ball |
| Brand | TOTALINE® |
| Country of Origin | MEX |
| Cubic Measurement | 0.4395 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00822529822846 |
| Insulation Class | B |
| Motor Enclosure | Open |
| Motor HP | 3/4 – 1 |
| Motor Type | ECM (Electronically Commutated Motor) |
| Mounting Type | Mounting Bracket or any 48 Frame Mount |
| NEMA Frame | 48Y |
| Number of Speeds | 5 |
| Phase | Single |
| Prop 65 | NO |
| RPM | 1,075 |
| Rotation | Reversible |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 5.5 |
| UOM | EA |
| UPC | 822529822846 |
| Voltage | 115 VAC; 208-230 VAC |
