Description

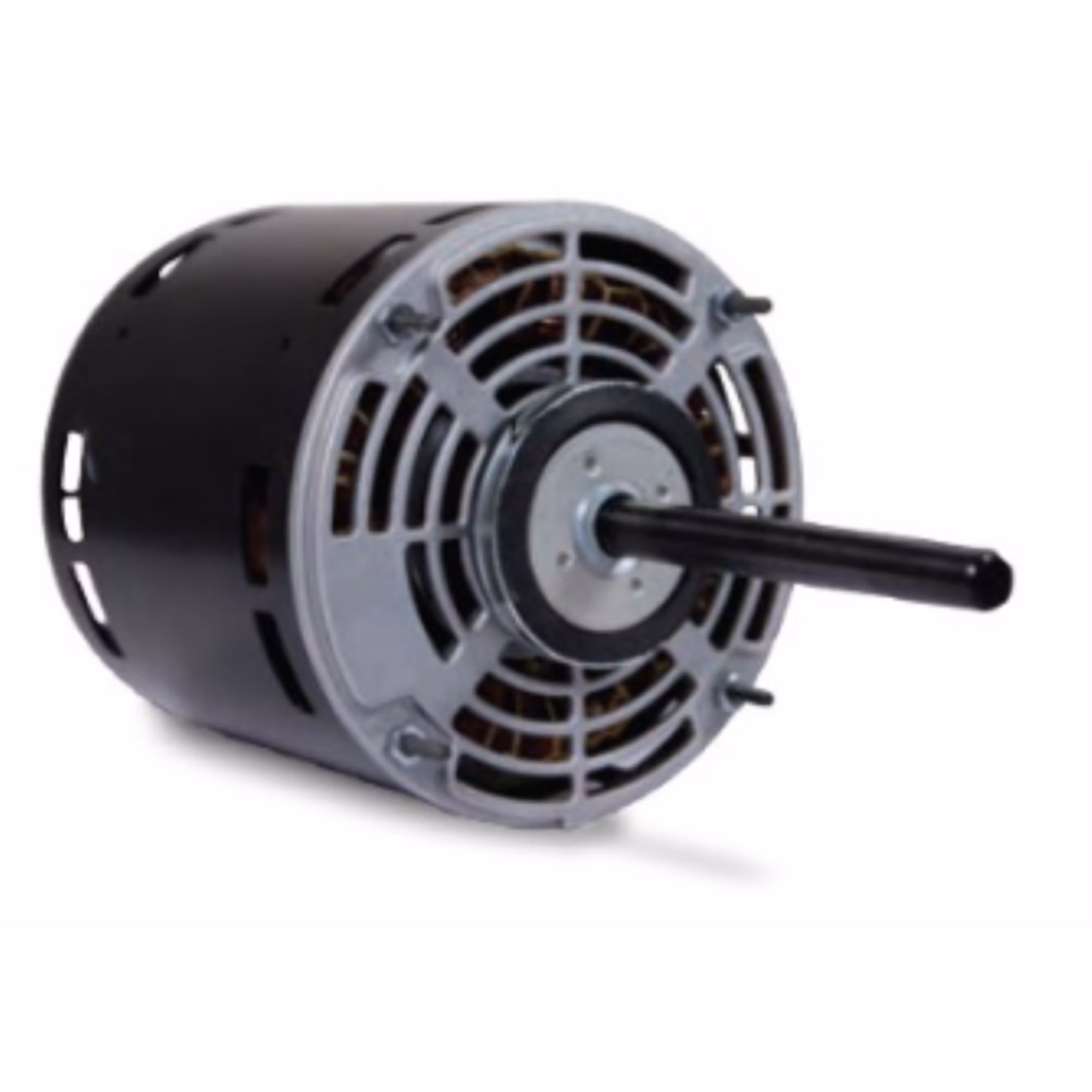

Totaline – P257-8585 Direct Drive Blower Motor 1/3 HP 115V 5.0 FLA 1075 RPM 3-Speed – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Totaline – Totaline Direct Drive Blower Motors are three speed standard efficiency, reversible rotation with extended thru bolts and resilient rings for base mounting. These models have open air enclosures and feature shell mounting holes for universal replacement of non-ventilated motors for exhaust, air circulators, unit heaters, unit coolers, and other air-over applications
- 48Y NEMA frame
- 1-year warranty
- 115 VAC
- 1/3 HP
- Single phase
- 1075 RPM
| Attributes | |
|---|---|
| Approvals | CSA Listed; UL Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Self Aligning (SAB) |
| Brand | TOTALINE® |
| Country of Origin | MEX |
| Cubic Measurement | 0.1977 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 4 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00662441013300 |
| Insulation Class | B |
| Motor Enclosure | Open Air Over (OPAO) |
| Motor HP | 1/3 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Extended Thru Bolt, 2.5″ Resilient Rings |
| NEMA Frame | 48 |
| Number of Speeds | 3 |
| Phase | Single |
| Prop 65 | NO |
| RPM | 1,075 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 4 |
| UOM | EA |
| UPC | 662441013300 |
| Voltage | 115 VAC |
