Description

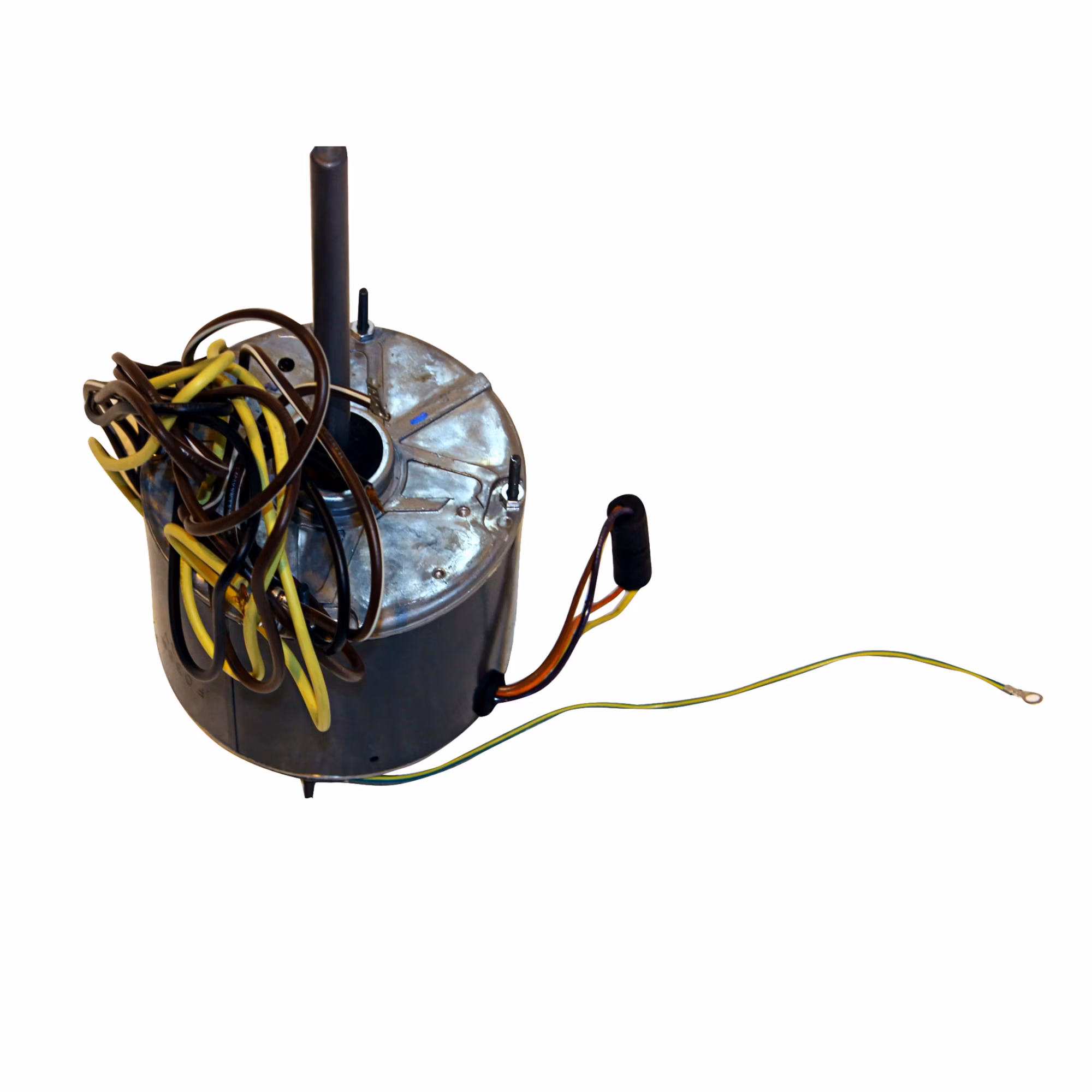

Totaline – P257-3736HS High Temperature Condenser Fan Motor 1/4 HP 460V 1075 RPM – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Totaline® – Totaline motors are subject to rigorous testing, and are engineered to provide you with a superior product that you can rely on to provide continuing comfort. Totaline offer a quality lineup of motors that you can easily stock your truck with, so that you’re prepared for any HVAC emergency.
- 48Y NEMA frame
- 1-year warranty
- 460 VAC
- 1/4 HP
- Single phase
- 1075 RPM
| Attributes | |
|---|---|
| Amps | 0.8 |
| Approvals | CSA Listed; UL Listed; UL Recognized |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | TOTALINE® |
| Capacitor MFD (µF) | 7.5 |
| Country of Origin | MEX |
| Cubic Measurement | 0.2433 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 4 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 0.8 |
| GTIN | 00822529625768 |
| Insulation Class | F |
| Motor Enclosure | Totally Enclosed Air Over (TEAO) |
| Motor HP | 1/4 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Base, Stud, Strap |
| NEMA Frame | 48 |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | Automatic Reset Thermal Overload Protector |
| RPM | 1,075 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 6 |
| UOM | EA |
| UPC | 822529625768 |
| Voltage | 460 VAC |
