Description

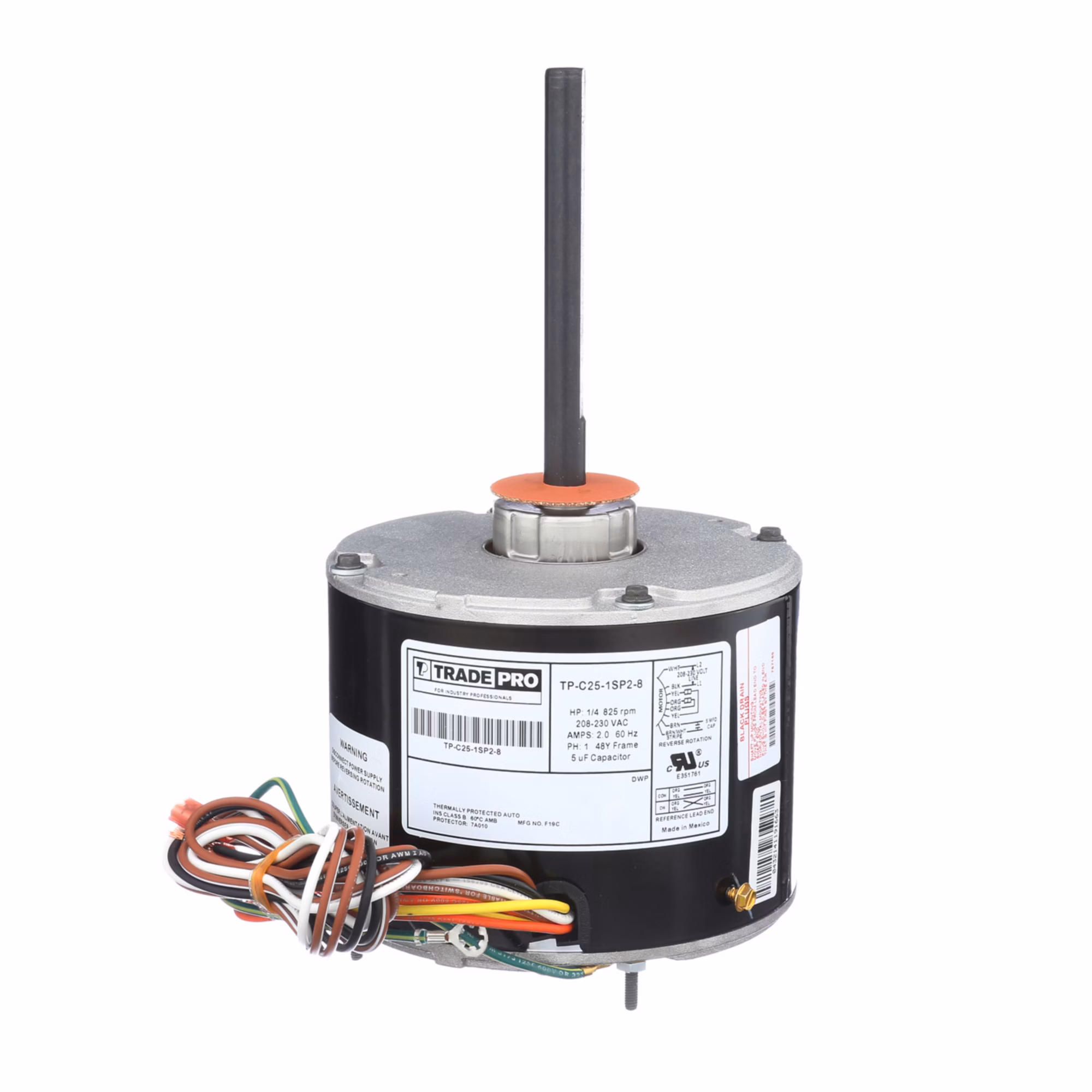

TP-C25-1SP2-8 TRADEPRO – Condenser Fan Motor 1/4 HP 208/230V 825 RPM 1-Speed – E:Mail: sales@walkair.us to confirm availability or for volume discounts
TRADEPRO? motors are 100% functionally tested during manufacturing and then retested after final assembly for everything from input power to Hi-Pot and continuity testing. For those who prefer a fixed fractional design, TRADEPRO? fixed fractional motors offers the same ideal combination of heavy duty construction and rugged durability you’d expect from the TRADEPRO? brand.
- Universal fixed fractional condenser motor
- 208 – 230V
- Single phase
- 1.4 amp
- 48Y frame
- 5″ keyed shaft
- 1/2″ diameter
- 10MF 370 or 440V capacitor
- Mounts in any position
- Side shell mount is pre-drilled to accept Rheem mounting plate, end plate drilled to accept Rheem or Trane mounts
- Dynamic self-aligning bearing with reversible direction
| Attributes | |
|---|---|
| Amps | 1.4 |
| Approvals | UL Recognized |
| Basis Of Rotation View | Lead End |
| Bearing Type | Self Aligning (SAB) |
| Brand | TRADEPRO? |
| Capacitor MFD (?F) | 10 |
| Country of Origin | MEX |
| Cubic Measurement | 0.0889 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 4 |
| Duty | (S1) Continuous Running Duty |
| EAN | 0816075029675 |
| Full Load Amps | 1.4 |
| Insulation Class | B |
| Motor Enclosure | Totally Enclosed Air Over (TEAO) |
| Motor HP | 1/4 |
| Motor Type | PSC (Permanent Split Capacitor) |
| NEMA Frame | 48Y |
| Number of Speeds | 1 |
| Phase | Single |
| Poles | 6 |
| Prop 65 | NO |
| Protection | Yes |
| RPM | 1,075 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 5″ |
| UOM | EA |
| UPC | 816075029675 |
| Voltage | 208-230 VAC |
