Description
KSACN0601AAA Wired Remote Controller – 7 Day Programmable – E:Mail: sales@walkair.us to confirm availability or for volume discounts

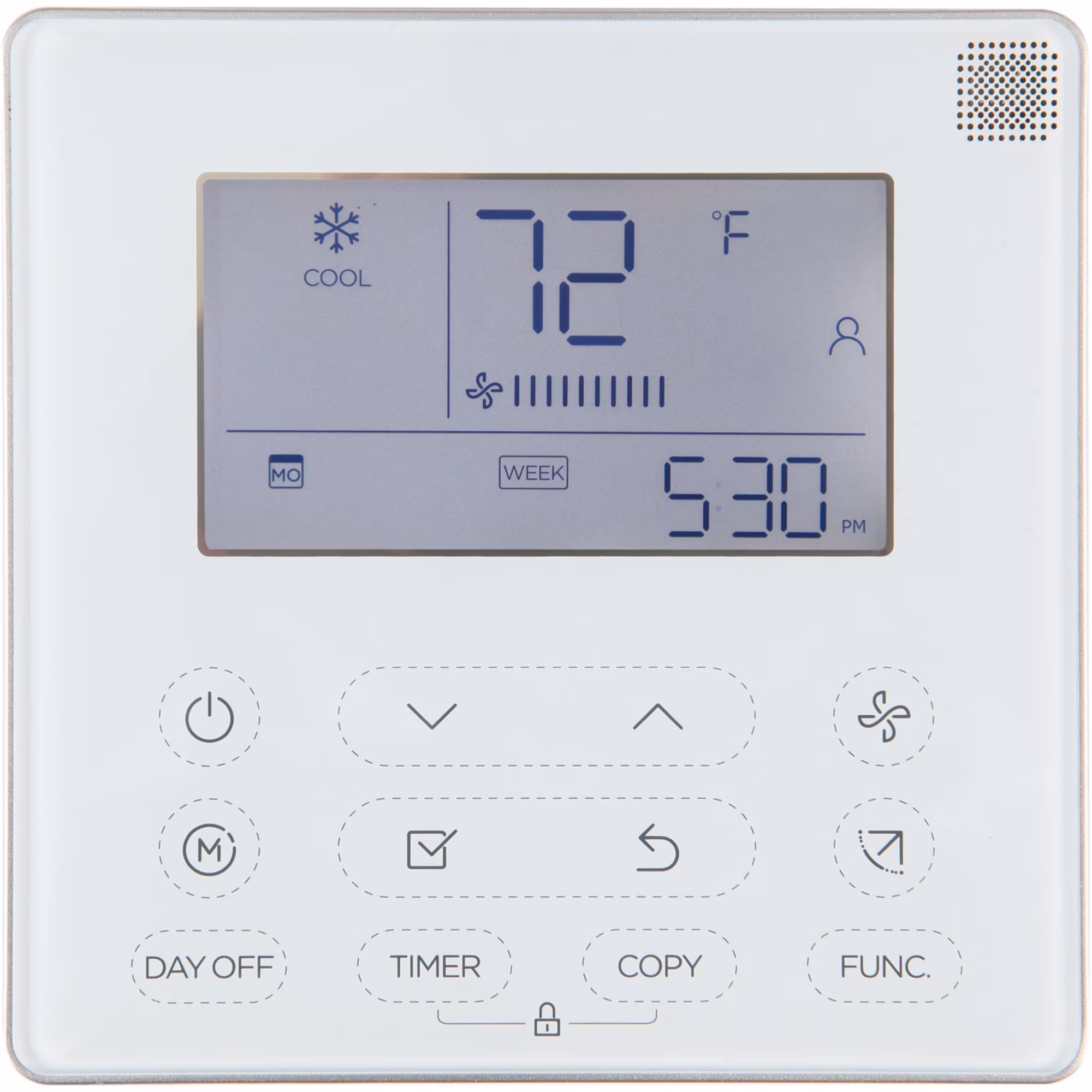

KSACN0601AAA – Wired Remote Controller – 7 Day Programmable
Features:
- LCD Display
- °F/°C Convertible
- Backlight display
- Follow Me default, temperature sensing on the controller
- 4-wire quick connect
- Room temperature display
- Troubleshooting error code display
- Infrared IR receiver built-in
- Clock
- 12 HR format (am/pm)
Functions:
- Weekly Schedule 7 day programmable
- Mode: Auto-Cool-Dry-Heat-Fan
- Operation Mode Locking
- – CH Heat Pump
- – CC Cooling Only
- – HH Heating Only
- – NA No Auto Mode
- Fan Speed: Auto/Low/Med/High speed
- Set temperature range limit
- Airflow direction Horizontal and Vertical (on some models)
- Temperature Setting
- Child Lock
| Attributes | |
|---|---|
| 750mV Compatible | NO |
| Ambient Temperature Range | 23°F to 110°F (-5°C to 43°C) |
| Auto Changeover | NO |
| Backlit | YES |
| Batteries Included | YES |
| Battery Backup | YES |
| Brand | Factory Authorized Parts |
| Built-In Wi-Fi | NO |
| Change/Check Reminders | NO |
| Color | Various |
| Country of Origin | CHN |
| Cubic Measurement | 0.3889 |
| Daylight Savings Time Ready | NO |
| Digital-Non Programmable | NO |
| Digital-Programmable | YES |
| Display | YES |
| Display Options | Digital; LCD |
| Displays Outdoor Temperature | NO |
| Electrical Connection Type | Terminals |
| Energy Star Rated | NO |
| Fan Switching | YES |
| Heat Pump Compatible | YES |
| Hinged | NO |
| Humidification | NO |
| Indoor Remote Sensor | YES |
| Low Battery Indicator | NO |
| Manual | YES |
| Mounting Type | Wall mounted |
| OPT Code | 1PKSACN0601AAA |
| Power Method | Battery |
| Prop 65 | YES |
| Sensing Element | YES |
| System Switching | YES |
| Temperature Range | 62°F to 86°F (17°C to 30°C) |
| Temperature Settings per Day | 8 |
| Terminal Designations | A, B, C, D, E |
| Touchscreen | NO |
| UPC | See Optical |
| Vacation Mode | NO |
| Voltage | 5 VDC |
| Works with Google Assistant | NO |
| Works with Rheem EcoNet | NO |
