Description
SYST1-5 Carrier – SYST1-5 TruVu System Touch – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Carrier® – SYST1-5 TruVu™ System Touch

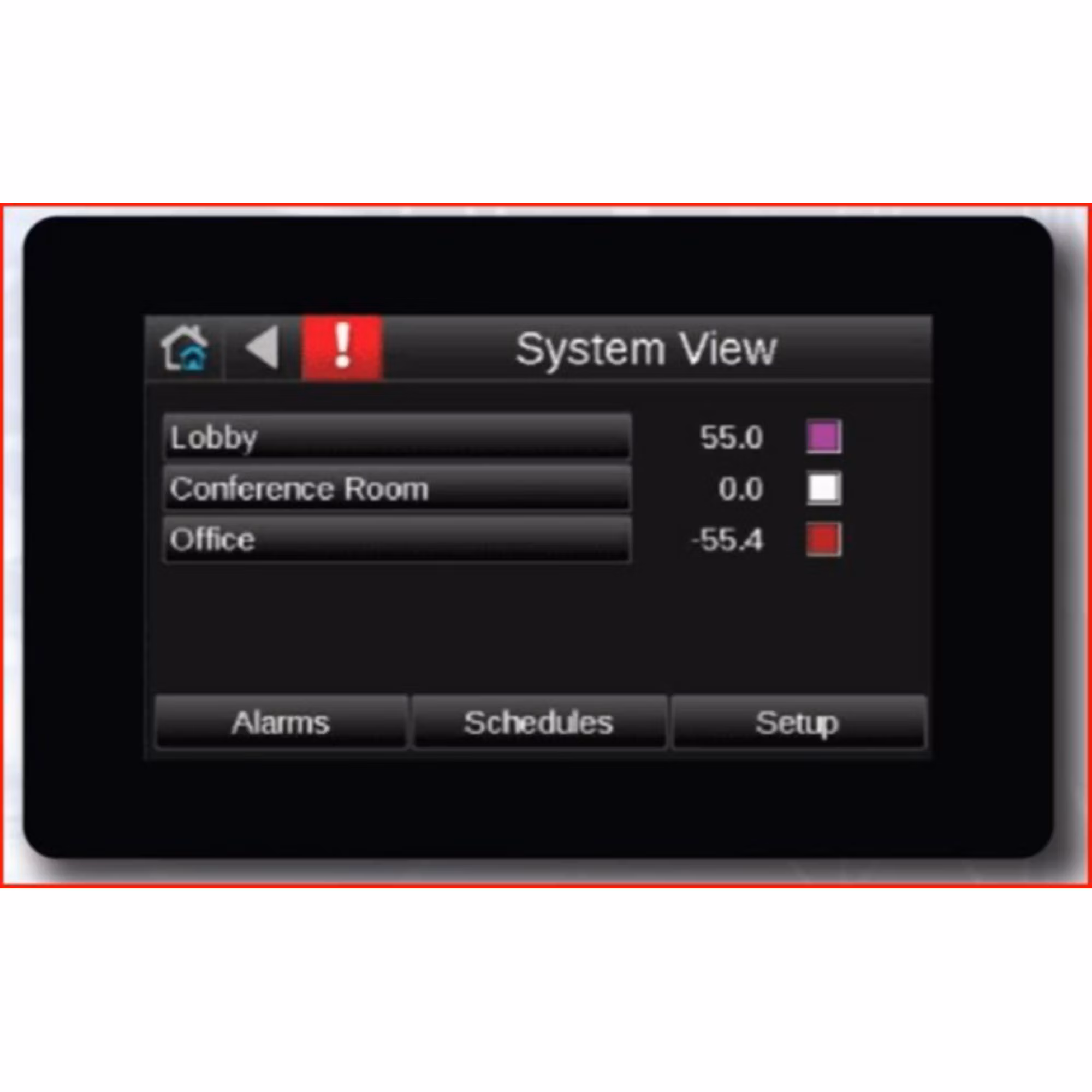

Carrier’s i-Vu System Touch is an integrated component of the i-Vu Building Automation System. It features an illuminated, 5” color pixel touchscreen display and connects directly to a network of Open (BACnet MS/TP) controllers. Designed for wall mounting, it provides building occupants, facility managers, and installers a powerful user interface for managing all of the equipment in a building.
Application Features
- Draw occupants attention to important information with conditional alarming, color changes, and graphic animations
- Features a high resolution, capacitive multi-touch screen
- Support for 13 international languages and characters
- Can serve as a technician’s HVAC equipment interface
- Multi-level password protection for security
- Access virtually any point in the controller
- View and edit BACnet time schedules
- View all alarms in controller
- Change setpoints easily
Hardware Features
- Rugged, industrial grade display and a wide temperature range and vibration resistance
- Fanless cooling system and ultra-low power consumption
- Wall-mounted
Programming Features
- Supports standard System Touch files
- Support for graphics
- USB-C port for local device updates
- Supports screen capture to USB flash drive
- Built-in PDF viewer
| Attributes | |
|---|---|
| Brand | Carrier®, Bryant® |
| Color | Black |
| Country of Origin | Varies |
| Display | YES |
| Display Options | 5.0 in. capacitive touchscreen color LCD to controllers on BACnet network |
| Heat Pump Compatible | NO |
| Number of HVAC Zones | 1-32 |
| OPT Code | 1PSYST1-5 |
| Prop 65 | YES |
| UPC | See Optical |
| Voltage | 24 VAC |
| Zone Capability | 32 devices |
