Description
Factory Authorized Parts – HB37GQ240 Outdoor Fan Motor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

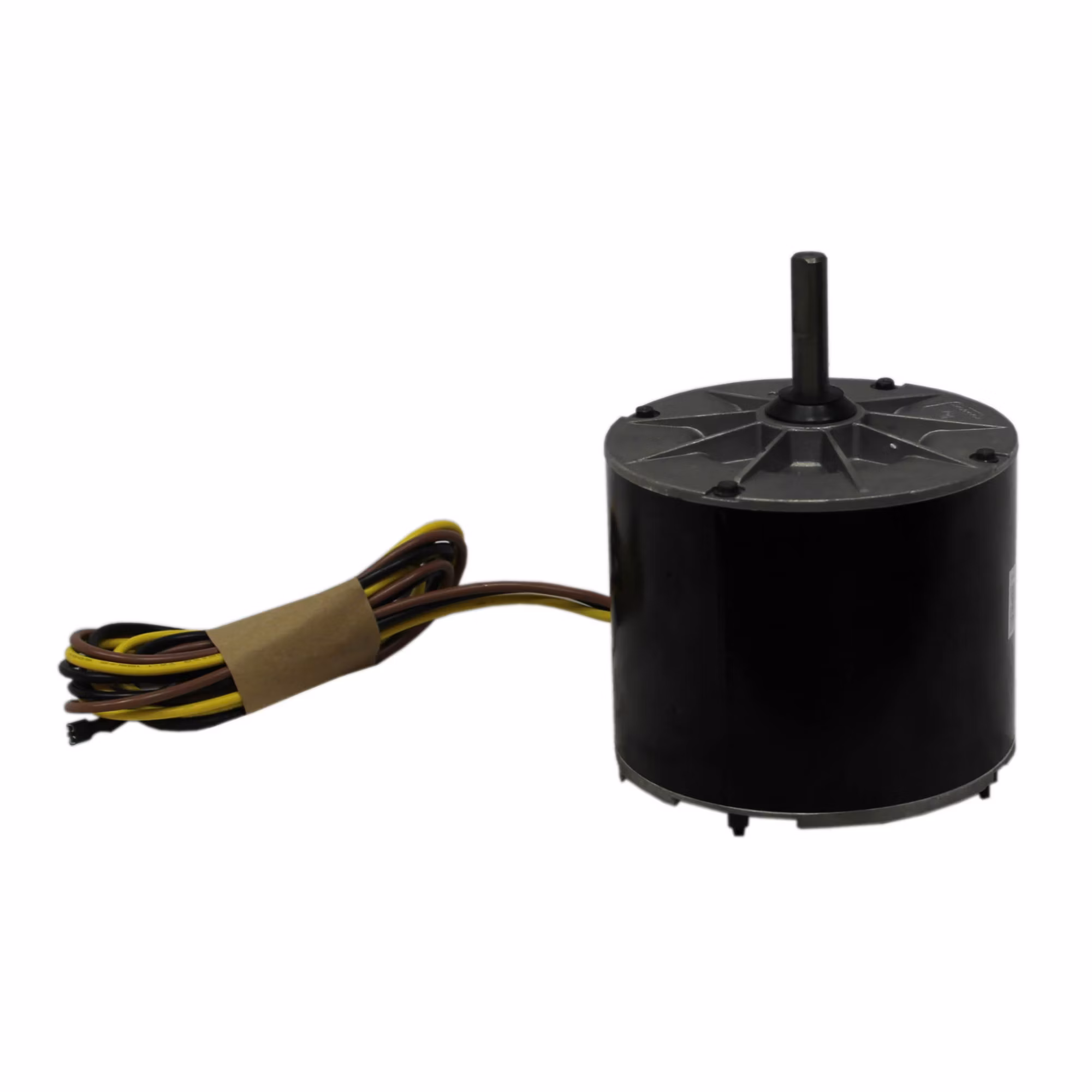

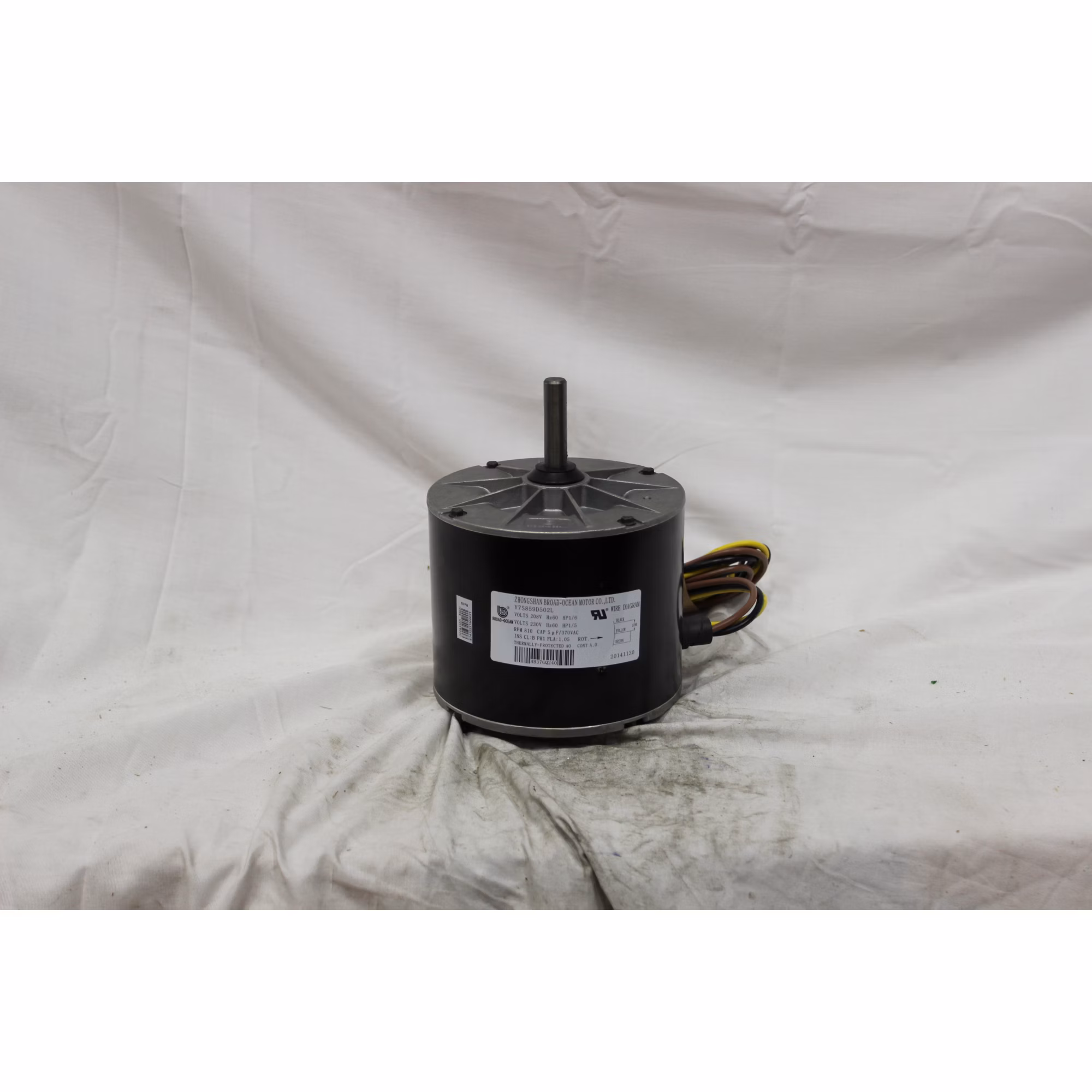

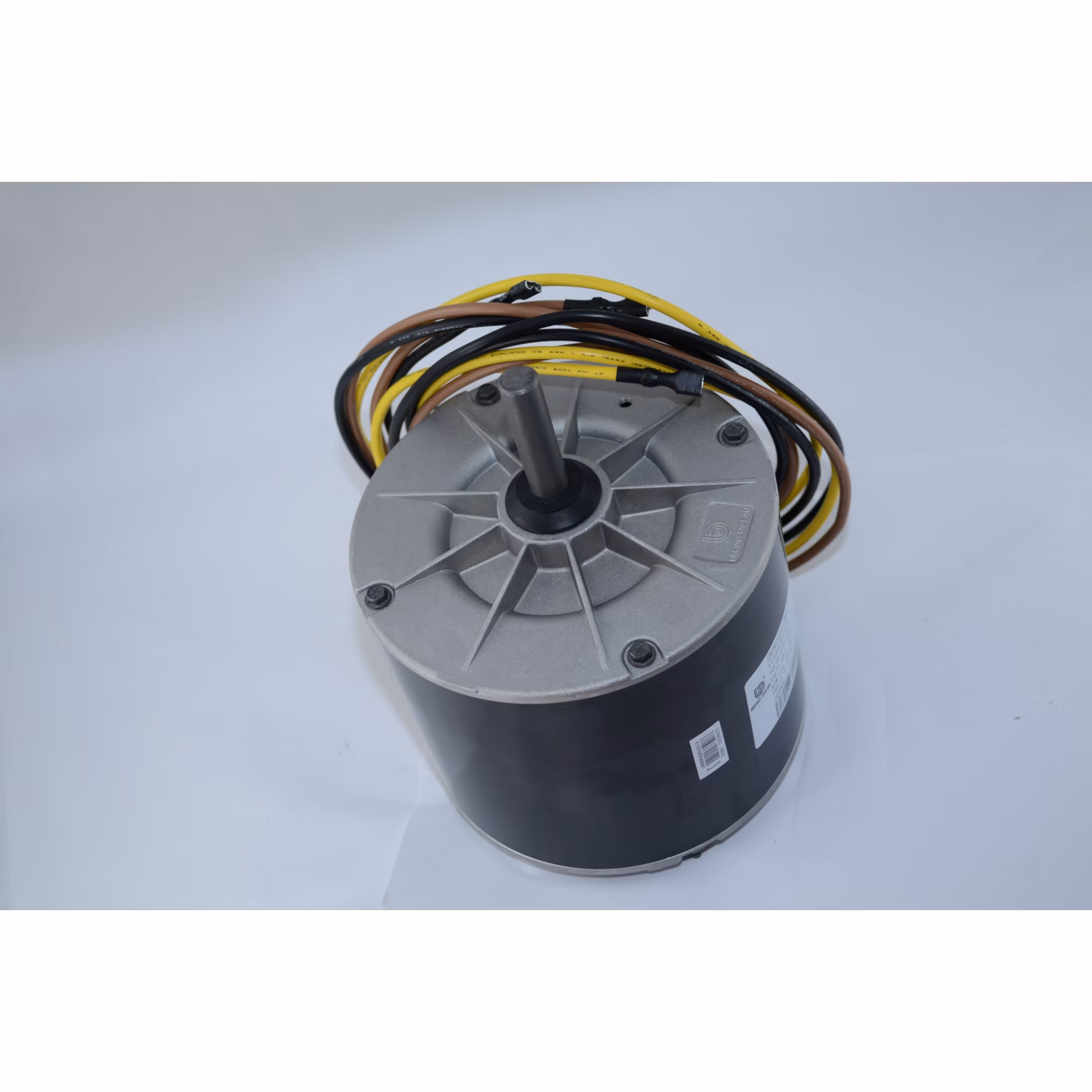

Factory Authorized Parts? – HB37GQ240 Outdoor Fan Motor
Factory Authorized Parts are designed to meet exact Carrier? Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Approvals | CSA Listed; UL Recognized |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | CHE |
| Cubic Measurement | 0.1511 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 6 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00822529659855 |
| Insulation Class | B |
| Motor HP | 1/6; 1/5 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Thru-Bolt |
| NEMA Frame | 48 |
| Phase | Single |
| Prop 65 | NO |
| RPM | 810 |
| Rotation | Clockwise (CW) |
| Shaft Diameter | 1/2″ |
| Shaft Length | 2.5″ |
| UOM | EA |
| UPC | 822529659855 |
| Voltage | 208-230 VAC |
