Description

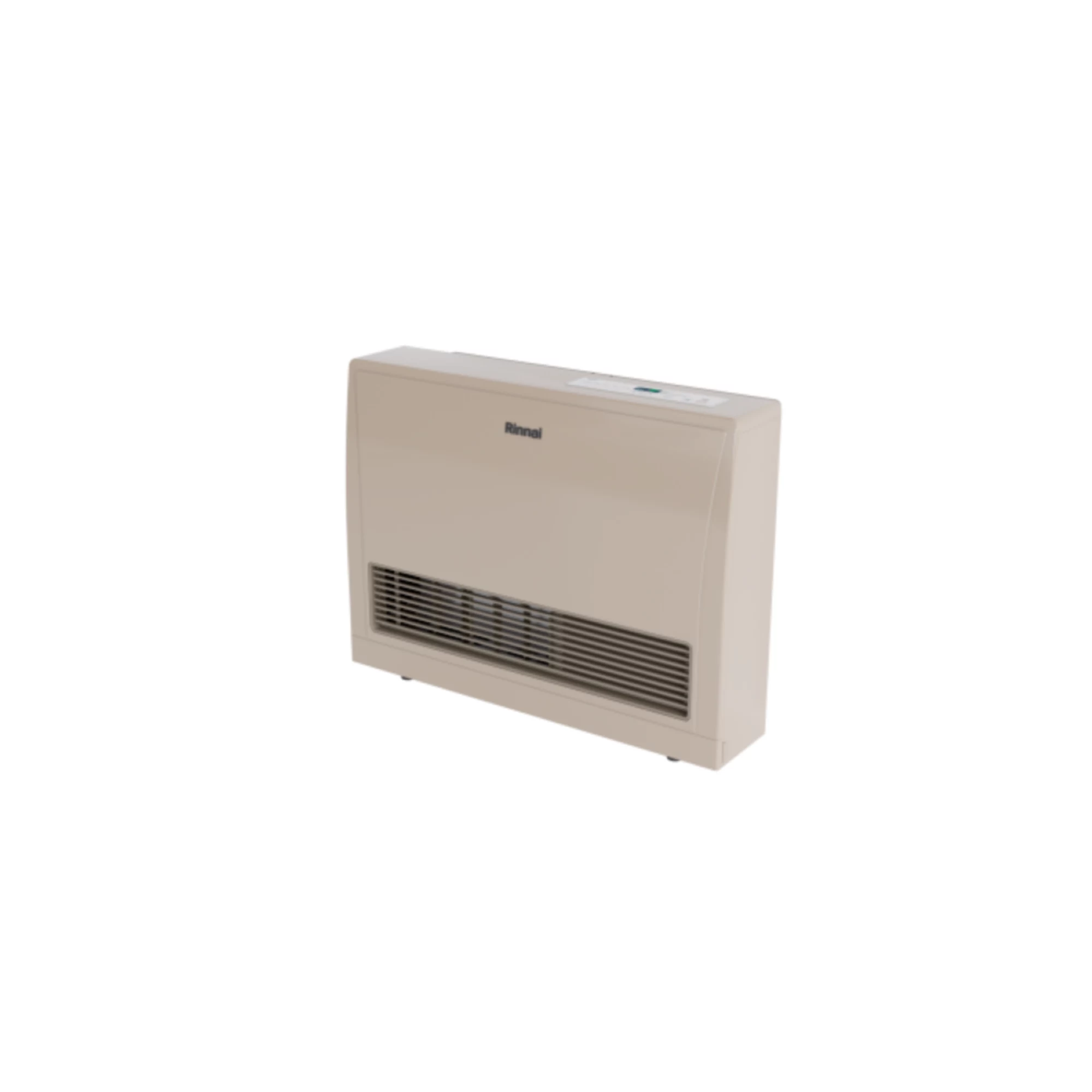

EX22DTN Rinnai – 21,500 BTU EnergySaver Vented Natural Gas Furnace – E:Mail: sales@walkair.us to confirm availability or for volume discounts
EX22DTN EX_DT Model Series
EX22DTN is a quick, flexible installed, ductless, natural gas, direct vent wall furnace from Rinnai; the perfect supplemental or specific zone heating solution that seeks out cold spots and within seconds begins to gently heat the room or space for maximum comfort. WiFi enabled thermostat connection ready.
8,200 BTU / (2.4 kW) (minimum)
21,500 BTU / (6.3 kW) (maximum)
Surface Mounted
| Attributes | |
|---|---|
| AFUE | 81 |
| Air Flow Direction | Horizontal / Vertical |
| Approvals | CSA Listed |
| BTU Input | 8,200-21,500 |
| BTU Output | 6,642 |
| Brand | Rinnai |
| CFM | 111.3-162.7 |
| Cabinet Width | 29.9 |
| Color | Beige |
| Country of Origin | JPN |
| Cycle/Hertz | 60 Hz |
| Energy Star Rated | YES |
| FER Compliant | NO |
| Fuel Type | Natural Gas or LP |
| Furnace Type | Gas |
| Gas Connection Size | 1/2″ |
| Gas Connection Type | MNPT |
| Ignition Type | Hot Surface (HSI) |
| Includes Filter Rack | NO |
| Phase | Single |
| Product Family | EX22DT |
| Prop 65 | YES |
| Stages Heating | Modulating |
| UPC | 766156016585 |
| Voltage | 120 VAC |
