Description
FEATURES / BENEFITS

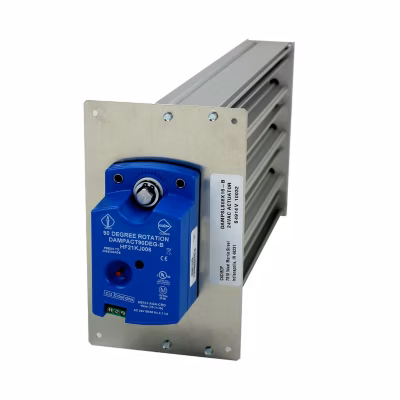

Carrier zone dampers are the latest in design and were developed to fit field requirements for a variety of duct work shapes and sizes. These dampers use 24 VAC direct drive actuators for smooth, quiet performance. There is a 1/2-in. direct–drive mounting hub for securing the damper blade and shaft to the actuator housing. A position indicator and angular rotation stop for viewing or manually setting minimum maximum damper positions facilitate ease of installation. A spring loaded disengagement button to momentarily release main gear and damper blade allows for manual positioning of installed dampers.
The damper motor and terminal block wiring are protected by a plastic cover with a removable door. Permanently lubricated bushings, with a split shaft design for round and rectangular style dampers, secure the damper blade to the shaft for efficient reliable service.
Specifications
| Attributes | |
|---|---|
| Brand | Bryant®, Payne® |
| CFM | 1600 |
| Color | Silver |
| Country of Origin | USA |
| Cubic Measurement | 0.5556 |
| Cycle/Hertz | 60 Hz |
| Damper Type | Zone |
| Emergency Heat Switch | NO |
| Heat Pump Compatible | NO |
| Mounting Type | Slip-In Side |
| Network Zoning | YES |
| OPT Code | 1PDAMPSLS08X24-B |
| Phase | Single |
| Power Method | Hardwired |
| Prop 65 | YES |
| Shape | Rectangle |
| Size | 8″ x 24″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 24 VAC |
