Description

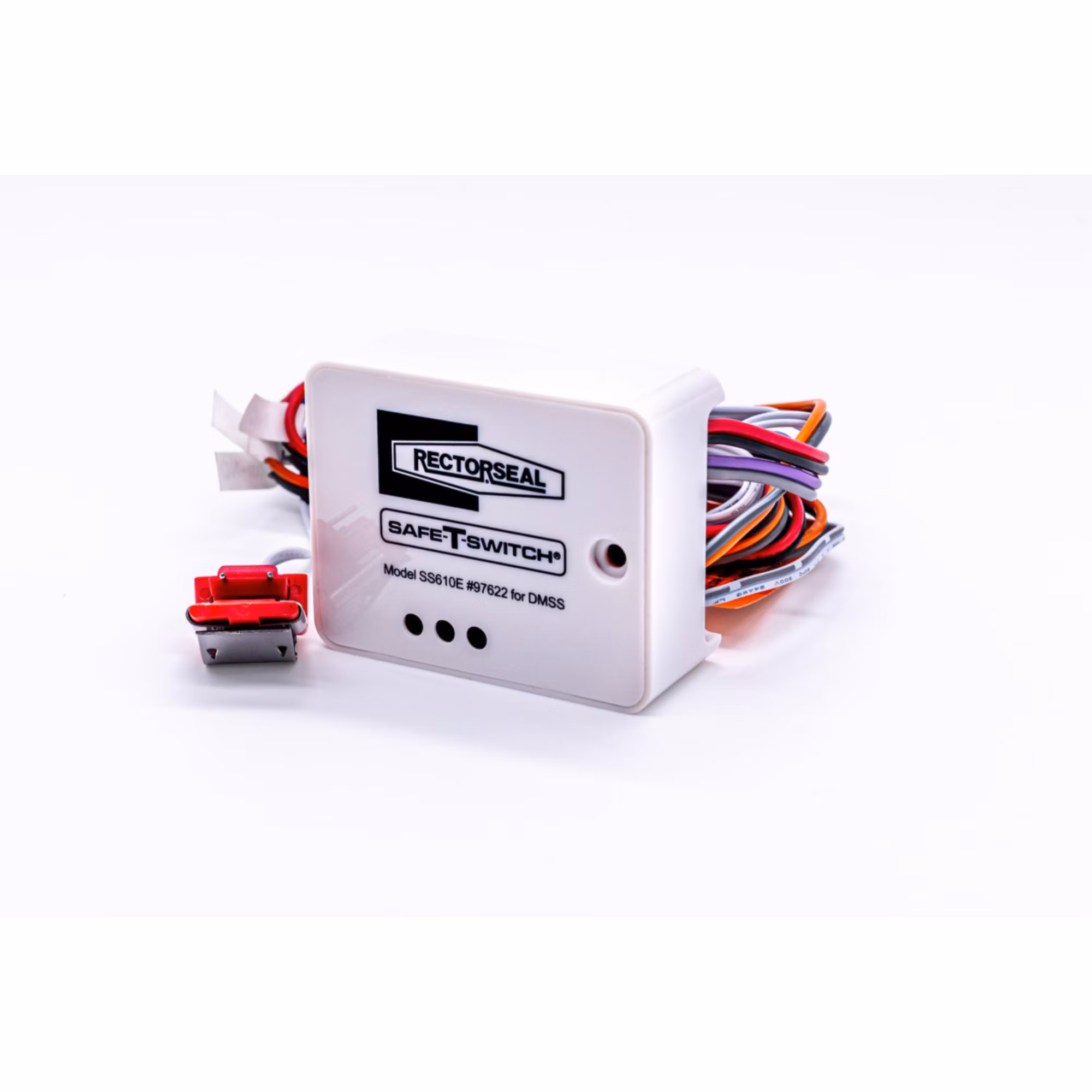

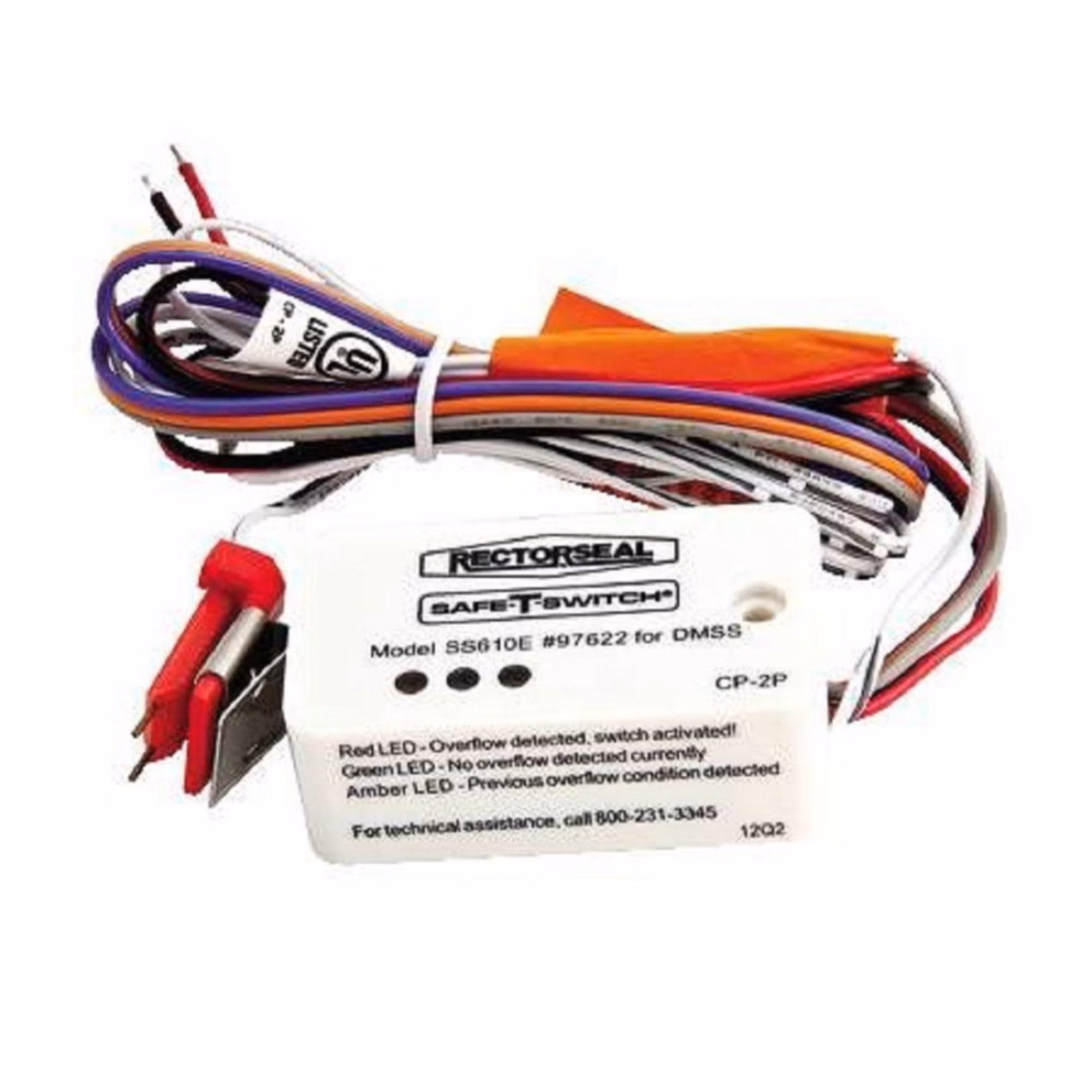

97622 Rectorseal – Safe-T-Switch SS610E – E:Mail: sales@walkair.us to confirm availability or for volume discounts
SS610E is specially designed for use in Mini Split systems. Its small Sensor can easily fit in the confined internal spaces of most units. It can also be installed directly in the Drain Pan or clipped to the unit’s Coils. SS610E’s CPU unit is housed in an attractive casing that can be mounted directly to the side of the unit. Uses power from A/C unit so no batteries are required.
The Electronic Condensate Overflow Switch contains low power consuming, state-of the-
art microelectronics. SS610E’s logic circuit continuously samples the probes for water.
If water is detected, the circuit determines if the condition is transient or permanent. If
permanent, the system will be shutdown. Onboard LED’s indicate the condition of the unit.
| Attributes | |
|---|---|
| Approvals | UL Listed; UL Recognized |
| Brand | RectorSeal® |
| Color | White |
| Composition | Polyvinyl Chloride |
| Connection Size | Clips to drain pan |
| Cord Length | 2′ lead, probe 4′ |
| Country of Origin | CHN |
| Cubic Measurement | 0.0582 |
| EAN | 0021449976220 |
| For Use With | Mini split systems |
| Maximum Amps Running | 5 |
| Mounting Type | Secondary |
| Plenum Rated | NO |
| Prop 65 | NO |
| Size | 2.5″ x 1.4″ x 1″ |
| Switch Type | LED Indicator |
| Tier | Safe-T-Switch® |
| Trigger | Electronic |
| Type | Electronic |
| UOM | EA |
| UPC | 021449976220 |
| Voltage | 110/230 VAC |
| Wire Gauge | 18 AWG |
