83335 MARS – 60A Non-Fused Disconnect Box – E:Mail: sales@walkair.us to confirm availability or for volume discounts

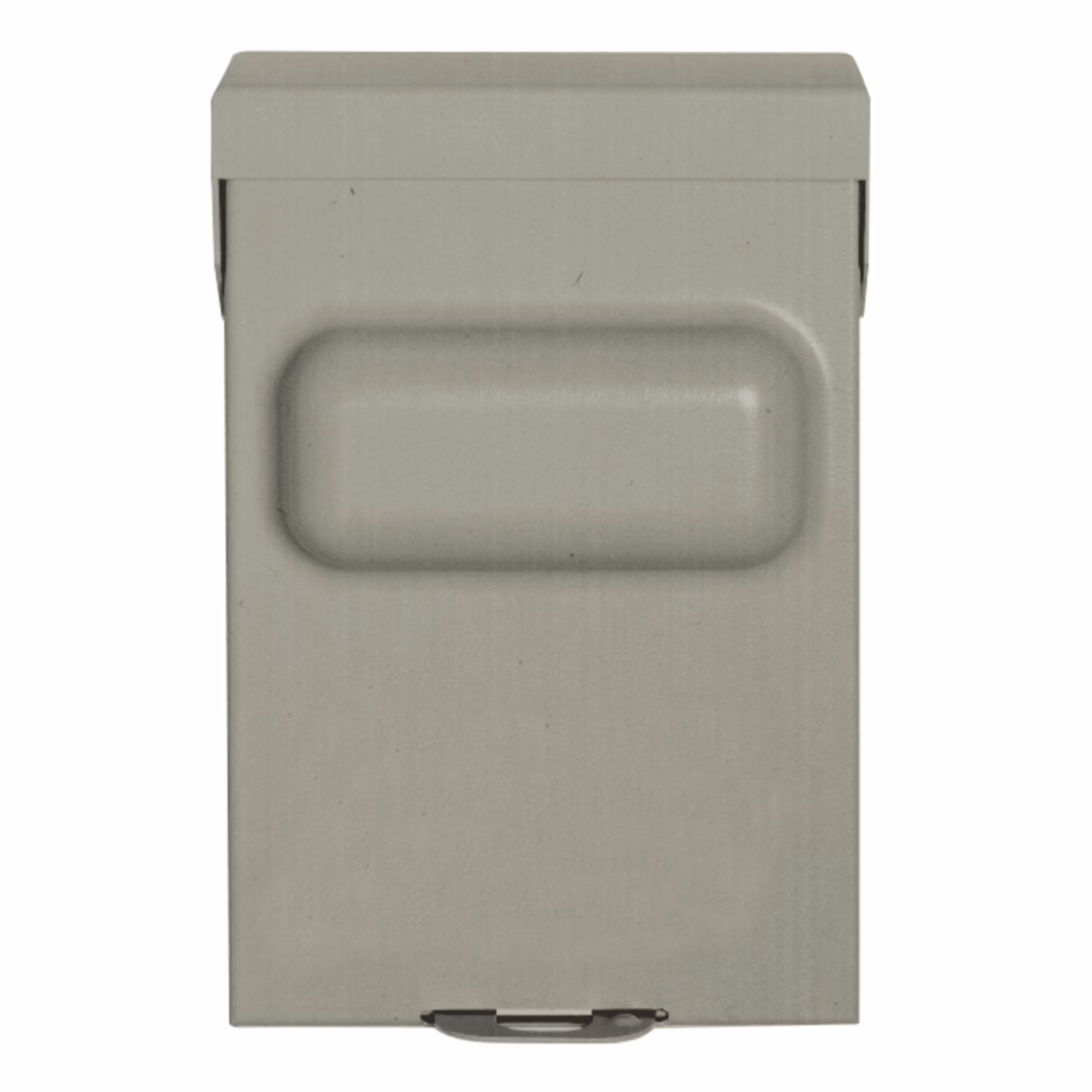

MARS – Generic Disconnect Box
These units provide a disconnecting means which should be located within sight from and readily accessible from the air conditioning or refrigerating equipment.
- Non-fusible single phase air conditioner disconnects
- UL listed
- Contractor friendly
- Top open door
- Easy access
- Front open pull out
Specifications:
- Number of Poles: 2
- Type: Top Open A/C Disconnect
- Amp Rating: 60 Amp
- Fused or Non-Fused: Non-Fused
- Color: Gray
- Voltage Rating: 240
- Side or Top Open: Top
- Enclosure Material: Steel
- Outlet – GFI: No
- Phase: Single
- Standards: UL/CUL
- NEMA Enclosure: NEMA 3R
- Dimensions: 7-1/4″ x 5″ x 2.13″
| Attributes | |
|---|---|
| Amps | 60 |
| Approvals | CUL Listed; UL Listed; UL Recognized |
| Brand | MARS |
| Color | Silver |
| Country of Origin | MEX |
| Cubic Measurement | 0.0023 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 1 |
| EAN | 0685744833352 |
| Fusible | NO |
| Maximum Voltage | 240 VAC |
| Phase | Single |
| Poles | Double |
| Prop 65 | YES |
| Switch Type | Non-Fused |
| UOM | EA |
| UPC | 685744833352 |
| Voltage | 240 VAC |
