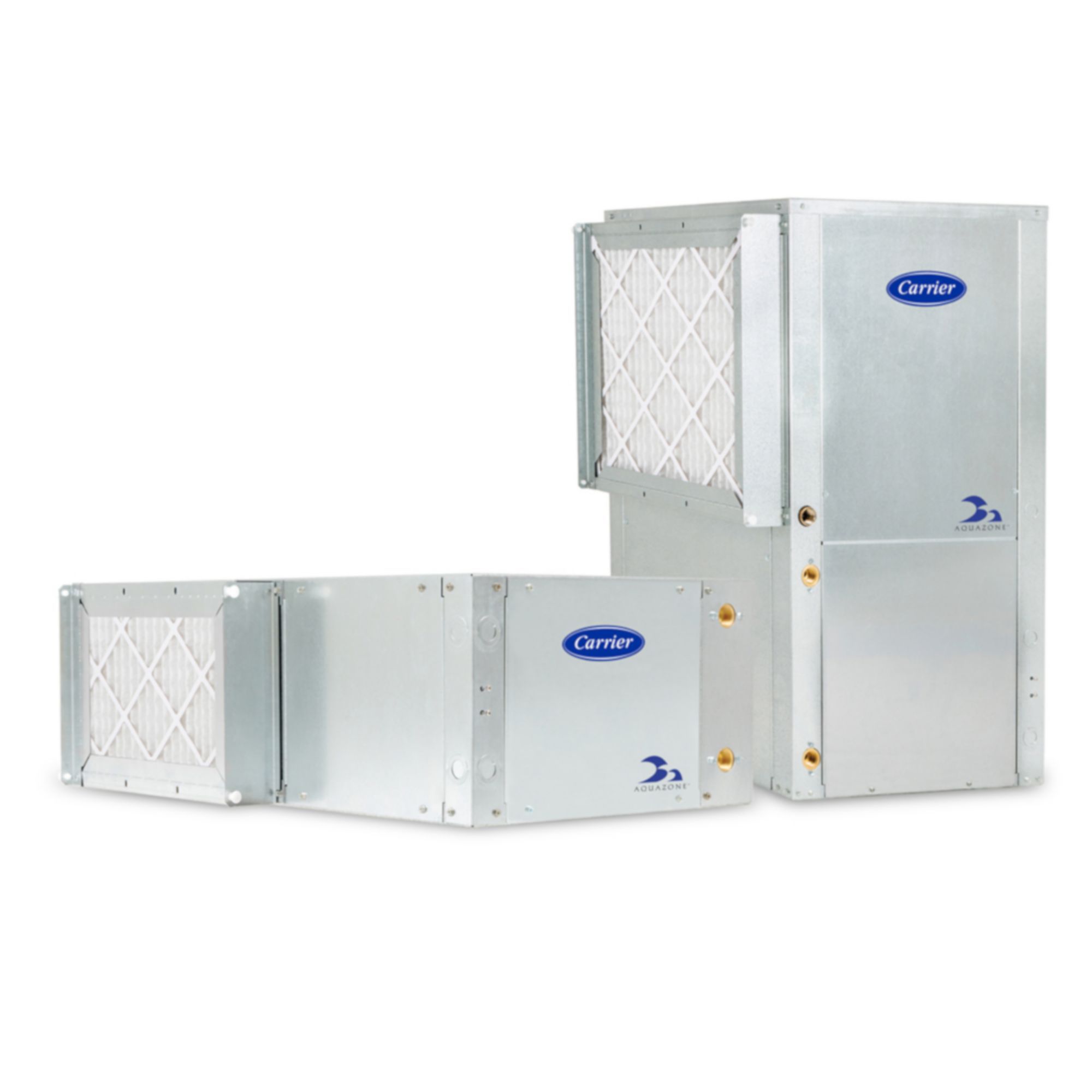

50PCH042PCC6ECC8 Carrier Aquazone – 3.5 Ton Compact Water Source Heat Pumps, Horizontal Right Return (460-3-60) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
50PCH042PCC6ECC8
50PCH = Horizontal Configuration Aquazone™ Compact Water Source Heat Pump
042 = 3-1/2 Ton
P = Right/Return Back/Discharge Constant Torque ECM/Blower Motor
C = Standard C Microprocessor Control
C = Standard Non-Coated Copper Air Coil
6 = 460-3-60
E = Revision E
C = None
C = Standard Range (50 to 100 F)
8 = MERV 8 Filter
Single-package horizontally and vertically mounted water source heat pumps (WSHPs) with solid-state controls.
- Unique double isolation compressor mounting via vibration isolating rubber grommets for quiet operation
- Copeland scroll compressors (rotary 007-015, reciprocating 018-042, scroll 048-070)
- Suitable for geothermal (with extended range option) and boiler/tower use with an operating temperature range of 25 to 110 F
- Hot gas reheat (HGR) available for dehumidification capability
- Backward compatibility for replacing older un
| Attributes | |
|---|---|
| Air Flow Direction | Horizontal |
| Approvals | ETL Listed |
| Blower Motor HP | 3/4 |
| Blower Motor Speeds | 5 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 10″ |
| Blower Wheel Width | 8″ |
| Brand | Carrier® |
| CFM | 1,380 |
| COP | 3.4-4.6 |
| Color | Silver |
| Compressor Type | Scroll |
| Cooling Capacity | 40,500-42,100 |
| Country of Origin | USA |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| EER | 14.2-16.6 |
| Energy Star Rated | NO |
| Heating Capacity | 29,000-41,800 |
| Locked Rotor Amps (LRA) | 44 |
| Maximum Overcurrent Protection (MOCP) | 15 |
| OPT Code | 1P50PCH042PCC6ECC8 |
| Phase | Three |
| Product Family | 50PCH |
| Prop 65 | YES |
| Rated Load Amps (RLA) | 5.6 |
| Refrigerant | R-410A |
| Return Air Filter Size (RA) in Inches (W x H x D) | 18 x 30 x 1 |
| Stages Cooling | 1 |
| Tier | Aquazone™ |
| Tonnage | 3.5 |
| UPC | See Optical |
| Voltage | 460 VAC |
