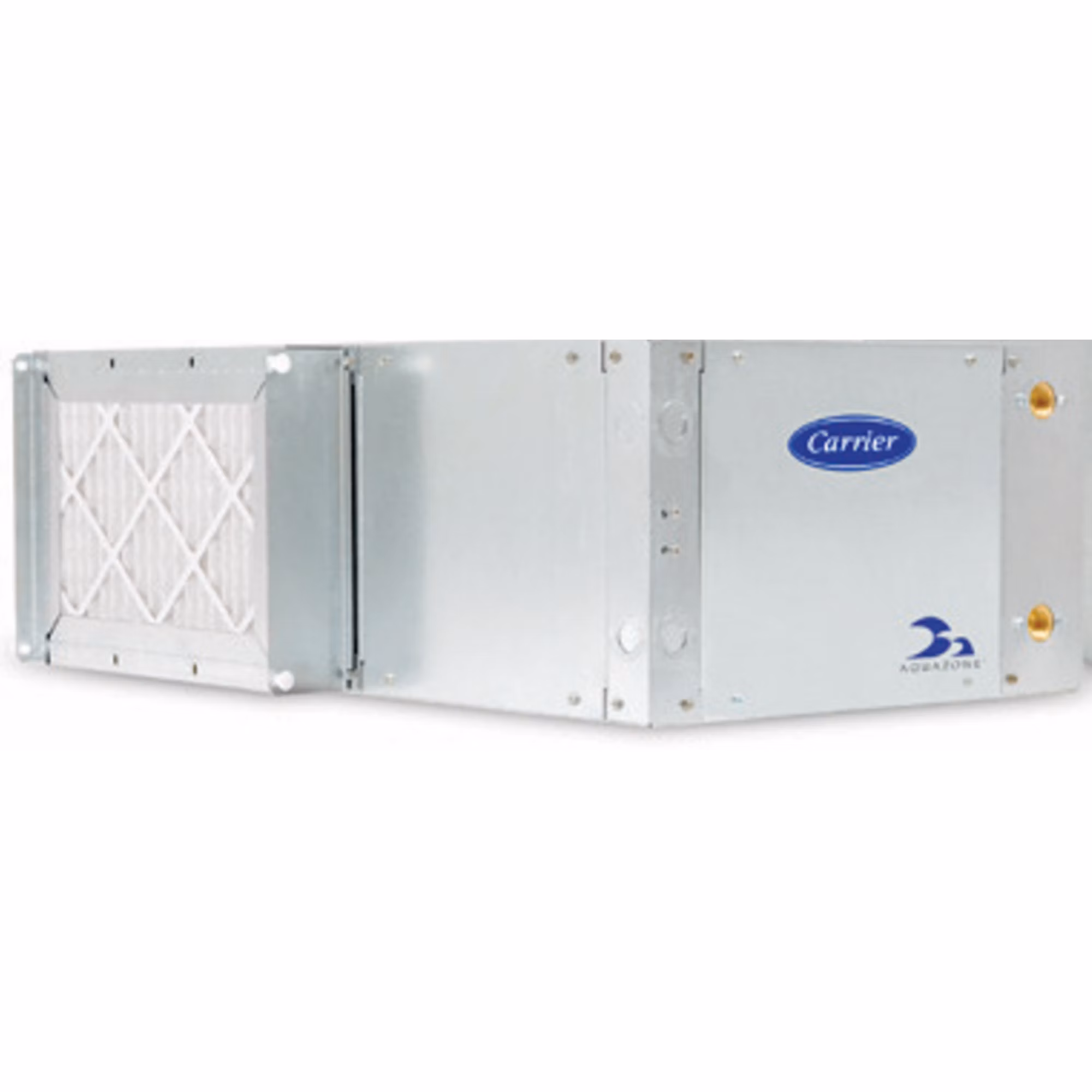

50WCB036HAA5FA-A Carrier Aquazone – 3 Ton Compact Water Source Heat Pump, Horizontal Right Return, R-454B (208-230/3/60) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
50WCB036HAA5FA-A
50 = Packaged WSHP Unit / Model Series
WC = 1-Stage (Compact) / Tier
B = Horizontal Side Filter Access Water Connection Front Right / Cabinet Configuration
036 = 3 Ton / Nominal Capacity MBH
H = Horizontal Right Return CT ECM Motor / Airflow Configuration
A = UPM/50 VA / Controls – Option/Transformer
A = Option/None / Coated Air Coil / Refrigerant Circuit Option
5 = 208-230/3/60 / Electrical Option
F = 2 in. MERV8 Filter, Std Insulation / Sound, and IAQ Option
A = None/Option / Copper/Water Coil / Hydronic Option
– = None / Miscellaneous Options
A = Initial Release / Design Revision
Carrier’s Aquazone™ indoor packaged water source heat pump (WSHP) is an efficient, compact solution great for both new construction and retrofit applications.
The Carrier AquaZone 50WC water source heat pumps utilize Puron Advance® low GWP refrigerant (R-454B), with a GWP of
| Attributes | |
|---|---|
| Air Flow Direction | Horizontal |
| Approvals | ETL Listed |
| Blower Motor HP | 3/4 |
| Blower Motor Speeds | 3 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Brand | Carrier® |
| CFM | 1,200 |
| COP | 3.6-4.6 |
| Color | Silver |
| Compressor Type | Scroll |
| Cooling Capacity | 37,900-42,050 |
| Country of Origin | USA |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| EER | 13.9 |
| Energy Star Rated | NO |
| Heating Capacity | 26,800-39,800 |
| Locked Rotor Amps (LRA) | 97.5 |
| Maximum Overcurrent Protection (MOCP) | 30 |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1P50WCB036HAA5FAA |
| Phase | Three |
| Product Family | 50WC |
| Prop 65 | YES |
| Rated Load Amps (RLA) | 12.2 |
| Refrigerant | R-454B |
| Return Air Filter Size (RA) in Inches (W x H x D) | 18 x 30 x 1 |
| Tier | Aquazone™ |
| Tonnage | 3 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
