Description

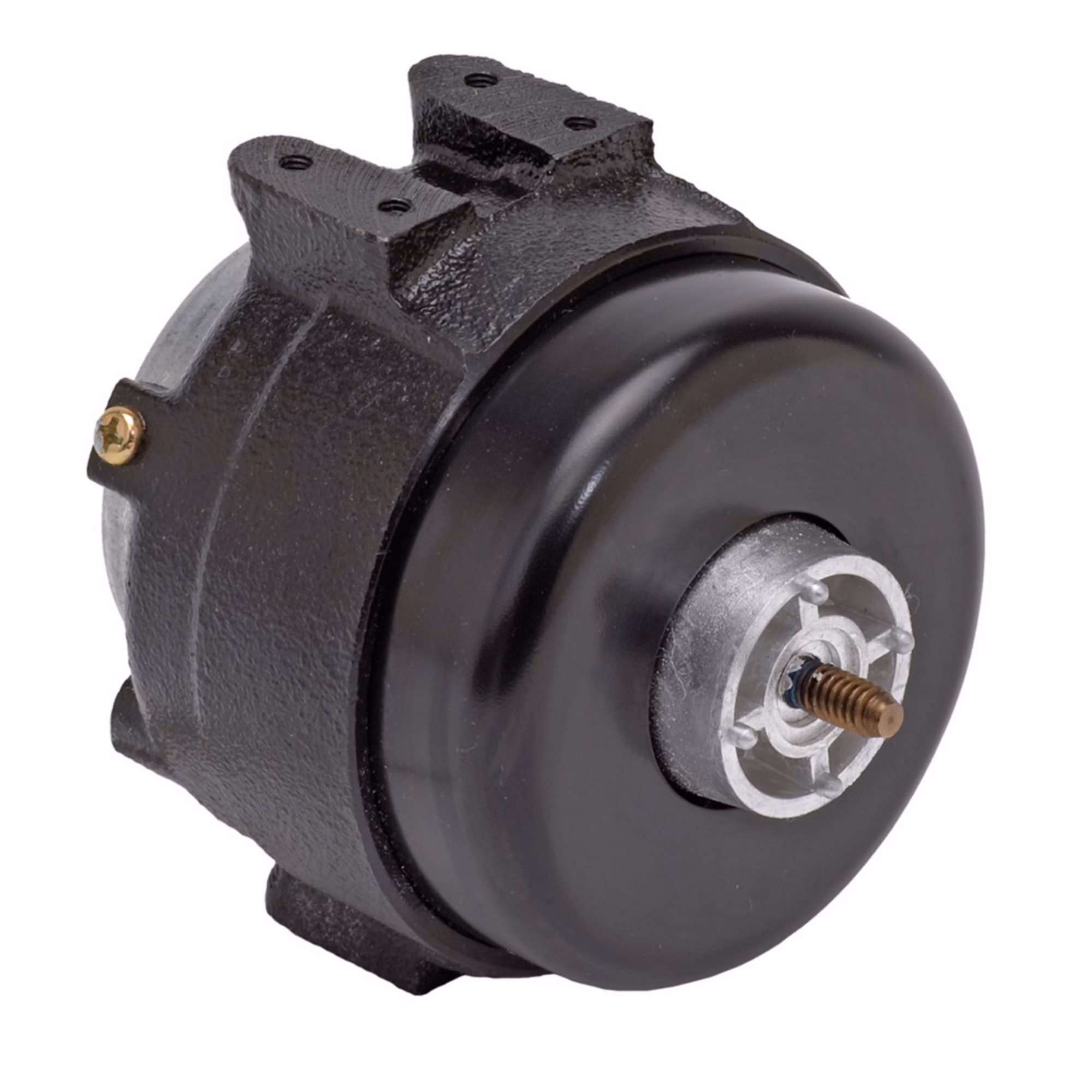

2135 Unit Bearing, 1 Phase, Shaded Pole, Totally Enclosed Air Over (TEAO), Footed – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Unit Bearing, 1 Phase, Shaded Pole, Totally Enclosed Air Over (TEAO), Footed
| Attributes | |
|---|---|
| Amps | 0.9 |
| Approvals | UL Listed; UL Recognized |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | U.S. Motors |
| Country of Origin | USA |
| Cubic Measurement | 0.0435 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 2 |
| Duty | (S1) Continuous Running Duty |
| EAN | 0786382061098 |
| Full Load Amps | 0.9 |
| Insulation Class | B |
| Lead Length | 24″ |
| Motor Enclosure | Totally Enclosed Air Over (TEAO) |
| Motor Type | Shaded Pole |
| Number of Speeds | 1 |
| Phase | Single |
| Poles | 4 |
| Prop 65 | YES |
| Protection | Impedance |
| RPM | 1,550 |
| Rotation | Clockwise (CW) |
| Shaft Diameter | 0.375″ (3/8″) |
| Shaft Length | 1.5″ |
| UOM | EA |
| UPC | 786382061098 |
| Voltage | 230 VAC |
| Watts | 50 |
