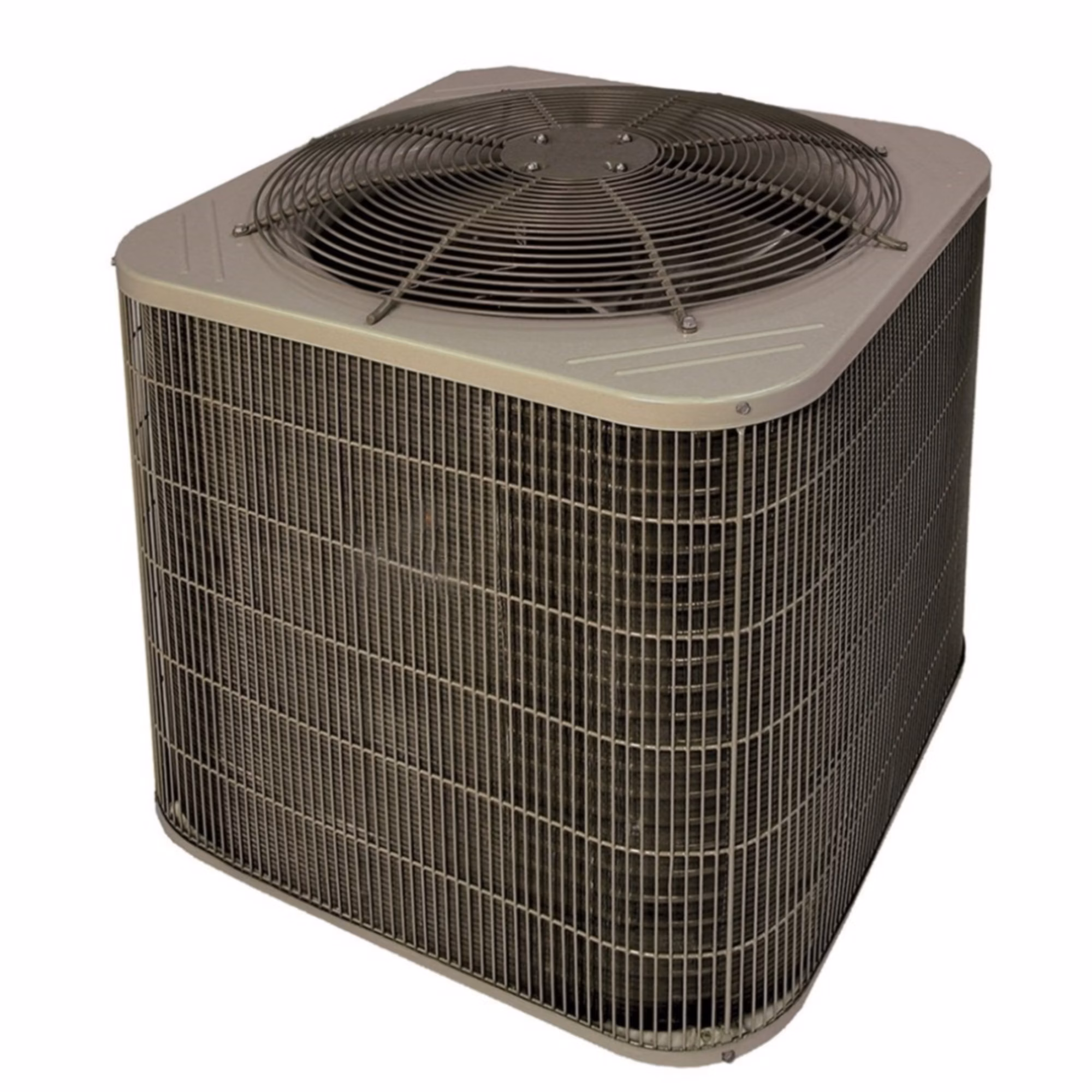

PA7TAN42400W 2 Ton Up to 17 SEER2 2-Stage Residential Air Conditioner Condensing Unit

PA7TAN42400W
P = Generic / Branding
A = AC / OD Type
7 = 17 SEER2
T = 2-Stage / OD Design Type
A = Major Iteration / Major Series
N = 208-230-1 / Voltage
4 = R410A / Refrigerant
24 = 24,000 BTUH (2 Tons) / Nominal Capacity
0 = Standard / Feature
0 = Standard / Special Feature
W = Standard Southwest AC / RegionNOTE: Ratings are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.Features / Benefits
Efficiency

• Up to 17.0 SEER2 (18 SEER)/ Up to 13.5 EER2 (14.5 EER)
• Indoor air quality accessories available

Sound

• Sound level as low as 71 dBA

Comfort

• System supports Thermidistat or standard 2-stage thermostat controls

Reliability

• R-410A refrigerant – environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
• Front-seating service valves
• 2-stage scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• Filter drier
• Balanced refrigeration system for maximum reliability

Durability

• Protection Package:Solid, Durable sheet metal construction
• Pre-painted cabinet finish over galvanized steel

Applications

• Long-line – up to 250 feet (76.2 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Longline Guide for more information.)
• Low ambient cooling (down to 0°F / -17.8°C ) with approved low ambient accessory kits.
