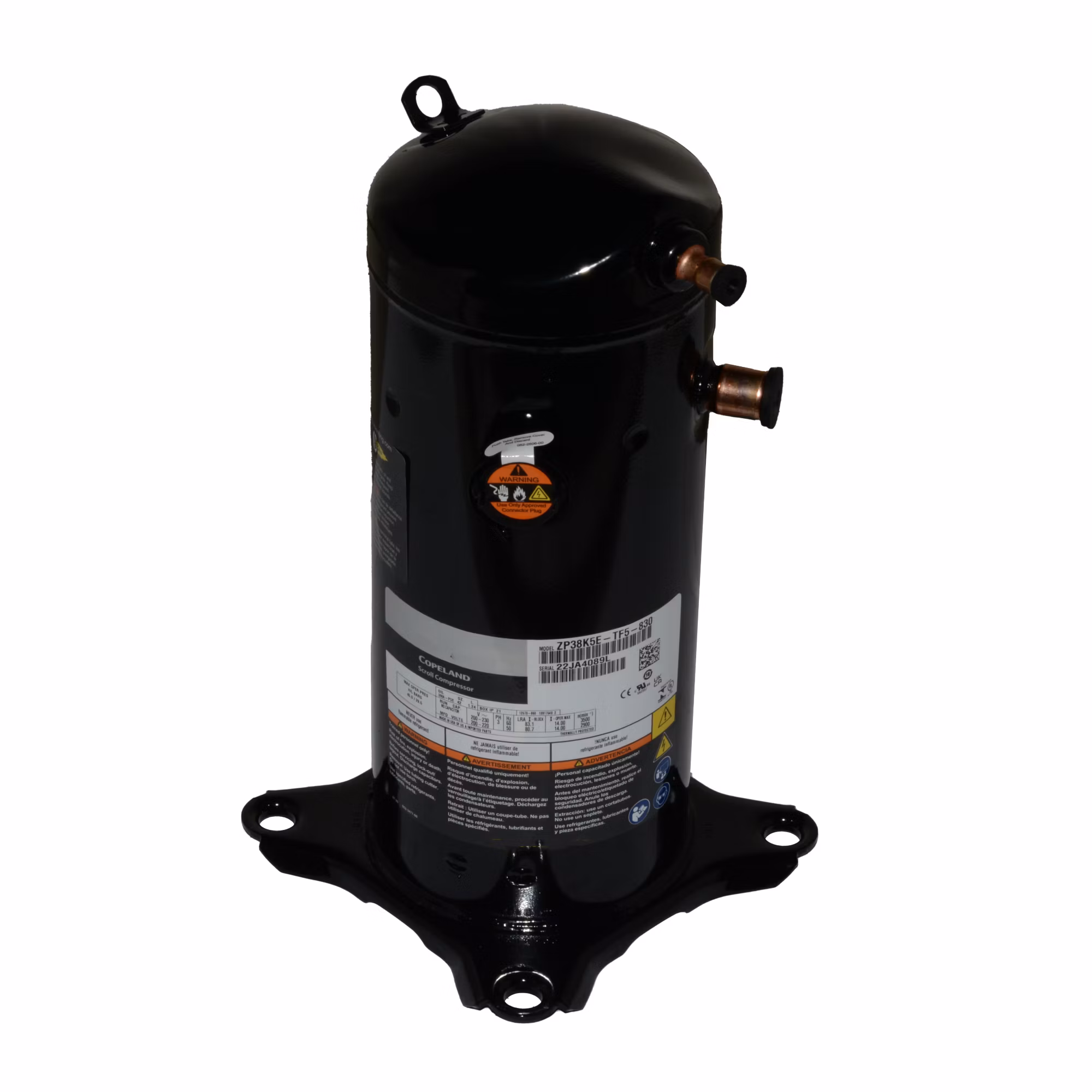

ZP38K5E-TF5-830 37,500 BTUH Copeland Scroll Compressor

$1,682.78

E:Mail: sales@walkair.us to confirm availability or for volume discounts

SKU: ZP38K5E-TF5-830 Category: Tag:

Description

ZP38K5E-TF5-830 37,500 BTUH Copeland Scroll Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

Benefits of Copeland scroll compressors:
Only three moving parts–fewer moving parts means less maintenance needed. By contrast, other reciprocating compressors can have up to nine moving parts in each cylinder.
No complex internal valves–the simplified design resists liquid refrigerant slugging, debris and failure,
Higher efficiency–Copeland was one of the first companies to create partial load operation across its compressor line. Their scroll compressors tend to be more efficient across its entire operating range.
Lower vibration levels–this means not just less noise, but also less wear and tear on components.

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time. Use chat if you need to confirm lead time before ordering. By purchasing this product, you agree to t

Attributes
Amps 15.1
Approvals UL Recognized
BTU Output 37,500
Brand Copeland
Compressor Housing Hermetic
Compressor Type Scroll
Condensing Temperature 130°F (54.44°C)
Country of Origin USA
Cubic Measurement 2.3198
Cycle/Hertz 50/60 Hz
Dimensional Weight 27
Discharge Connection Size OD 1/2″
Discharge Connection Type Stub
Displacement 2.18 (in^3/Rev)
Evaporating Temperature 45°F (7.22°C)
GTIN 00822529129600
Liquid Temperature 115°F (46.11°C)
Locked Rotor Amps (LRA) 83.1
Mass Flow (lbs/hr) 560 lbs./hr.; 635 lbs./hr.
Mounting Dimensions 7.5″ x 7.5″ x 17.17″
OPT Code ZP38K5E-TF5-830
Oil Charge Initial (oz.) 42
Oil Type Polyolester (POE)
Phase Three
Prop 65 NO
Protection Yes
Rated Load Amps (RLA) 13.6-15.1
Refrigerant R-410A
Return Gas Temperature 65°F (18.33°C)
Sound Level (dBA) 71-76
Suction Line Fitting Type Stub
Suction Line Size (OD) 7/8″
UOM EA
UPC 822529129600
Voltage 200/220, 200/230 VAC

Additional information

Weight 72.55 lbs
Dimensions 13.1 × 15.3 × 20 in
