General Information
Application

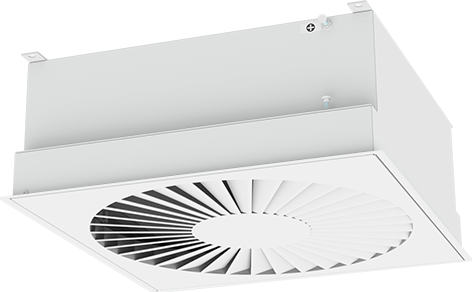

- Pharmaceutical clean room terminal filter for ceiling installation as final filter stage and for air distribution in sensitive areas of the pharmaceutical industry
- Fitting of filter elements for the separation of suspended particles such as aerosols, toxic dusts, viruses or bacteria from the supply or extract air.
Variants

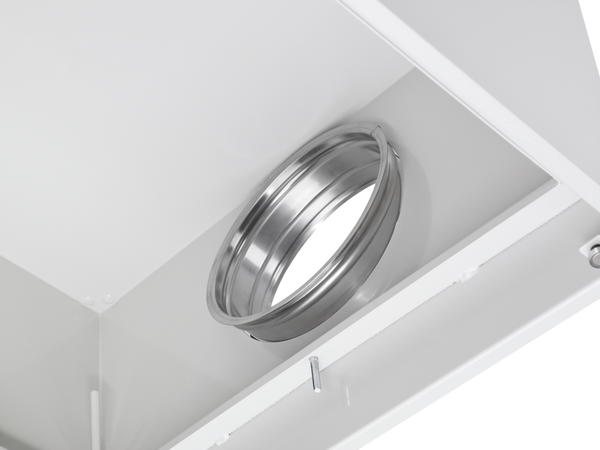

- TC-S: Top entry circular spigot, top lateral suspension lugs
- TC-FC: Top entry circular spigot, with supports for mounting in false ceilings
- SC-S: Side entry circular spigot, top lateral suspension lugs
- SC-FC: Side entry circular spigot, with supports for mounting in false ceilings
- SCR-S: Side entry circular spigot, removable, top lateral suspension lug
- SCR-FC: Side entry circular spigot, removable, with supports for mounting in false ceilings
Construction
- Sheet steel, powder-coated, RAL 9010, pure white
Nominal sizes
- 16, 20, 24, 25 [in]
Attachments
- FD: Ceiling swirl diffuser
- TDF: Ceiling swirl diffuser
- VDWF: Ceiling swirl diffuser
Useful additions
- Mini Pleat filter panels (MFP)
- Suitable filter elements to be ordered separately
Special characteristics
- Compact construction
- Flush ceiling installation
- Removable spigot for installation into closed ceilings

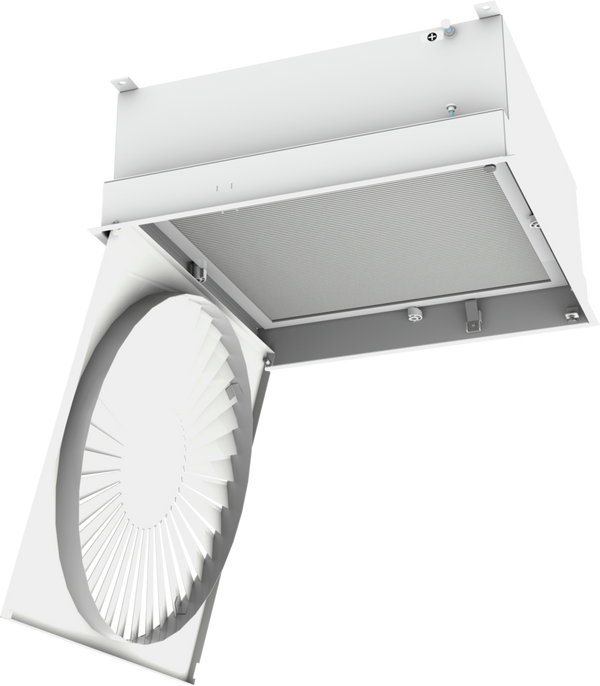

- Diffuser face plate can be hinged down
- Filter change with patented turn clip
- Supports for mounting in false ceilings

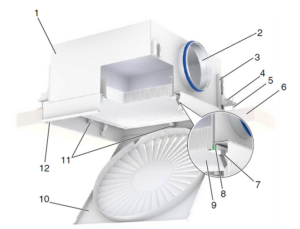

Construction features
- Welded filter casing with sealing frame for fitting filter elements, with a seal on the downstream side
- Mounted pressure measuring points for monitoring the operating differential pressure and internal measuring tube
Material and surfaces
- Casing and diffuser face plate made of sheet steel, powder-coated RAL 9010, pure white
Commissioning
- Fitting of filter elements with a fluid seal on the downstream side
- Pressing of the filter element is performed using four patented turn clips
- Air diffuser is hinged and held in place by magnets; no additional tools required
Standards and guidelines
- Hygiene meets the requirements of VDI 6022, VDI 3803, DIN 1946 Part 4, ÖNORM H 6021 and ÖNORM H 6020, SWKI VA 104-01 and SWKI 99-3, and EN 16798
Maintenance
- Diffuser face can be hinged down for easy disassembly and cleaning
- Cleaning is possible with installed particulate filter (seal on downstream side)
- Easy replacement of filter elements thanks to special frame profile, no additional fluid sealing frame
