Description

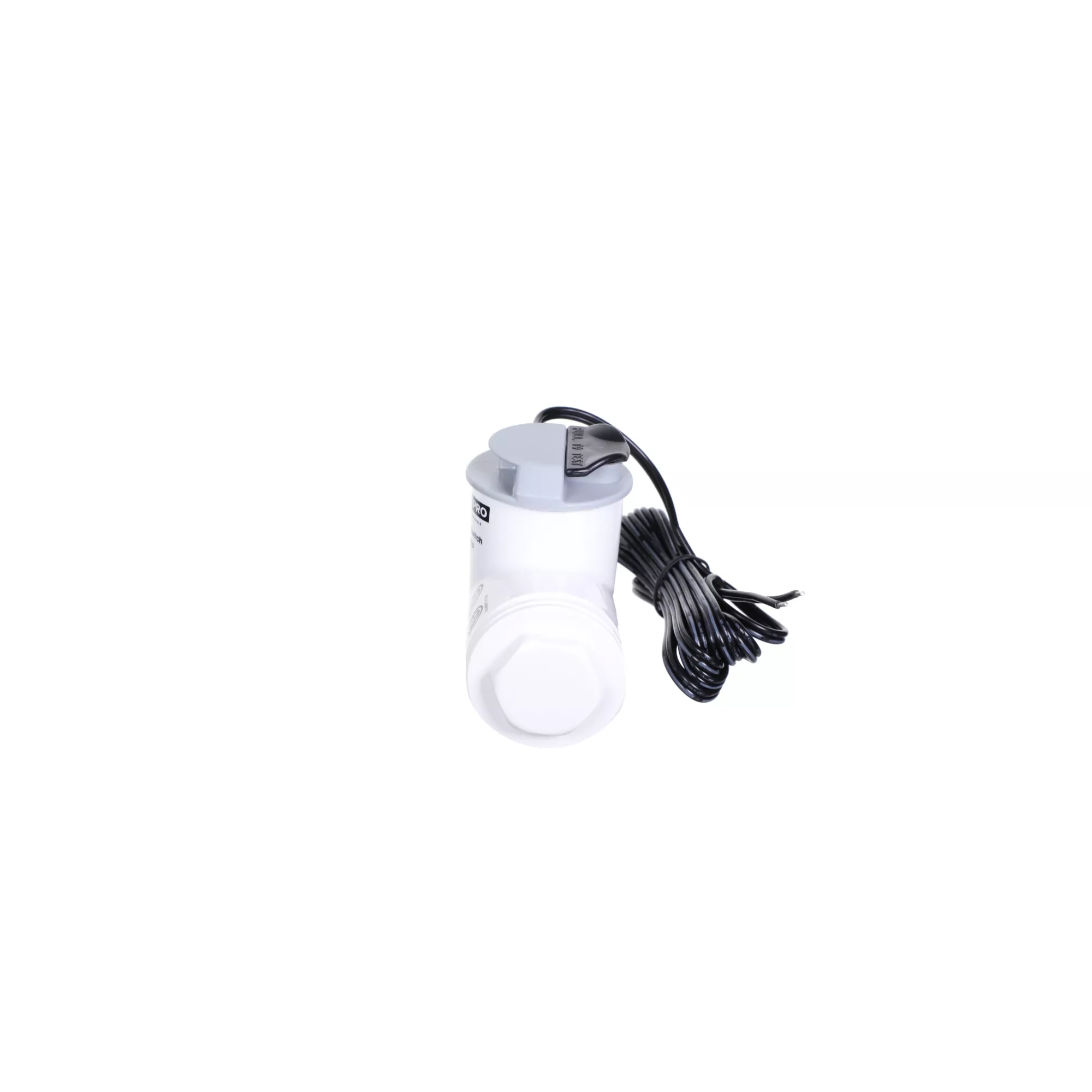

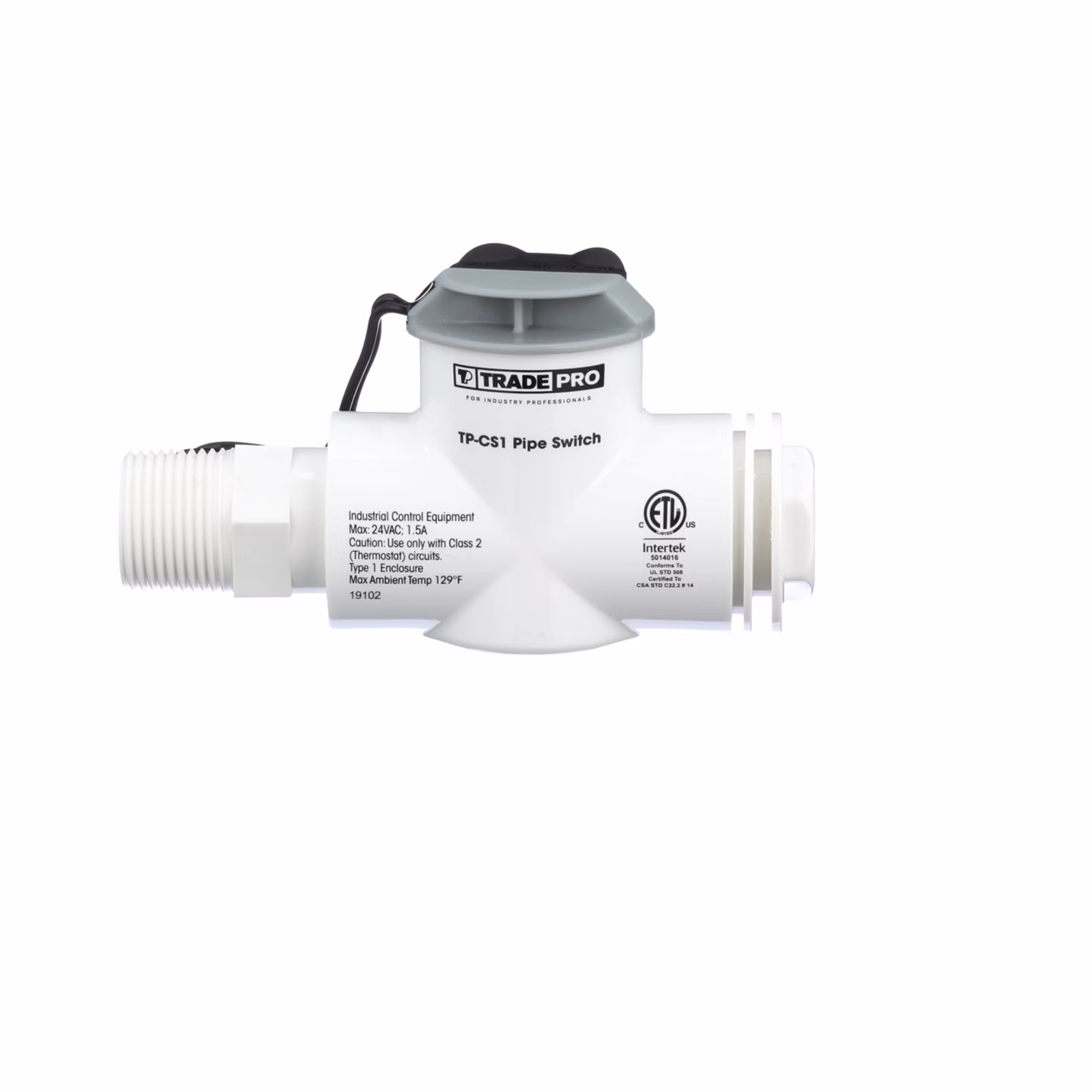

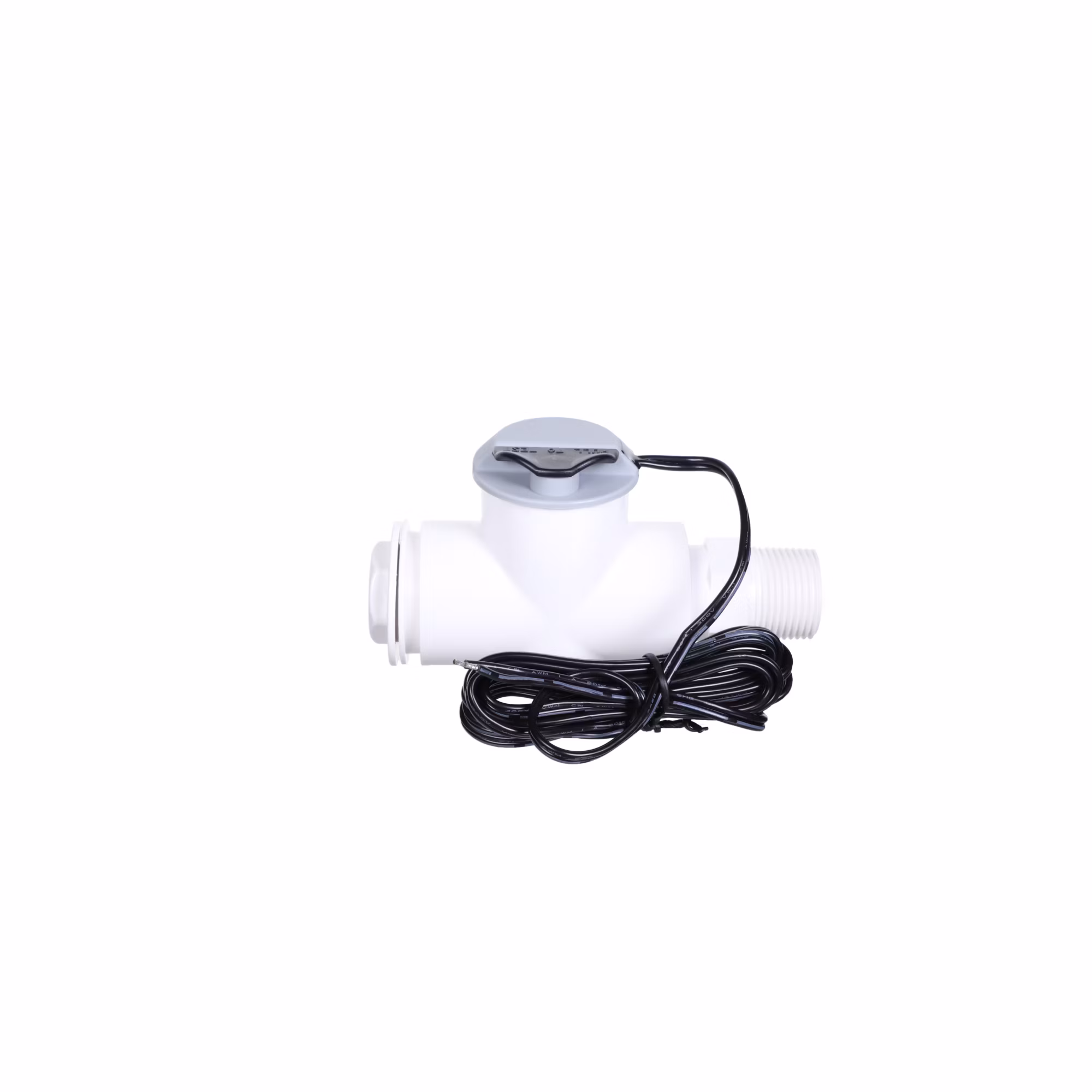

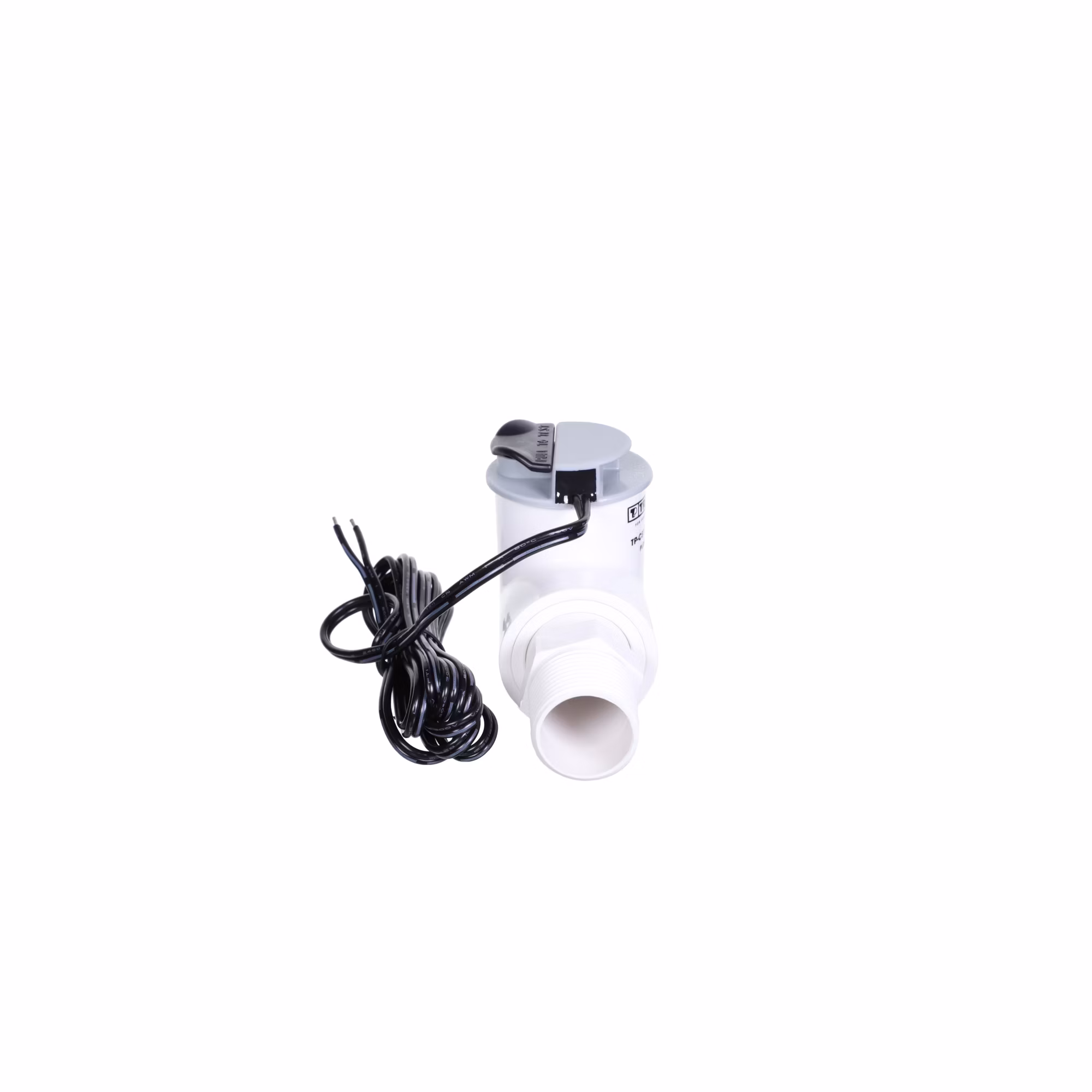

TP-CS1 TRADEPRO – Pipe-Mounted Tee Switch – E:Mail: sales@walkair.us to confirm availability or for volume discounts
The CS-1 Pipe-Mounted Tee Switch is simple to install and service, and extremely reliable. Three installation configurations include pipe inline, on drain pan and 90 degrees. As water level in the drain pipe rises due to a clogged air conditioning condensate drain, the switch shuts off the system, preventing water from overflowing and causing damage to doors, walls and ceilings. The durable, precise magnetic reed switch will not rust, operating smoothly every time.
Features:
- This switch shuts down the HVAC system to prevent flood damage
- For standard and plenum rated installations in primary or auxiliary lines
- LED illuminates when condensate line is blocked
- Built-in protection against power surges increases reliability
- Three installation configurations for increased flexibility
| Attributes | |
|---|---|
| Approvals | UL Listed; ETL Listed; CSA Standard |
| Brand | TRADEPRO® |
| Color | Black, White |
| Composition | Plastic |
| Connection Size | 3/4″ |
| Cord Length | 6′ |
| Country of Origin | MEX |
| Cubic Measurement | 0.0289 |
| Dimensional Weight | 14 |
| EAN | 0095247167418 |
| For Use With | Auxiliary or main drain pipe |
| Maximum Amps Running | 1.5 |
| Mounting Type | Primary |
| Mounts | Yes |
| Plenum Rated | Yes |
| Prop 65 | Yes |
| Size | 5″ x 4″ |
| Switch Type | Magnetic Reed |
| Type | Condensate Switch – Tee |
| UOM | EA |
| UPC | 095247167418 |
| Voltage | 24 VAC |
| Wire Gauge | 18 AWG |
