Description

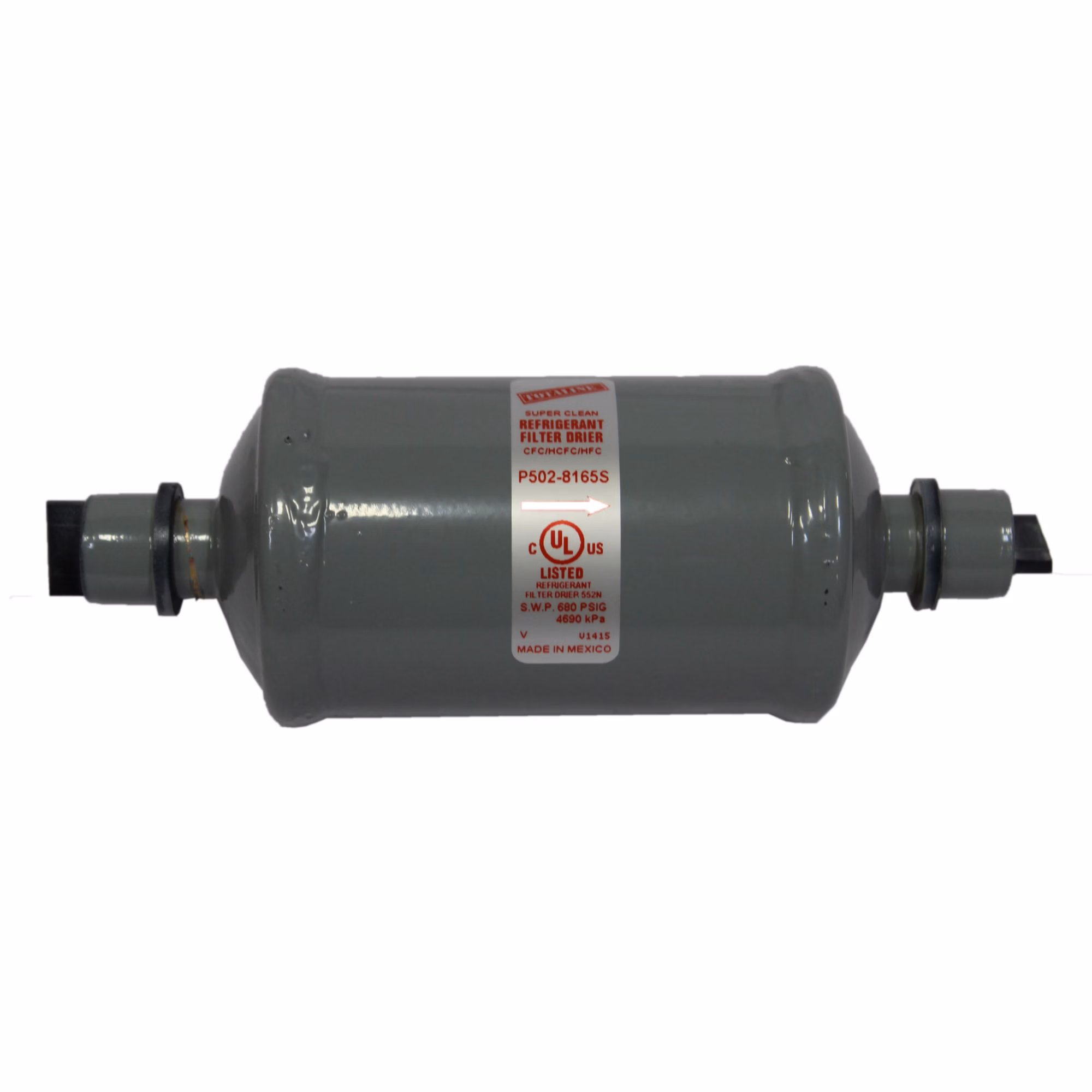

Totaline – P502-8165S – Liquid Line Filter Drier 16 CI 5/8″ ODF
Standard Features
- Compacted bead filter drier with a fine, 20 Micron outlet pad for maximum filtration
- Universal Replacement CFC, HCFC & HFC refrigerants
- filtration first for more effective use of surface area of desiccant
- Solid copper fitting for easy installation
Specifications
| Dimensions | |
|---|---|
| Length | 2.4 Inches (in) |
| Width | 7.2 Inches (in) |
| Height | 1.5 Inches (in) |
| Weight | 1.25 Pounds (lbs) |
| Attributes | |
| Brand | TOTALINE® |
| CSA Listing | Yes |
| Composition | 75% molecular sieve, 25% activated alumina forhigh moisture, acid capacity |
| Connection Type | Sweat or Braze |
| Country of Origin | MEX |
| Cubic Measurement | 0.015 |
| Dimensional Weight | 1 |
| GTIN | 00662441165658 |
| Inlet Connection Size | 5/8″ |
| Line Drier Type | P502-8 Series |
| Maximum Working Pressure | 680 |
| Outlet Connection Size | 5/8″ |
| Overall Length | 6.55 |
| Prop 65 | No |
| Refrigerant | R-134a; R-404A; R-507A |
| UL Listed | Yes |
| UL Recognized | Yes |
| UOM | EA |
| UPC Barcode | 662441165658 |
