Description

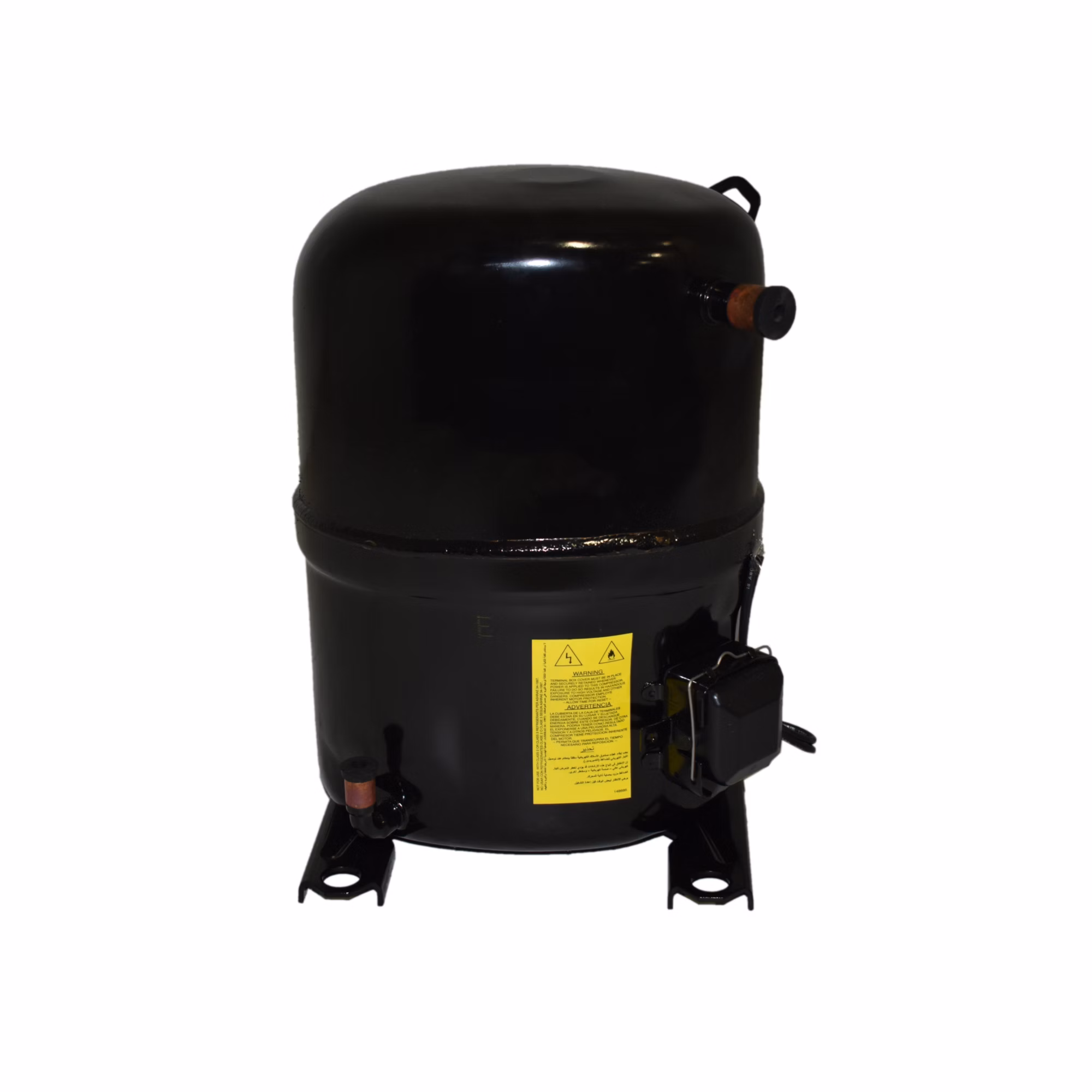

TOTALINE – P032-3172 – Compressor H22J333Dbva – E:Mail: sales@walkair.us to confirm availability or for volume discounts
TOTALINE? – Compressor
| Attributes | |
|---|---|
| Amps | 3.43-4.31 |
| BTU Output | 31,600 |
| Brand | TOTALINE? |
| Compressor Housing | Hermetic |
| Compressor Type | Reciprocating |
| Condensing Temperature | 100?F (37.78?C); 110?F (43.33?C);130?F (54.44?C) |
| Country of Origin | USA |
| Cubic Measurement | 1.5107 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 20 |
| Discharge Connection Size OD | 1/2″ |
| Displacement | 3.36 (in^3/Rev) |
| EAN | 0822529396040 |
| Evaporating Temperature | 45?F (7.22?C) |
| GTIN | 00822529396040 |
| Liquid Temperature | 85?F (29.44?C); 95?F (35?C); 115?F (46.11?C) |
| Locked Rotor Amps (LRA) | 42, 40 |
| Mounting Dimensions | 7.5″ x 7.5″ |
| OPT Code | P032-3172 |
| Oil Charge Initial (oz.) | 30 |
| Oil Type | Polyolester (POE) |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 4.5 |
| Refrigerant | R-22 |
| Return Gas Temperature | 50?F (10?C), 65?F (18.33?C), 70?F (21.11?C), 95?F (35?C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 3/4″ |
| UOM | EA |
| UPC | 822529396040 |
| Voltage | 380-415/460 VAC |
