Description
Totaline – HTRB253ABCS Reciprocating Compressor 2 Ton – E:Mail: sales@walkair.us to confirm availability or for volume discounts

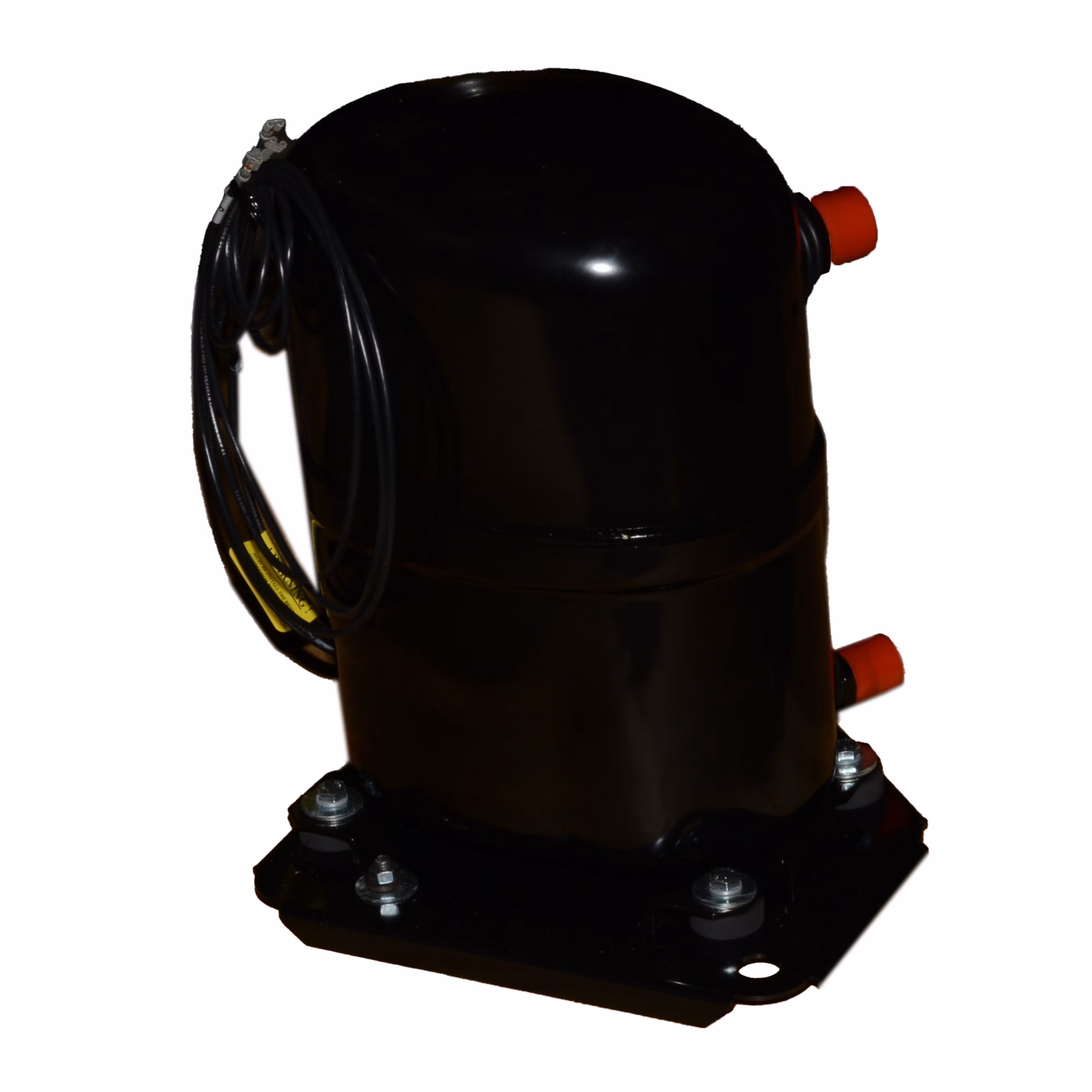

Totaline? – HTRB253ABCS Reciprocating Compressor 2 Ton
- Drop-in Replacements for Copeland CR Series
- Same triangular mounting and rotolock configuration as Trane, American Standard, and Maneurop
- Wiring harness included
- Low noise & vibration levels
- POE Oil
| Attributes | |
|---|---|
| Amps | 7.58-9.55 |
| BTU Output | 23,000 |
| Brand | TOTALINE? |
| Compressor Housing | Hermetic |
| Compressor Type | Reciprocating |
| Condensing Temperature | 100?F (37.78?C); 110?F (43.33?C);130?F (54.44?C) |
| Country of Origin | USA |
| Cubic Measurement | 3.75 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 47 |
| Discharge Connection Size OD | 1″ |
| Displacement | 2.697 (in3/Rev) |
| EAN | 0822529718446 |
| Evaporating Temperature | 45?F (7.22?C) |
| GTIN | 00822529718446 |
| Liquid Temperature | 85?F (29.44?C); 95?F (35?C); 115?F (46.11?C) |
| Locked Rotor Amps (LRA) | 51 |
| Mounting Dimensions | 7.5″ x 8.2″ |
| Oil Type | Mineral (MO) or Polyolester (POE) |
| Phase | Single |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 9.6 |
| Refrigerant | R-22 ; R-407C |
| Return Gas Temperature | 50?F (10?C), 65?F (18.33?C), 70?F (21.11?C), 95?F (35?C) |
| Sound Level (dBA) | 73.8 |
| Suction Line Fitting Type | Rotolock |
| Suction Line Size (OD) | 1 1/4″ |
| UOM | EA |
| UPC | 822529718446 |
| Voltage | 208-230 VAC |
