Description

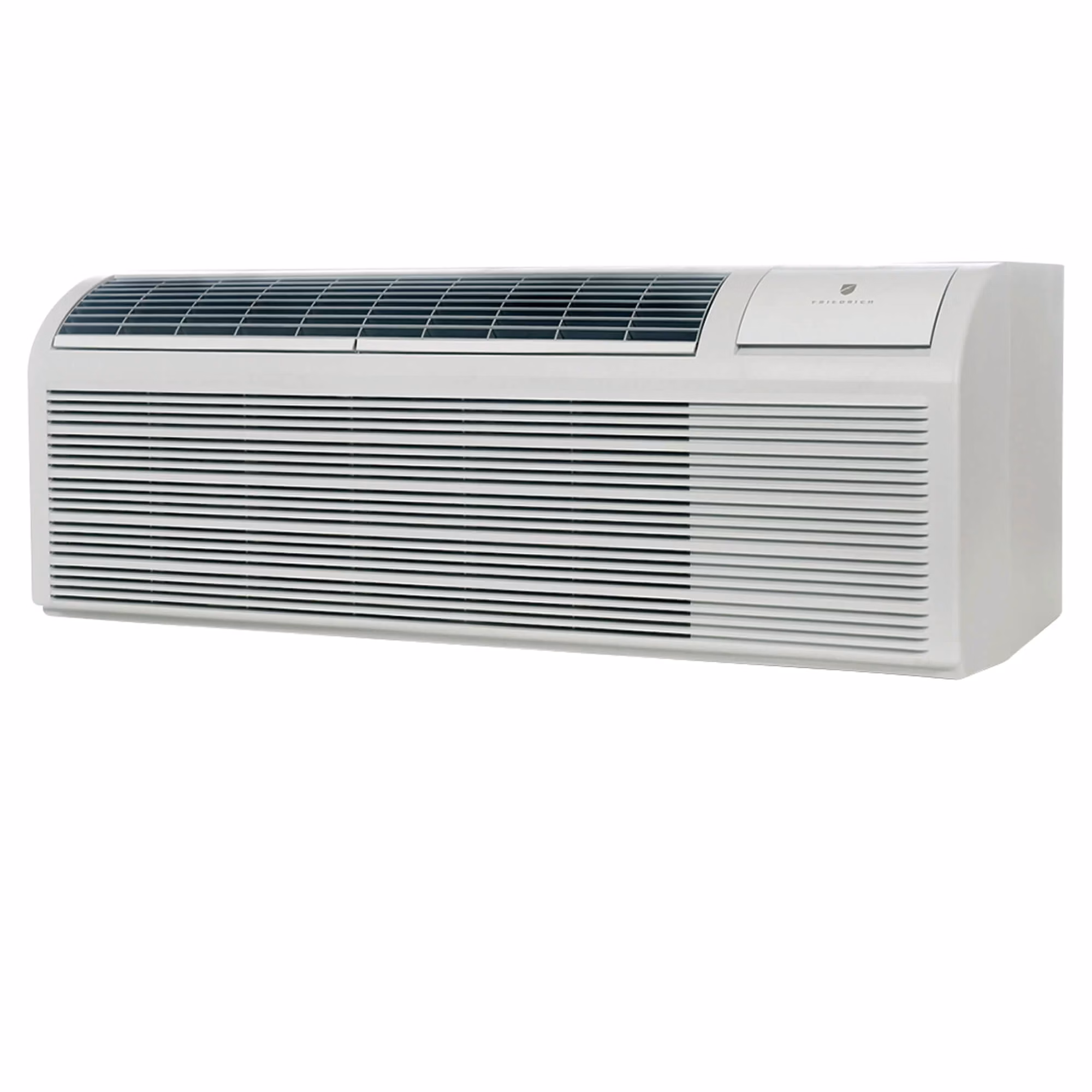

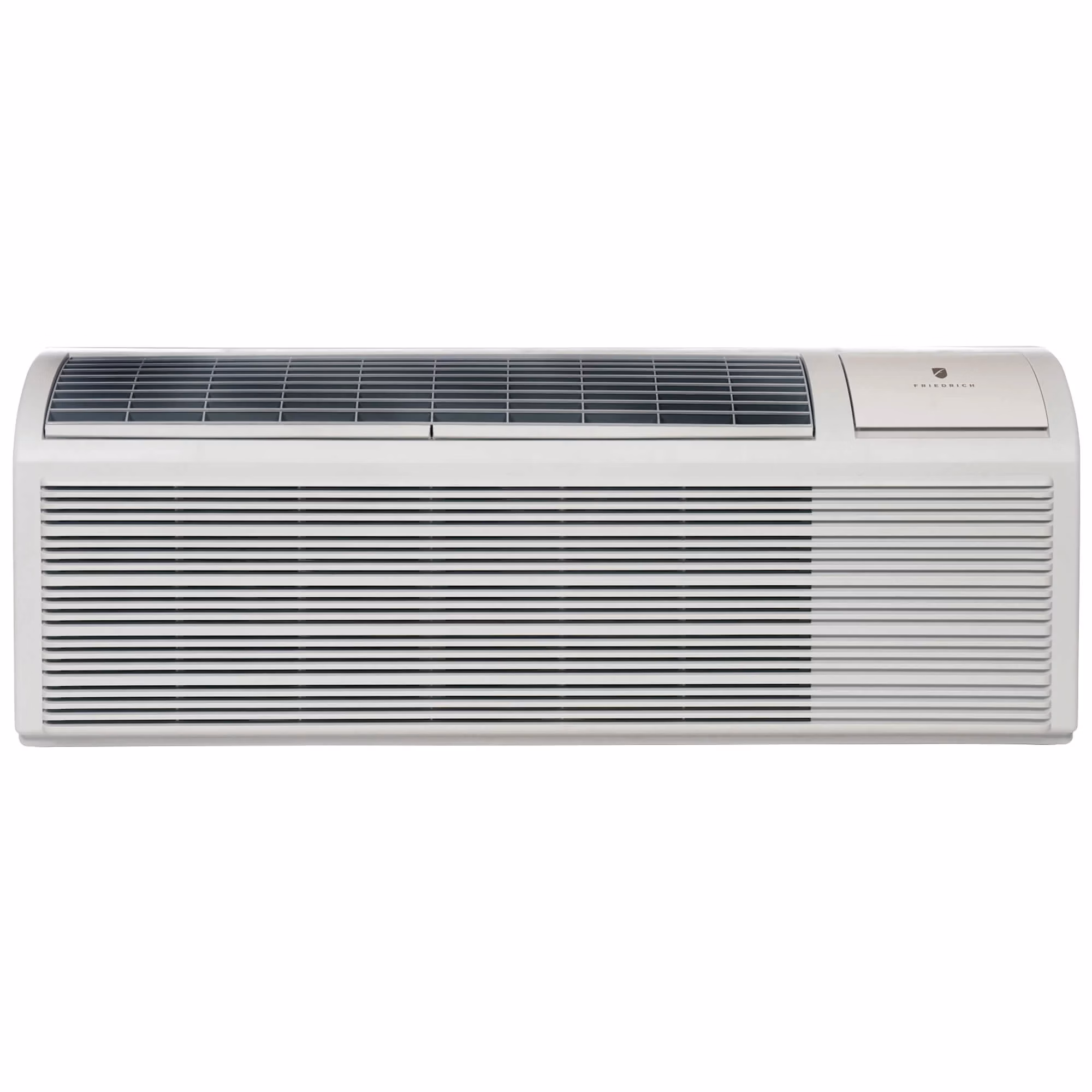

PZH09K3SC Friedrich – 9,200 BTU Class Select Series PTAC Air Conditioner with Heat Pump – 20 Amp – 230 Volt – R32 Refrigerant – E:Mail: sales@walkair.us to confirm availability or for volume discounts
ZoneAire Select PTAC 9K BTU Heat Pump, Cooling w/ 3.5 kW Electric Heat, 208/230V – R32
| Attributes | |
|---|---|
| Approvals | ETL Listed |
| Blower Motor RPM | 850-1,000 |
| Blower Motor Speeds | 2 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Motor Watts | 60 |
| Brand | Friedrich |
| CFM | 330-390 |
| Color | Friedrich Cool Gray |
| Compressor Type | Rotary |
| Condenser Motor HP | 7/100 |
| Condenser Motor RPM | 1,600 |
| Condenser Motor Speeds | 3 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Condenser Motor Watts | 104 |
| Cooling Capacity | 9,000-9,200 |
| Country of Origin | CHN |
| Cycle/Hertz | 60 Hz |
| EER | 11.4 |
| Electric Heat Range [kW] | 3.6 |
| Energy Star Rated | NO |
| Fan Diameter | 13.75 |
| Heating Capacity | 7,800-8,000 |
| Inverter | NO |
| Maximum Overcurrent Protection (MOCP) | 20 |
| Phase | Single |
| Product Family | PZH |
| Prop 65 | YES |
| Refrigerant | R-32 |
| Stages Cooling | 1 |
| Stages Heating | 1 |
| Tonnage | 0.75 |
| UPC | 724587445923 |
| Voltage | 208-230 VAC |
