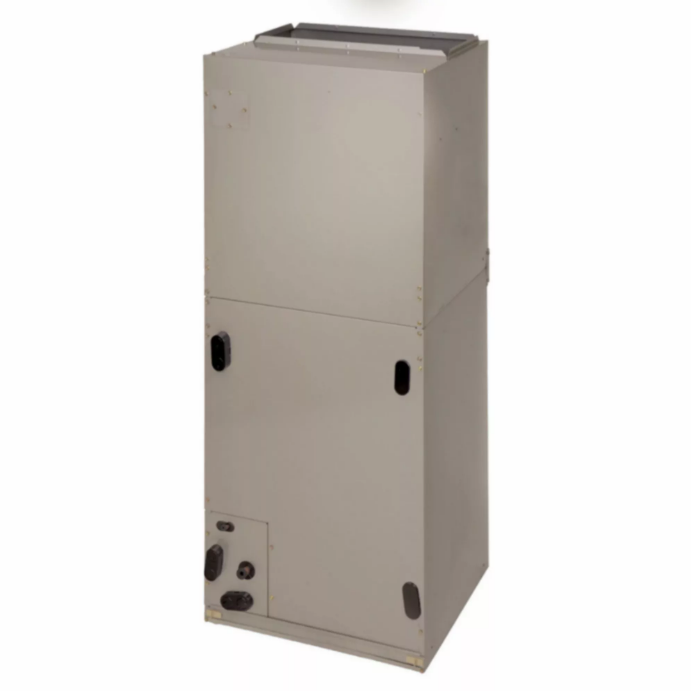

PF5MNXA18L00 1.5 Ton Residential Fan Coil Multipoise R-454B (Aluminum Coil) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
PF5MNXA18L00
PF5 = Fan Coil, Multipoise with R-454B / Product Type
N = 208/230v, 1 ph, 60 Hz / Electrical
X = Singular, TXV / Cabinet/Expansion Device
A = 14.3” / Cabinet Width
18 = 18,000 / Capacity
00 = Heater Size
L = Aluminum Coil
AIR HANDLER TECHNOLOGY AT ITS FINEST
The PF5M fan coil has the proven technology of fan coil units with R-454B refrigerant as well as vertical and horizontal applications. The design features contoured condensate pans with rugged drain connections, ensuring that little water is left in the unit at the end of the cooling duty cycle. The lack of standing condensate and corrosion free pans improves IAQ and product life, features homeowners appreciate.
Standard features include grooved tubing and louvered fins. Coil circuiting has also been updated to make the most of heat pumps and air conditioners. Units come with solid state fan controls, 1-inch (25mm) thick insulation with R-value of 4.2, multi-speed motors, and fully-wettable coils.
Assembled at the factory compliant with low leak requirements of less than 2% cabinet leakage rate at 0.5 inches W.C. and 1.4% cabinet leakage rate at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
The PF5M fan coil design is loaded with popular features. These fan coils utilize the latest in electronic commutation motor (ECM) technology through the use of high efficiency, multi-tap ECM motors allowing reliable air delivery with increased static pressure. It comes in a pre-painted (taupe metallic) galvanized steel casing. The unit is shipped with a R-454B refrigerant TXV (sizes 18–60).
STANDARD FEATURES
- Refrigerant leak detection dissipation system for added safety
- Multi-tap ECM (electronic commutating motor) motors – all sizes.
- Integrated motor controls, with 90-sec off TDR function, have replaced integrated circuit board.
- Five available speed tags to meet a wide range of applications.
- Large, grooved tube, louvered fin coils.
- Efficient, quiet, time-tested blower housings and diffusers.
- Sturdy, drainable condensate pans.
- Construction innovations designed to prevent cabinet sweating.
- Tested for condensate disposal in much tougher conditions than Air Conditioning and Refrigeration Institute requirements.
- Super-thick R-4.2 insulation with vapor barrier.
- Pre-painted galvanized steel cabinet (taupe metallic).
- Design meets stringent regulations for cabinet air leakage of less than 2% when tested at 0.5 inches W.C., and less than 1.4% at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
- Horizontal hanging provisions on cabinet. • Newly improved filter rack area filter door insulation added for improved air seal. No tools required to access filter.
- 3 through 30 kW accessory heaters – field installed.
- Easy plug-in provisions for heater installation.
- Entry options for high and low voltage wiring hook-up.
- Leak-preventing sweat connections.
- Factory installed thermostatic expansion valve, TXV, on all coils.
- Designed for manufactured housing applications.
WARRANTY
- Default 5-year parts limited warranty:
- – 10-year parts limited warranty with timely registration*.
- Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners, except in jurisdictions where laws dictate otherwise.
See Warranty certificate for complete details and restrictions.
| Attributes | |
|---|---|
| Air Flow Direction | Multi-Position |
| Approvals | UL Listed |
| Blower Motor HP | 1/3 |
| Blower Motor Speeds | 5 (Five) |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Brand | WeatherMaker®, Bryant®, Payne® |
| CFM | 525 |
| Cabinet Width | 14.31 |
| Color | Taupe Metallic |
| Cooling Capacity | 18,000 |
| Cooling Rated Capacity (Btu/h) | 18000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Electric Heat Range [kW] | 3-10 |
| Energy Star Rated | No |
| Filter Size | 13″ x 20 |
| Heat Pump Compatible | Yes |
| Includes Filter Rack | Yes |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Maximum Overcurrent Protection (MOCP) | 15 |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1PPF5MNXA18L00 |
| Phase | Single |
| Product Family | PF5M |
| Prop 65 | Yes |
| Refrigerant | R-454B |
| Stage | (1) Single |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 5/8″ |
| Tonnage | 1.5 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
