Description

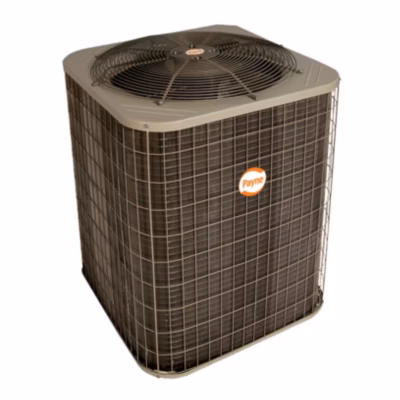

Payne® 2 1/2 Ton 14 SEER Split System Heat Pump Condenser with R-410A Refrigerant
STANDARD FEATURES
Efficiency
- 14 SEER / 11.5 – 11.7 EER / 8.2 HSPF
- Microtube Technology refrigeration system
- Indoor air quality accessories available
Sound
- Sound level as low as 69 dBA
- Sound levels as low as 68 dBA with accessory sound blanket
Comfort
- System supports programmable or standard thermostat controls
Reliability
- R-410A refrigerant
- Scroll compressor
- Internal pressure relief valve
- Internal thermal overload
- High pressure switch
- Loss of charge switch
- Filter drier
- Balanced refrigeration system for maximum reliability
Durability
- Solid, durable sheet metal construction
- Wide or dense wire coil guard
Applications
- Long-line – up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Longline Guide for more information.)
- Low ambient (down to -20°F/-28.9°C) with accessory kit
Specifications
| Attributes | |
|---|---|
| Approvals | UL Listed; UL Recognized |
| Brand | Payne® |
| CFM | 2,600 |
| COP | 3.58 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 16 |
| Condenser Fan Discharge | Vertical |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/10 |
| Condenser Motor RPM | 1,100 |
| Condenser Motor Speeds | 1 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 29,400 |
| Cooling Rated Capacity (Btu/h) | 30000 |
| Country of Origin | Varies |
| Cubic Measurement | 17.9067 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 290 |
| EER | 11.5-12.5 |
| Energy Star Rated | true |
| Equipment Type | Heat Pump |
| Full Load Amps | 1.4 |
| HSPF | 8.2 |
| Heating Capacity | 30,000 |
| Inverter | false |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Locked Rotor Amps (LRA) | 72.5 |
| Maximum Overcurrent Protection (MOCP) | 30 |
| Maximum Piping Length | 250′ |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1PPH14NB030000 |
| Phase | Single |
| Product Family | PH14NB |
| Prop 65 | true |
| Rated Load Amps (RLA) | 13.5 |
| Refrigerant | R-410A |
| SEER | 14 |
| SEER Filter | 14 |
| Sound Level (dBA) | 77 |
| Stages Cooling | 1 |
| Stages Heating | 1 |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 3/4″ |
| Tier | Standard |
| Tonnage | 2.5 |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230 VAC |
