Description

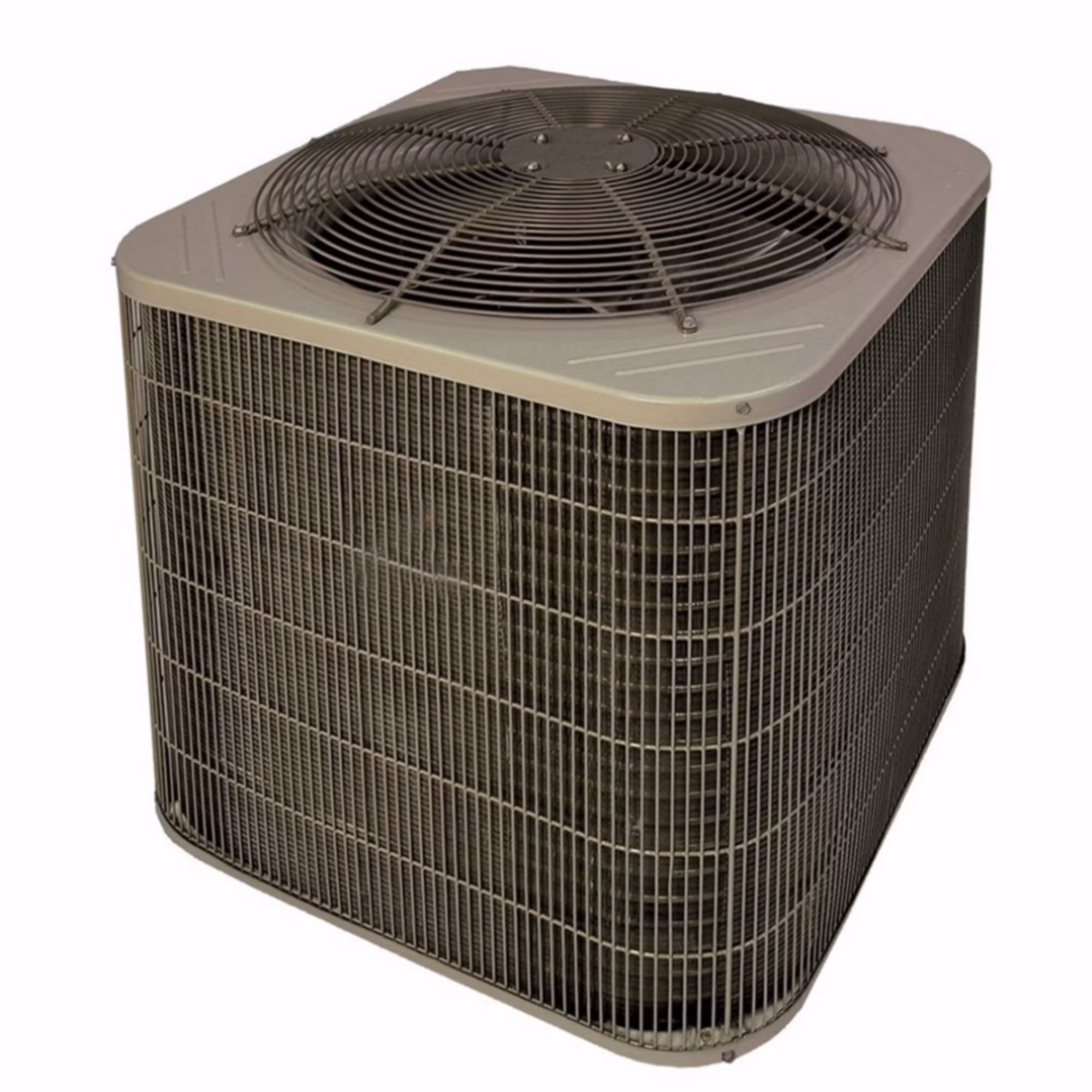

PA5SAN53600W 3 Ton Up to 16.5 SEER2 Air Conditioner Condenser Unit (R-454B) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
PA5SAN53600W
P = Builder / Brand Type
A = AC / OD Type
5 = 14.3 SEER2
S = Single-Stage / OD Design Type
A = Major Iteration
N = 208/230-1 / Voltage
5 = R-454B / Refrigerant
36 = 36,000 BTUH (3 Tons) / Nominal Capacity
0 = Standard / Feature
0 = Standard / Special Feature
W = Standard SW AC / Region
This unit has been designed utilizing non-ozone depleting, low global warming potential R-454B refrigerant.
Air conditioners with R-454B refrigerant provide a collection of features unmatched by any other family of equipment.
NOTE: Ratings are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
Features / Benefits
Efficiency
- 13.8 – 17.0 SEER2 / 11.2 – 14.5 EER2
- Microchannel Technology refrigeration system
- Indoor air quality accessories available
Comfort
- System supports programmable or standard thermostat controls
Reliability
- Non-ozone depleting, low global warming potential R-454B refrigerant
- Scroll compressor
- Internal pressure relief valve
- Internal thermal overload
- Filter drier
Durability
Protection Package:
- Solid, durable sheet metal construction
- Dense wire coil guard
Applications
- Long–line – up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
- Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.
Limited Warranty
- 5-year parts limited warranty (including compressor and coil)
- 10-year parts limited warranty (including compressor and coil) with timely registration*
- – Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners except in jurisdictions where applicable laws dictate otherwise.
See warranty certificate for complete details and restrictions.
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Brand | WeatherMaker®, Bryant®, Payne® |
| CFM | 3,830 |
| Color | Taupe |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 20 |
| Condenser Fan CFM | 3800 |
| Condenser Motor HP | 1/10 |
| Condenser Motor RPM | 825 |
| Condenser Motor Speeds | 1 (Single) |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 36,000 |
| Cooling Rated Capacity (Btu/h) | 36000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| EER2 | 11.2-14.5 |
| Energy Star Rated | Yes |
| Full Load Amps | 0.7 |
| Inverter | No |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Locked Rotor Amps (LRA) | 75 |
| Maximum Piping Length | 250′ |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1PPA5SAN53600W |
| Phase | Single |
| Product Family | PA5SAN5 |
| Prop 65 | Yes |
| Rated Load Amps (RLA) | 13.5 |
| Refrigerant | R-454B |
| SEER2 | 14.3-16.5 |
| Solid Waste Tax | Yes |
| Sound Level (dBA) | 53-72 |
| Stages Cooling | (1) Single |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 5/8″, 3/4″ or 7/8 |
| Tonnage | 3 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
