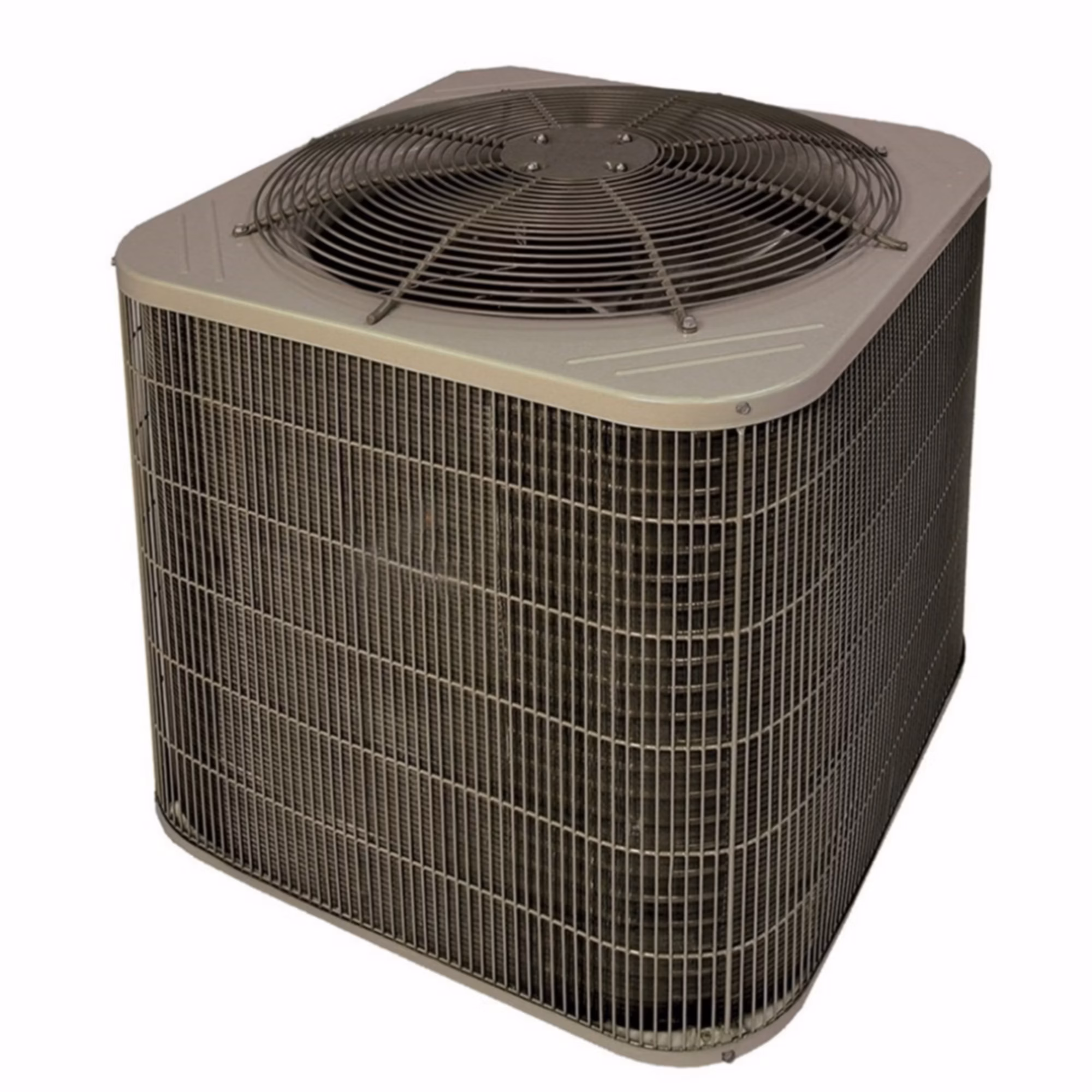

PA4SAN52400N 2 Ton 13.4 SEER2 Residential Air Conditioner Condensing Unit – E:Mail: sales@walkair.us to confirm availability or for volume discounts
PA4SAN52400N
P = Generic / Branding
A = AC / OD Type
5 = SEER2
S = Single-Stage / OD Design Type
A = Major Iteration / Major Series
N = 208/230-1 / Voltage
5 = R-454B / Refrigerant
24= 24,000 BTUH (2 Tons) / Nominal Capacity
0 = Standard / Feature
0 = Standard / Special Feature
N = Standard North AC / Region
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Brand | WeatherMaker®, Bryant®, Payne® |
| CFM | 700-900 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 25 |
| Condenser Fan CFM | 1800 |
| Condenser Motor HP | 1/12 |
| Condenser Motor RPM | 1,100 |
| Condenser Motor Speeds | 1 (Single) |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 24,000 |
| Cooling Rated Capacity (Btu/h) | 24000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| EER2 | 11-13.5 |
| Energy Star Rated | No |
| Full Load Amps | 0.5 |
| Inverter | No |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Locked Rotor Amps (LRA) | 59.5 |
| Maximum Overcurrent Protection (MOCP) | 25 |
| Maximum Piping Length | 250′ |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Phase | Single |
| Product Family | PA4S |
| Prop 65 | Yes |
| Rated Load Amps (RLA) | 11.7 |
| Refrigerant | R-454B |
| SEER2 | 13.4-16 |
| Solid Waste Tax | Yes |
| Sound Level (dBA) | 74 |
| Stages Cooling | (1) Single |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 3/4″ |
| Tonnage | 2 |
| Voltage | 208-230 VAC |
