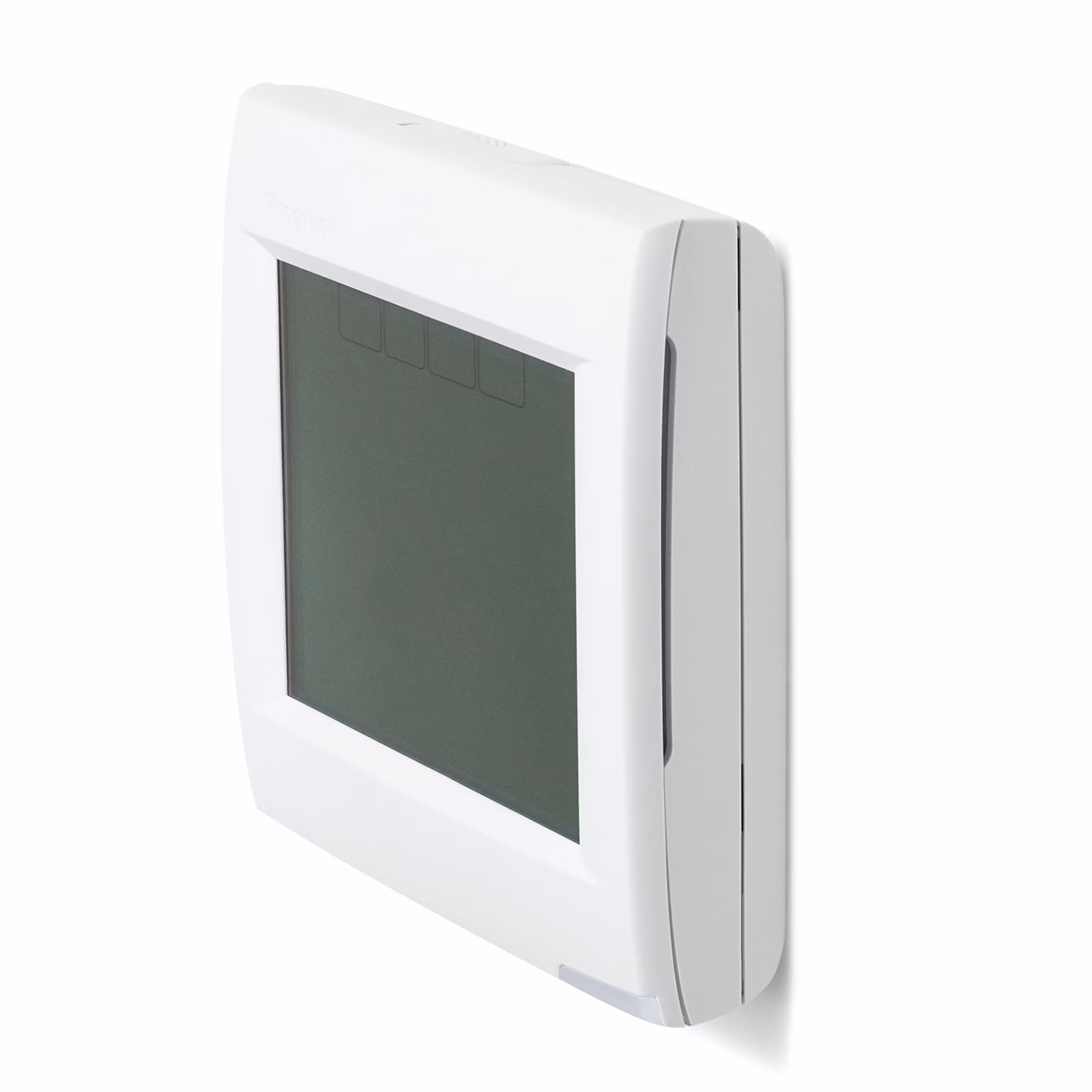

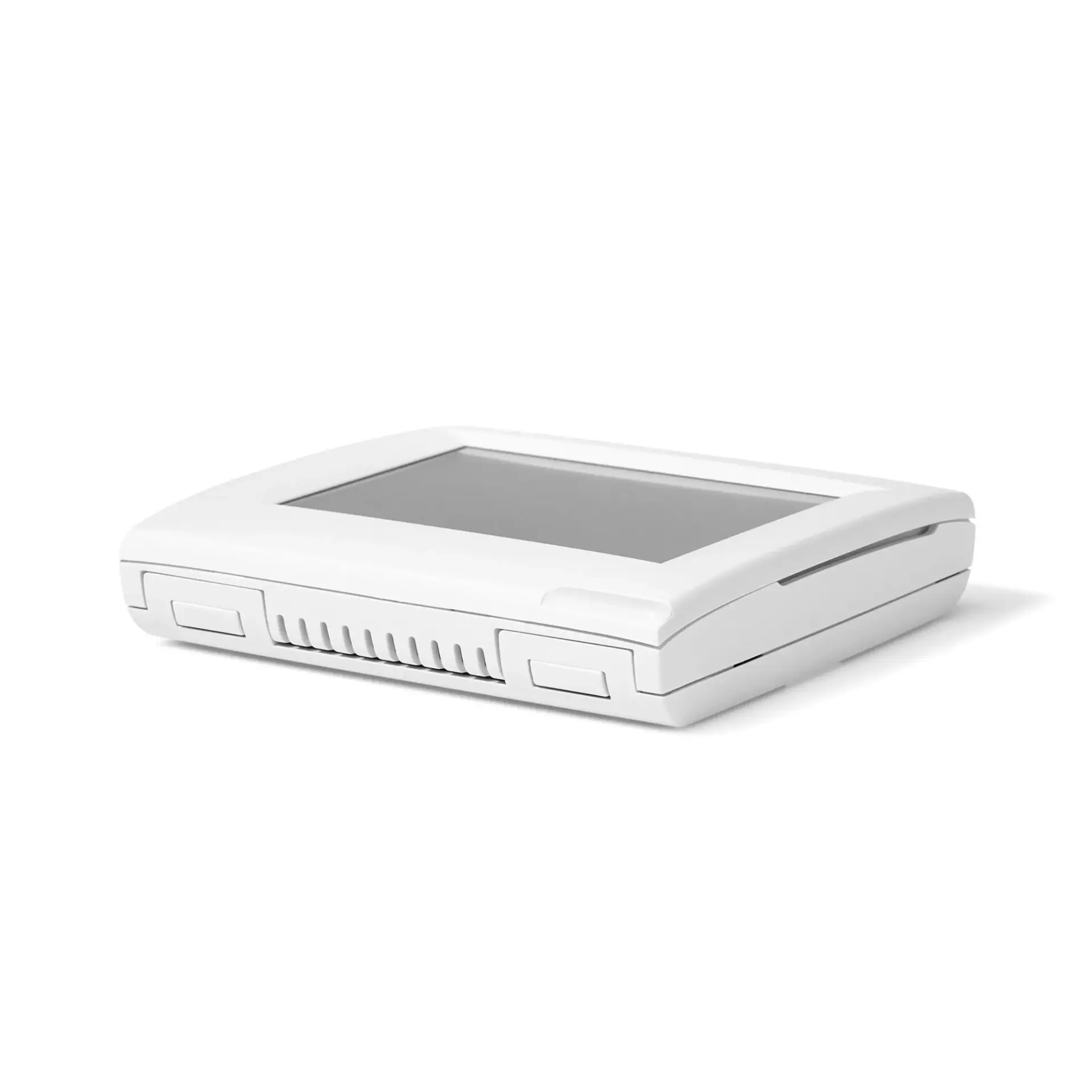

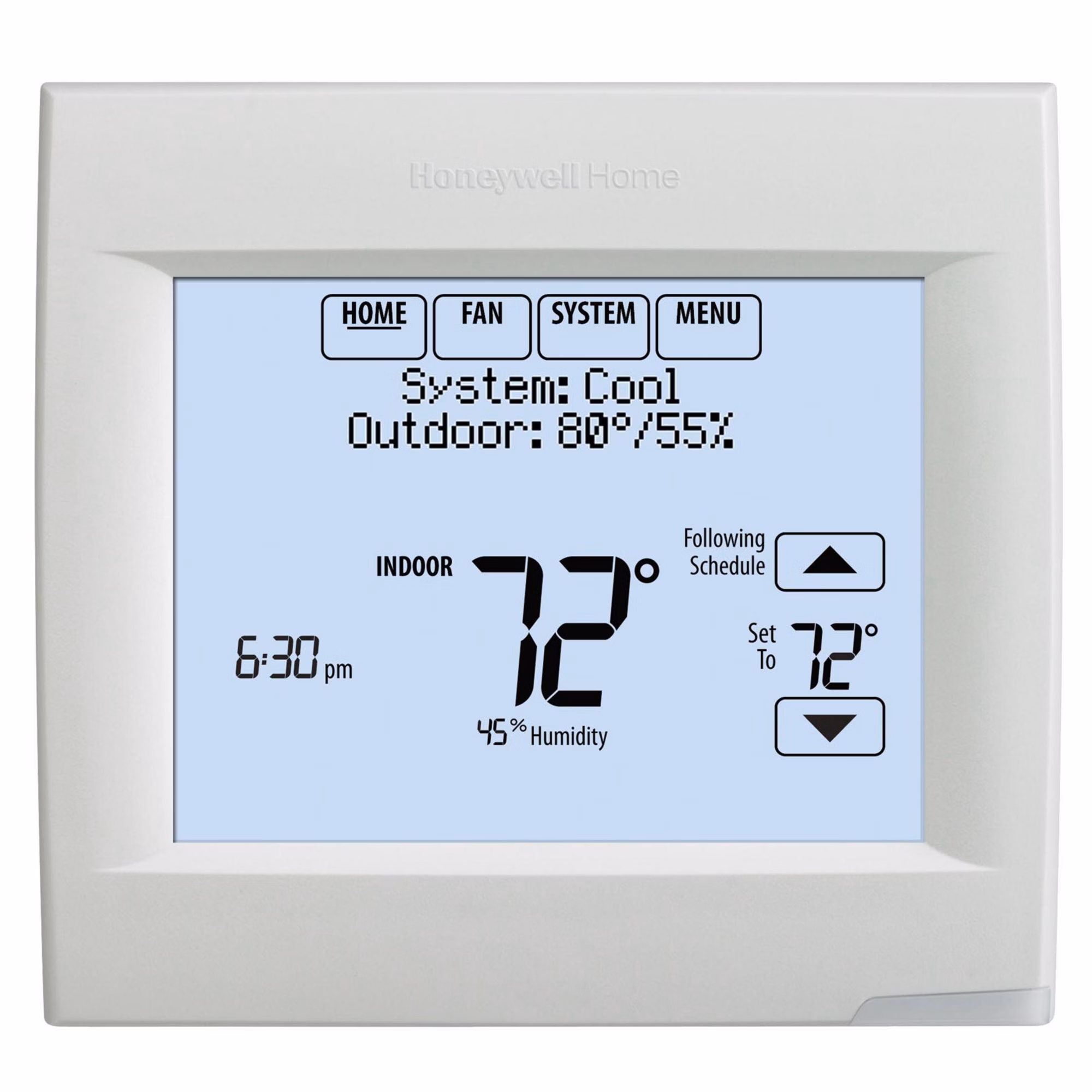

TH8110R1008 Honeywell Home – VisionPRO 8000 w/ RedLINK 1H/1C – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Honeywell – VisionPRO® 8000 with RedLINK is a 7 day programmable touchscreen thermostat that is selectable for residential or light commercial use. The thermostat can be wired directly to the equipment, used with the THM5421R1021 Equipment Interface Module or used with the THM4000R1000 TrueZONE Wireless Adaptor. Works with the RedLINK accessories including the RedLINK Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote and Wireless Vent and Filter Boost Remote.
Features:
- Thermostat works standalone or with the THM5421R1021 Equipment Interface Module or with the TrueZONE Wireless Adaptor
- Smart Schedule – programs in seconds for any lifestyle
- Patented interview based programming and installer setup
- RedLINK wireless communication
| Attributes | |
|---|---|
| 750mV Compatible | YES |
| Accuracy | +/- 1°F |
| Ambient Temperature Range | 32°F to 120°F (0°C to 48.89°C) |
| Auto Changeover | NO |
| Backlit | YES |
| Batteries Included | NO |
| Battery Backup | YES |
| Brand | Honeywell Home |
| Built-In Wi-Fi | NO |
| Change/Check Reminders | YES |
| Color | Arctic White |
| Country of Origin | MEX |
| Cubic Measurement | 0.0149 |
| Daylight Savings Time Ready | YES |
| Digital | YES |
| Digital-Non Programmable | YES |
| Digital-Programmable | YES |
| Dimensional Weight | 1 |
| Display | YES |
| Display Options | Backlit, Digital |
| Display Size | 10 sq in |
| Displays Outdoor Temperature | YES |
| Dual Transformer Compatible | YES |
| Electrical Connection Type | Screw terminals |
| Electrical Rating | 18-30 VAC |
| Fan Switching | YES |
| Heat Pump Compatible | YES |
| Humidification | YES |
| Indoor Remote Sensor | YES |
| Language | English |
| Low Battery Indicator | YES |
| Manual | YES |

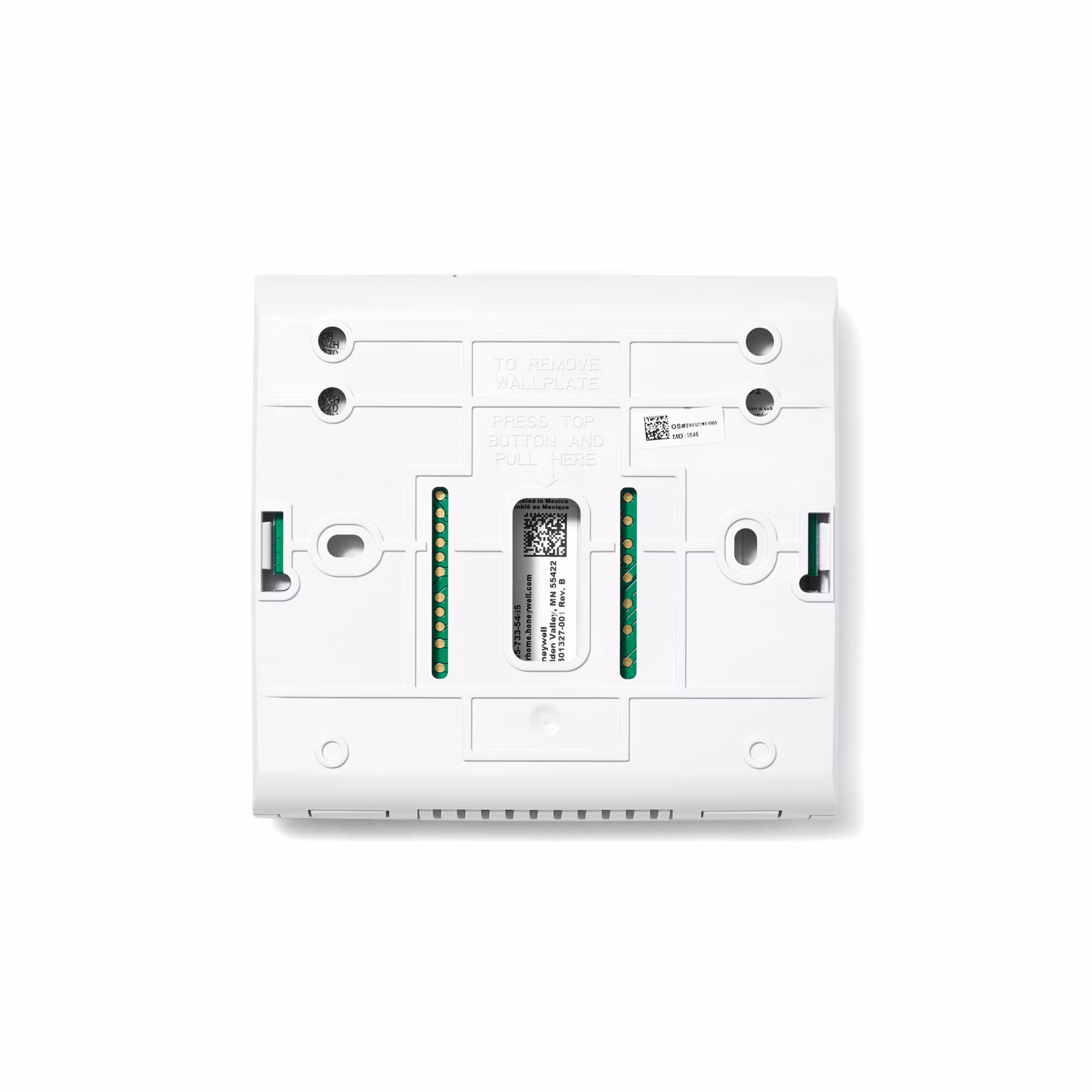

| Mounting Type | Thermostat mounts directly on the wall in the living space using mounting screws and anchors provided. Fits a horizontal 2 x 4 in. junction box. Equipment Interface Module (EIM) mounts on HVAC equipment or on a wall in the equipment room. |
| Operating Temperature Range | 32°F to 120°F (0°C to 48.8°C) |
| Power Method | Battery; Hardwired |
| Programmable Fan | YES |
| Prop 65 | NO |
| Removable Interface | NO |
| Stages Cooling | 1 |
| Stages Heating | 1 |
| System Switching | YES |
| Temperature Range | Heat: 40°F to 90°F (4.44°C to 32.22°C), Cool: 50°F to 99°F (10°C to 37.22°C) |
| Temperature Settings per Day | 4 |
| Terminal Designations | R, RC, C, W-O/B, Y, G, K, S1 S1 |
| Touchscreen | YES |
| UOM | EA |
| UPC | 085267444316 |
| Vacation Mode | YES |
| Voltage | 18/30 VAC |
| Works with Google Assistant | YES |
| Works with Rheem EcoNet | NO |
