Description

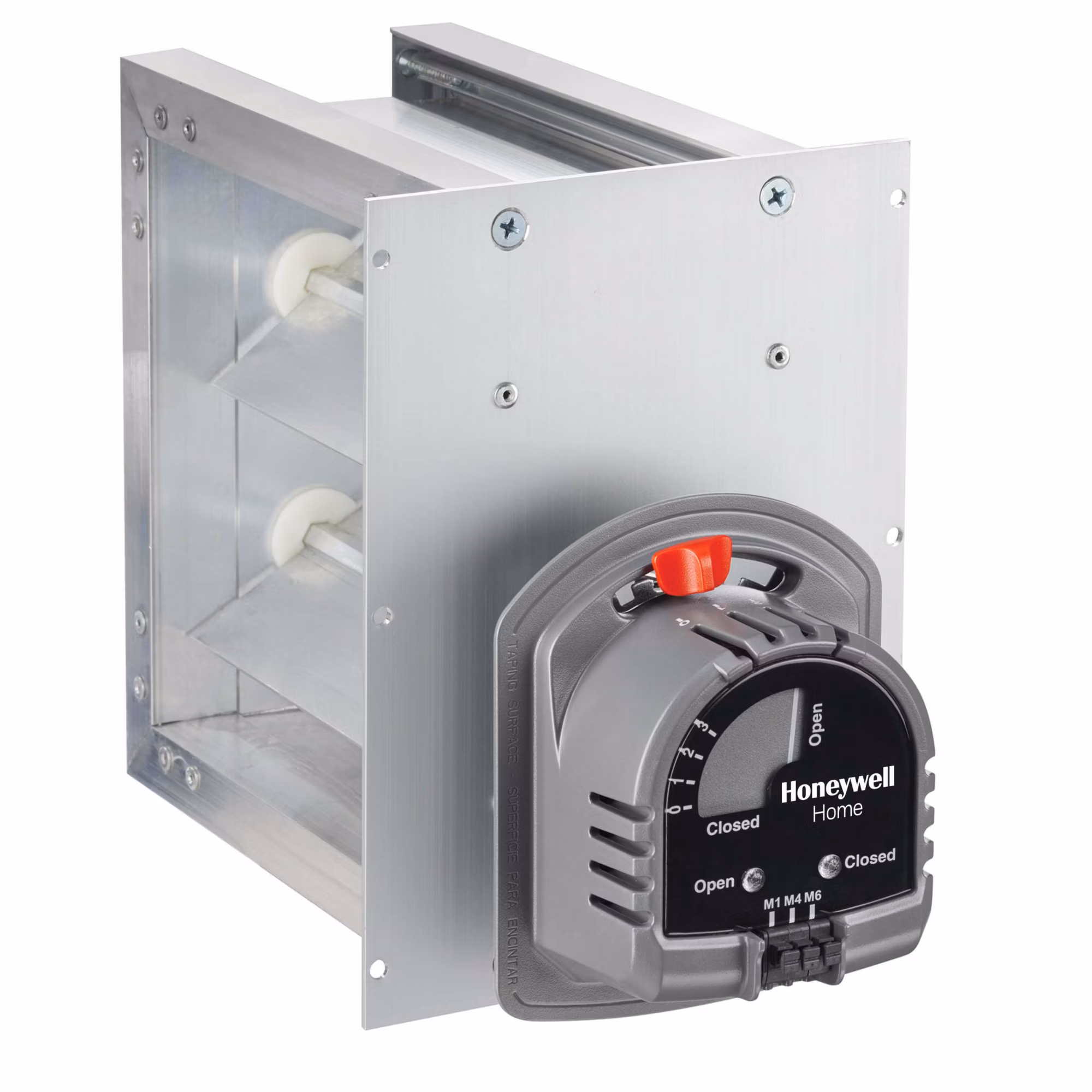

ZD6X16TZ/U Honeywell Home – 6 in. x 16 in. Parallel Blade Damper – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Features
- Mechanical visual position indicator for damper status.
- Solid construction using extruded aluminum frame and blades.
- Parallel blade design for low leakage performance.
- Simple, easy-to-wire, two-wire installation.
- Reliable, strong, 24-volt spring-return motor.
- Fail-safe, normally open operation.
- Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is an 8 in. x 10 in. damper that has the motor on the 10 in. side.
- Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
| Attributes | |
|---|---|
| Brand | Honeywell Home |
| Color | Aluminum |
| Composition | Extruded Aluminum frame, blades |
| Country of Origin | MEX |
| Cubic Measurement | 0.9404 |
| Cycle/Hertz | 60 Hz |
| Damper Type | Zone |
| Dimensional Weight | 13 |
| Emergency Heat Switch | NO |
| Heat Pump Compatible | NO |
| Mounting | Can be installed in any orientation (mounting side can be on either the bottom or the side of the duct). |
| Network Zoning | YES |
| Phase | Single |
| Prop 65 | NO |
| Shape | Rectangle |
| Size | 6″ x 16″ |
| UPC | 085267137584 |
| Voltage | 24 VAC |
