Description

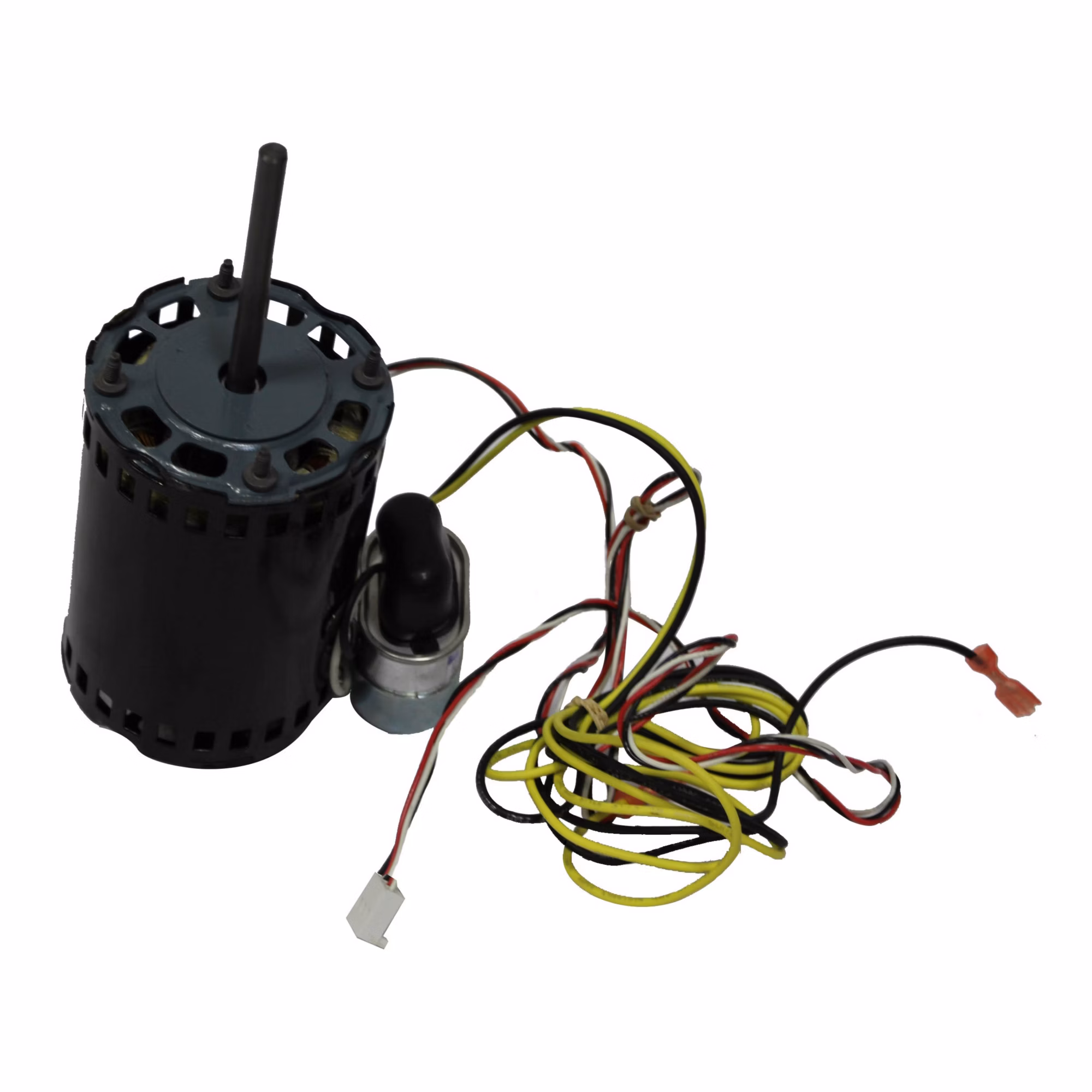

HC30CL460 Factory Authorized Parts – Induced Draft Motor 1/16 HP 400-460 V 0-1/2 Amp 2875-3450 RPM – E:Mail: sales@walkair.us to confirm availability or for volume discounts
When looking for replacement motors, look no further than our Factory Authorized Parts (FAP)! FAP are designed to meet exact Carrier? Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
FAP Features
- Improved Efficiency – Motor runs at most efficient portion of motor performance curve by design
- Ensures motor is not overloaded
- Ensures that motor operates at the design RPM, which produces the correct airflow
- Reduced System Vibration – System design put motor RPM at optimal point for limiting torque pulsations that can generate excess vibration in the unit
- Reduced Noise – System qualification includes additional testing such as start/stop and pure tone noise identification which further ensures there is not excessive vibration or noise during unit operation.
- Overall length of motor assures that fan is located at intended position to minimize sound
| Attributes | |
|---|---|
| Amps | 0.25 |
| Approvals | CSA Listed; UL Recognized |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.0807 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 2 |
| GTIN | 00822529278551 |
| Insulation Class | B |
| Motor Enclosure | Open |
| Motor HP | 1/16 |
| Mounting Type | Thru-Bolt |
| NEMA Frame | 48Y |
| Phase | Single |
| Prop 65 | NO |
| RPM | 3,450 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.3125″ (5/16″) |
| Shaft Length | 3.3″ |
| UOM | EA |
| UPC | 822529278551 |
| Voltage | 460 VAC |
