Description
Genuine Carlyle – 06DS3286BC3650 Compressor Medium-High Temp – E:Mail: sales@walkair.us to confirm availability or for volume discounts

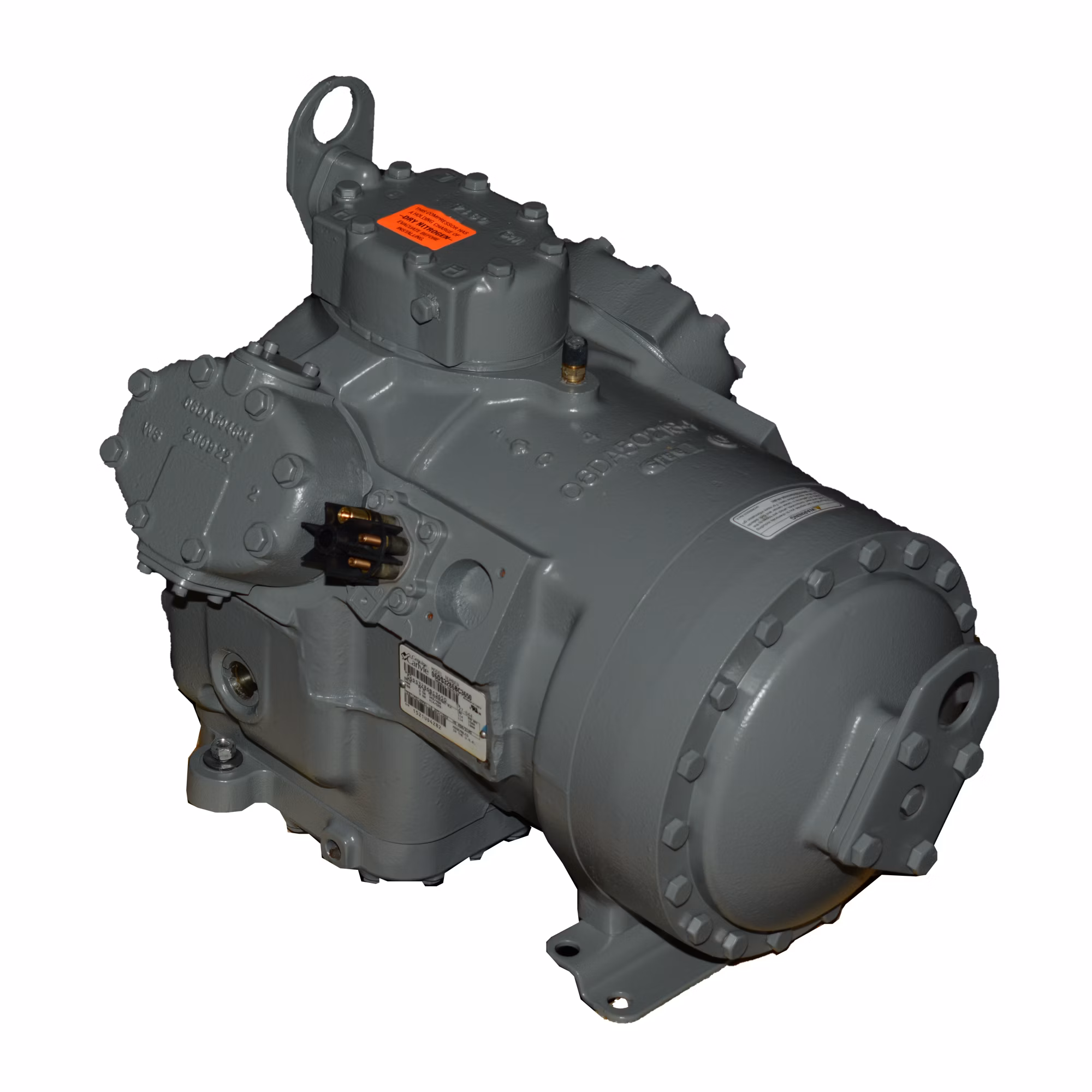

Genuine Carlyle – 06DS3286BC3650 Compressor Medium-High Temp
High-flow, automatically reversible oil pump provides positive-displacement oil lubrication. Crankcase venting system equalizes pressure during startup and assures oil return to sump. Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts. Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency. High-efficiency valves provide increased refrigerant flow and lower pressure drops. Electronic oil-pressure switch.
| Attributes | |
|---|---|
| Amps | 31 |
| Approvals | CSA Listed; UL Listed |
| BTU Output | 127,800 |
| Brand | Carlyle |
| CFM | 28 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Reciprocating |
| Country of Origin | USA |
| Cubic Measurement | 6.7882 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 91 |
| Discharge Connection Size OD | 1 1/8″ |
| Discharge Connection Type | Sweat or Braze |
| GTIN | 00822529754833 |
| Locked Rotor Amps (LRA) | 114 |
| Mounting Dimensions | 8 22/25″ – 11 19/50″ x 12 39/50″ |
| OPT Code | 06DS3286BC3650 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 24 |
| Overload Type | Thermal |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 22.1, 19.9 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 1 3/8″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 400/460 VAC |
