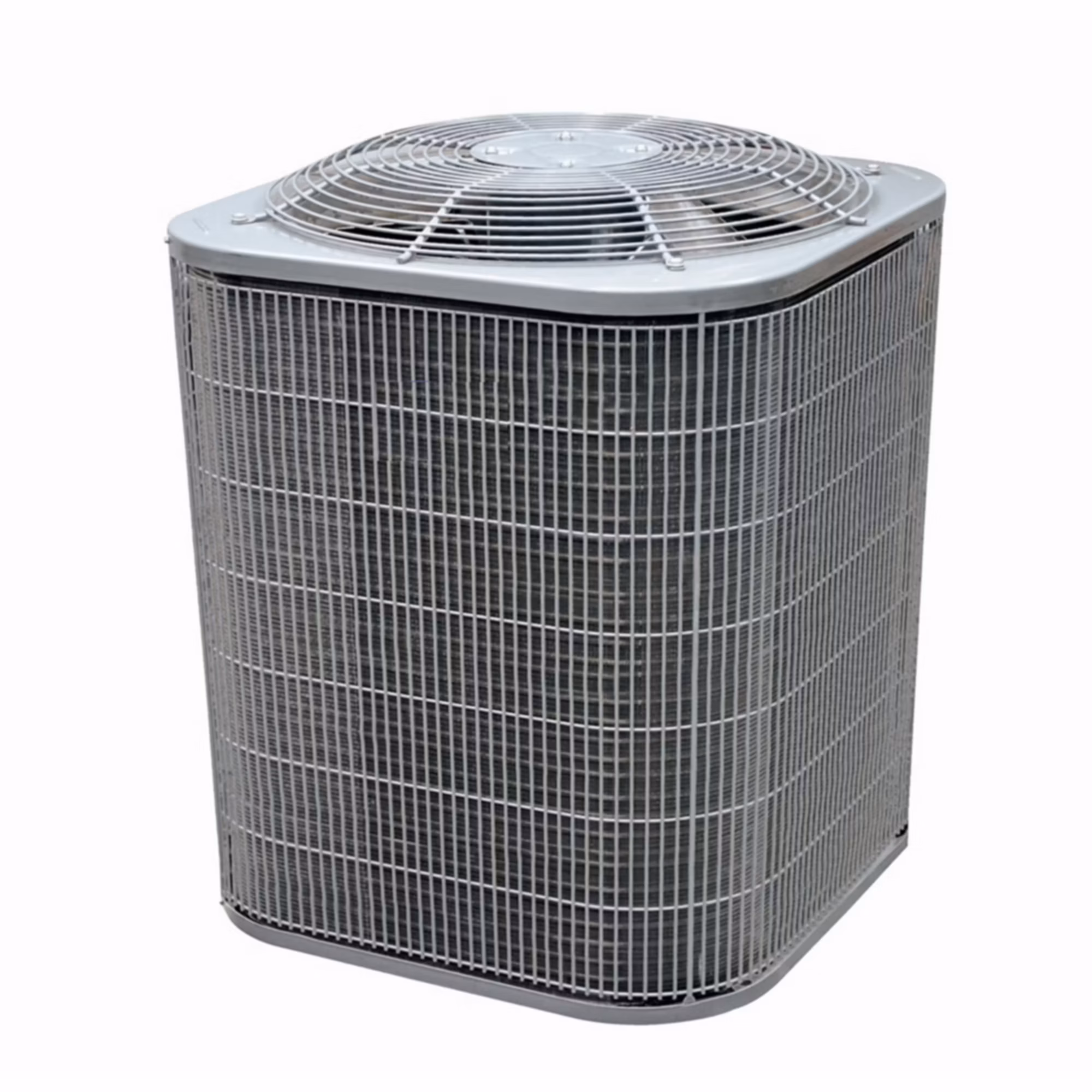

GA4SAN53600N 3 Ton Up to 15.5 SEER2 Air Conditioner Condenser Unit R-454B – E:Mail: sales@walkair.us to confirm availability or for volume discounts
GA4SAN53600N
G = Builder / Brand Type
A = AC / OD Type
4 = 13.4 SEER2
S = Single Stage / OD Design Type
A = Initial Series / Major Series
N = 208/230-1 / Voltage
5 = R-454B / Refrigerant
36 = 36,000 Btuh (3 Tons) / Nominal Capacity
0 = Standard / Feature
0 = Standard / Special Feature
N = North AC / Region
This unit has been designed utilizing non-ozone depleting, low global warming potential Puron Advance™ refrigerant. Air conditioners with Puron Advance™ refrigerant provide a collection of features unmatched by any other family of equipment.
NOTE: Ratings are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
Features / Benefits
Efficiency
- 13.4 – 16.0 SEER2 / 11.0 – 13.5 EER2
- Indoor air quality accessories available
Comfort
- System supp
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Brand | Carrier®, Bryant® |
| CFM | 2,800 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 20 |
| Condenser Fan Blade Diameter | 24 |
| Condenser Fan CFM | 2800 |
| Condenser Fan Discharge | Vertical |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/10 |
| Condenser Motor RPM | 825 |
| Condenser Motor Speeds | 1 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 36,000 |
| Cooling Rated Capacity (Btu/h) | 36000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| EER2 | 11-13.5 |
| Energy Star Rated | YES |
| Full Load Amps | 0.6 |
| Inverter | NO |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Locked Rotor Amps (LRA) | 82.5 |
| Maximum Overcurrent Protection (MOCP) | 30 |
| Maximum Piping Length | 250′ |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1PGA4SAN53600N |
| Phase | Single |
| Product Family | GA4SAN5 |
| Prop 65 | YES |
| Rated Load Amps (RLA) | 13.5 |
| Refrigerant | R-454B |
| SEER2 | 13.4-15.5 |
| Sound Level (dBA) | 71-73 |
| Stages Cooling | 1 |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 7/8″ |
| Tier | Sentry |
| Tonnage | 3 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
