Description

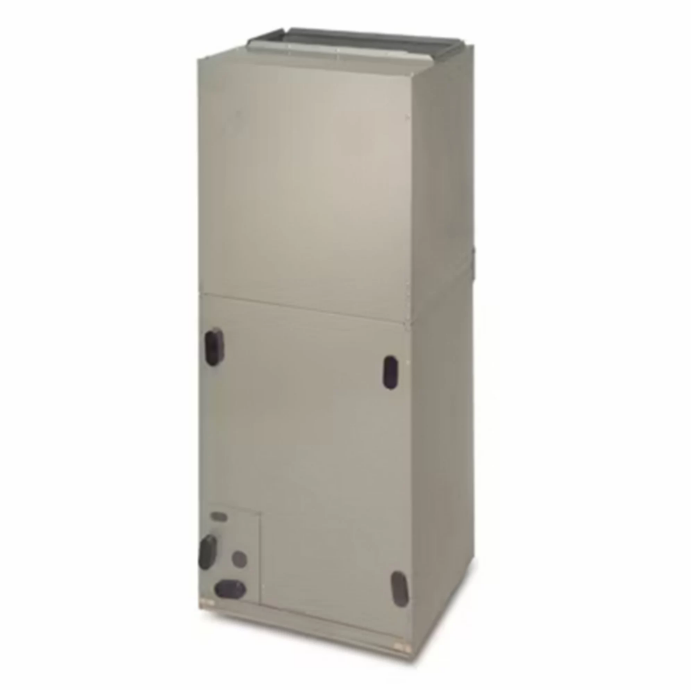

FT5ANBC36L00 3 Ton Residential Fan Coil Communicating Variable-Speed Multipoise R-454B (Aluminum Coil) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
FT5ANBC36L00
F = Fan Coil
T = Performance Series ™, Variable Speed Constant Airflow ECM Motor
5 = Puron Advance (R-454B) Refrigerant
A = Original Series
N = 208/230-1-60
B = Modular (2pc), TXV
C = Cabinet Width 21″
36 = 36,000
L00 = Aluminum
FEATURE
- Puron Advance®, chlorine-free, non-ozone depleting refrigerant
- Refrigerant leak detection dissipation system for added safety
- Thermostatic Expansion Valve (TXV) designed to maximize performance with Puron Advance® refrigerant
- Variable Speed Constant Airflow ECM (Electronically Commutating Motor)
- Ultra low power consumption during fan only operation
- Unmatched humidity control, especially with Carrier’s thermostat with relative humidity controls
- InteliSense™ Board to maximize comfort, efficiency, and safe heater airflow operation
- Overflow feature for slope coil units allows condensate to exit the unit without damage to product under clogged primary and secondary line conditions
| Attributes | |
|---|---|
| Air Flow Direction | Multi-Position |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | Variable |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Brand | Bryant®, Carrier® |
| CFM | 700-1,225 |
| CFM Heating | 700-1,225 |
| Cabinet Width | 21 |
| Color | Gray |
| Cooling Capacity | 36,000 |
| Cooling Rated Capacity (Btu/h) | 36000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Energy Star Rated | No |
| Filter Size | 20″ x 20 |
| Includes Filter Rack | Yes |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Maximum Overcurrent Protection (MOCP) | 15 |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1PFT5ANBC36L00 |
| Phase | Single |
| Product Family | FT5 |
| Prop 65 | Yes |
| Refrigerant | R-454B |
| Stage | (2) Two |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 3/4″ |
| Tonnage | 3 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
