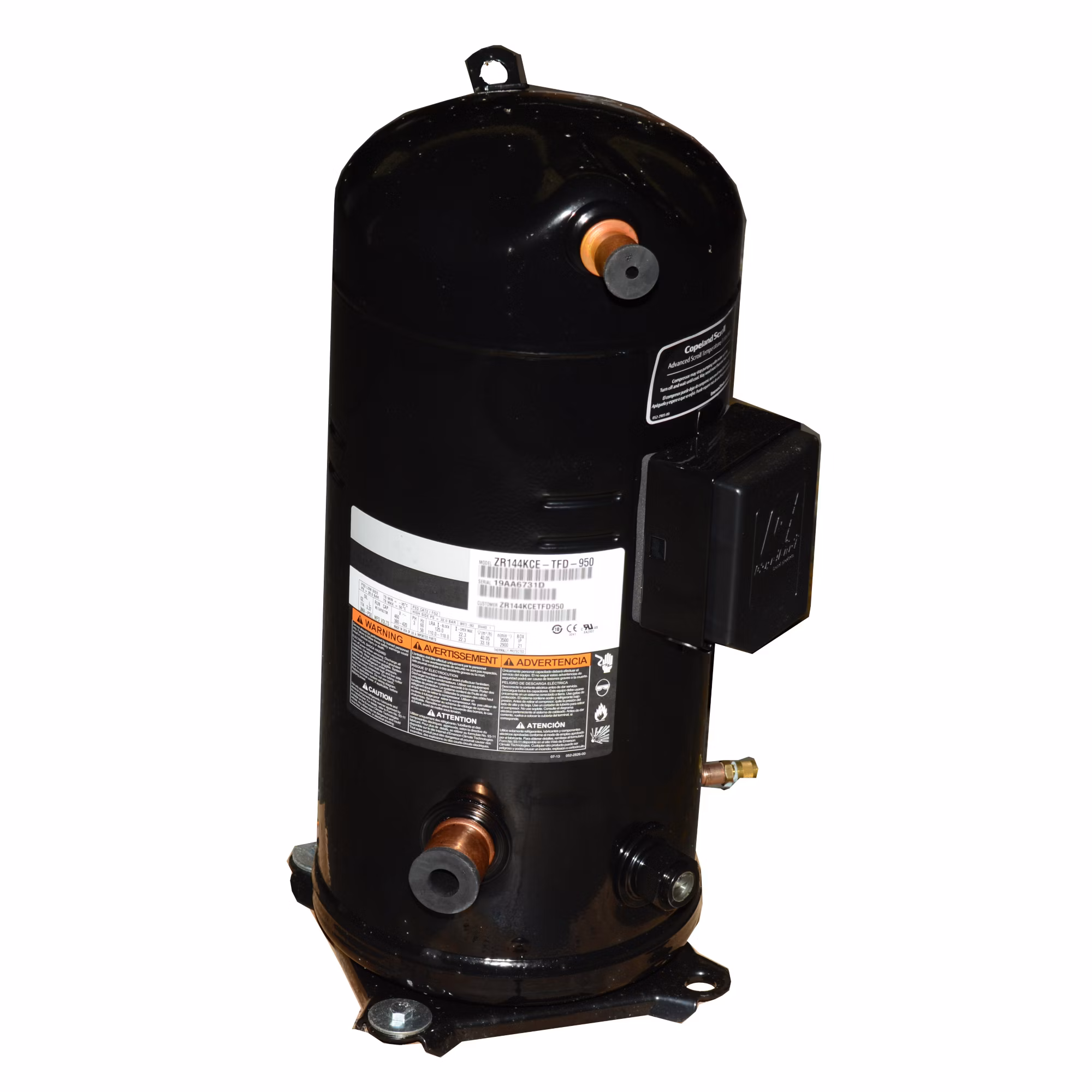

Factory Authorized Parts – Carrier ZR144KCE-TFD-950 Copeland Scroll Compressor 144000 BTUH

$6,719.49

E:Mail: sales@walkair.us to confirm availability or for volume discounts

SKU: ZR144KCE-TFD-950 Category: Tag:

Description

Factory Authorized Parts – ZR144KCE-TFD-950 Copeland Scroll Compressor 144000 BTUH – E:Mail: sales@walkair.us to confirm availability or for volume discounts

Benefits of Copeland scroll compressors:
Only three moving parts–fewer moving parts means less maintenance needed. By contrast, other reciprocating compressors can have up to nine moving parts in each cylinder.
No complex internal valves–the simplified design resists liquid refrigerant slugging, debris and failure,
Higher efficiency–Copeland was one of the first companies to create partial load operation across its compressor line. Their scroll compressors tend to be more efficient across its entire operating range.
Lower vibration levels–this means not just less noise, but also less wear and tear on components.

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time. Use chat if you need to confirm lead time before ordering. By purchasing this product, you agree to t

Attributes
Amps 16.3-18.1
Approvals UL Recognized
BTU Output 144,000
Brand Copeland
Compressor Housing Hermetic
Compressor Type Scroll
Condensing Temperature 130°F (54.44°C)
Country of Origin USA
Cubic Measurement 4.4162
Cycle/Hertz 50/60 Hz
Dimensional Weight 58
Discharge Connection Size OD 7/8″
Discharge Connection Type Stub
Displacement 11.65 (in^3/Rev)
Evaporating Temperature 45°F (7.22°C), 35°F
Liquid Temperature 115°F (46.11°C)
Locked Rotor Amps (LRA) 125
Mass Flow (lbs/hr) 1715 lbs./hr.; 2070 lbs./hr.
Mounting Dimensions 7.5″ x 7.5″ x 21.75″
OPT Code ZR144KCETFD950
Oil Charge Initial (oz.) 110
Oil Type Polyolester (POE)
Phase Three
Prop 65 NO
Protection Yes
Rated Load Amps (RLA) 22.1, 18.6
Refrigerant R-134a ; R-22 ; R-407C
Return Gas Temperature 55°F, 65°F (18.33°C)
Sound Level (dBA) 80-85
Suction Line Fitting Type Stub
Suction Line Size (OD) 1 3/8″
UOM EA
UPC See Optical
Voltage 380 VAC: 420 VAC; 460 VAC

Additional information

Weight 135 lbs
Dimensions 10.38 × 11.23 × 21 in
