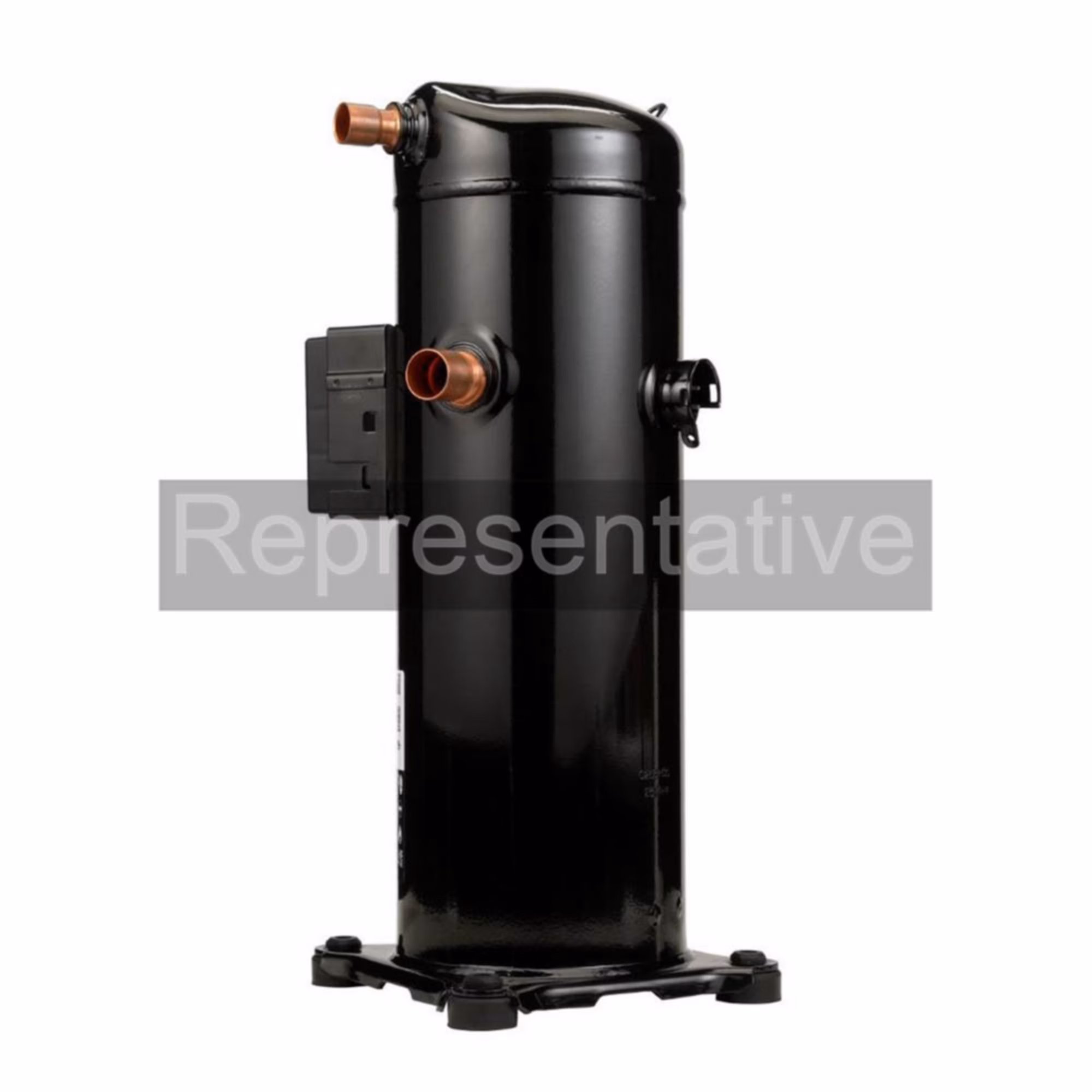

Factory Authorized Parts – Carrier ZPS49K5E-TFD-130 COMPRESSOR

$2,710.33

E:Mail: sales@walkair.us to confirm availability or for volume discounts

SKU: ZPS49K5E-TFD-130 Category: Tag:

Description

Factory Authorized Parts – ZPS49K5E-TFD-130 COMPRESSOR – E:Mail: sales@walkair.us to confirm availability or for volume discounts

Benefits of Copeland scroll compressors:
Only three moving parts–fewer moving parts means less maintenance needed. By contrast, other reciprocating compressors can have up to nine moving parts in each cylinder.
No complex internal valves–the simplified design resists liquid refrigerant slugging, debris and failure,
Higher efficiency–Copeland was one of the first companies to create partial load operation across its compressor line. Their scroll compressors tend to be more efficient across its entire operating range.
Lower vibration levels–this means not just less noise, but also less wear and tear on components.

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time. Use chat if you need to confirm lead time before ordering. By purchasing this product, you agree to t

Attributes
Amps 5.4-6.4
Approvals UL Recognized
BTU Output 49,300-60,600
Brand Copeland
Compressor Housing Hermetic
Compressor Type Scroll
Condensing Temperature 115°F to 130°F (46.11°C to 54.44°C)
Country of Origin USA
Cubic Measurement 3.1561
Cycle/Hertz 50/60 Hz
Discharge Connection Size OD 1/2″
Discharge Connection Type Stub
Displacement 2.82 (in^3/Rev)
Evaporating Temperature 45°F (7.22°C), 50F
Liquid Temperature 100°F to 115°F (37.78°C to 46.11°C)
Locked Rotor Amps (LRA) 52
Mass Flow (lbs/hr) 727 lbs./hr.; 808 lbs./hr.
Mounting Dimensions 7.5″ x 7.5″ x 17.17″
Oil Charge Initial (oz.) 42
Oil Type Polyolester (POE)
Phase Three
Prop 65 YES
Protection Yes
Rated Load Amps (RLA) 7.6
Refrigerant R-410A
Return Gas Temperature 65°F (18.33°C), 70°F (21.11°C)
Sound Level (dBA) 70-75
Suction Line Fitting Type Stub
Suction Line Size (OD) 7/8″
Voltage 380 VAC: 420 VAC; 460 VAC

Additional information

Weight 72.8 lbs
Dimensions 9.56 × 9.56 × 16.94 in
