Description

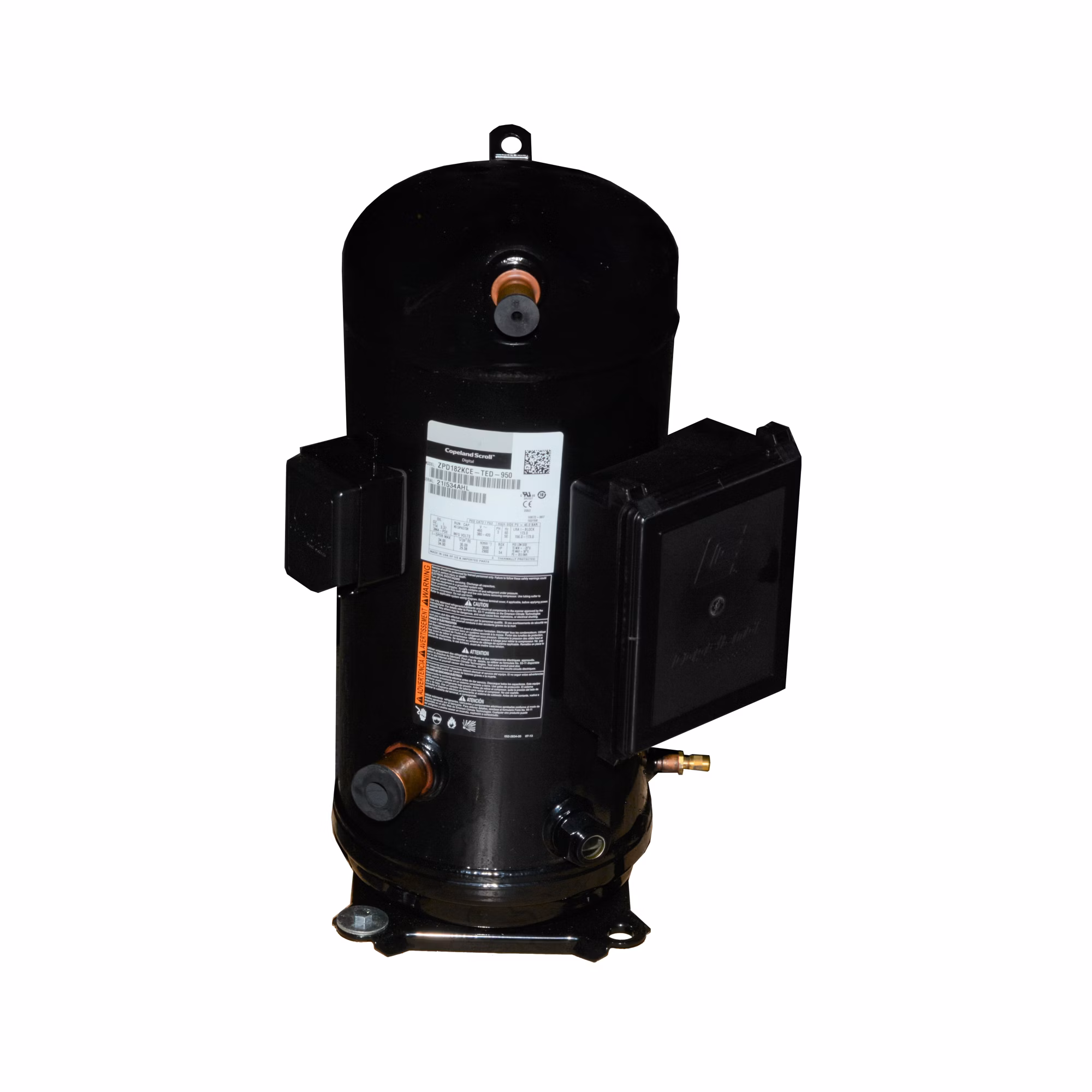

Factory Authorized Parts – ZPD182KCE-TED-950 Copeland Scroll Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Benefits of Copeland scroll compressors:
Only three moving parts–fewer moving parts means less maintenance needed. By contrast, other reciprocating compressors can have up to nine moving parts in each cylinder.
No complex internal valves–the simplified design resists liquid refrigerant slugging, debris and failure,
Higher efficiency–Copeland was one of the first companies to create partial load operation across its compressor line. Their scroll compressors tend to be more efficient across its entire operating range.
Lower vibration levels–this means not just less noise, but also less wear and tear on components.
Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time. Use chat if you need to confirm lead time before ordering. By purchasing this product, you agree to t
| Attributes | |
|---|---|
| Amps | 24.7-26.8 |
| Approvals | UL Recognized |
| BTU Output | 182,000 |
| Brand | Copeland |
| Compressor Housing | Hermetic |
| Compressor Type | Scroll |
| Condensing Temperature | 130°F (54.44°C) |
| Country of Origin | USA |
| Cubic Measurement | 4.9259 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 62 |
| Discharge Connection Size OD | 7/8″ |
| Discharge Connection Type | Stub |
| Displacement | 10.2 (in^3/Rev) |
| Evaporating Temperature | 45°F (7.22°C), 35°F |
| Liquid Temperature | 115°F (46.11°C) |
| Locked Rotor Amps (LRA) | 173 |
| Mass Flow (lbs/hr) | 2270 lbs./hr.; 2690 lbs./hr. |
| Mounting Dimensions | 7.5″ x 7.5″ x 23.02″ |
| OPT Code | ZPD182KCETED950 |
| Oil Charge Initial (oz.) | 114 |
| Oil Type | Polyolester (POE) |
| Phase | Three |
| Prop 65 | NO |
| Protection | External Enhanced |
| Rated Load Amps (RLA) | 30, 26.9 |
| Refrigerant | R-410A |
| Return Gas Temperature | 55°F, 65°F (18.33°C) |
| Sound Level (dBA) | 82-87 |
| Suction Line Fitting Type | Stub |
| Suction Line Size (OD) | 1 3/8″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 380 VAC: 420 VAC; 460 VAC |
