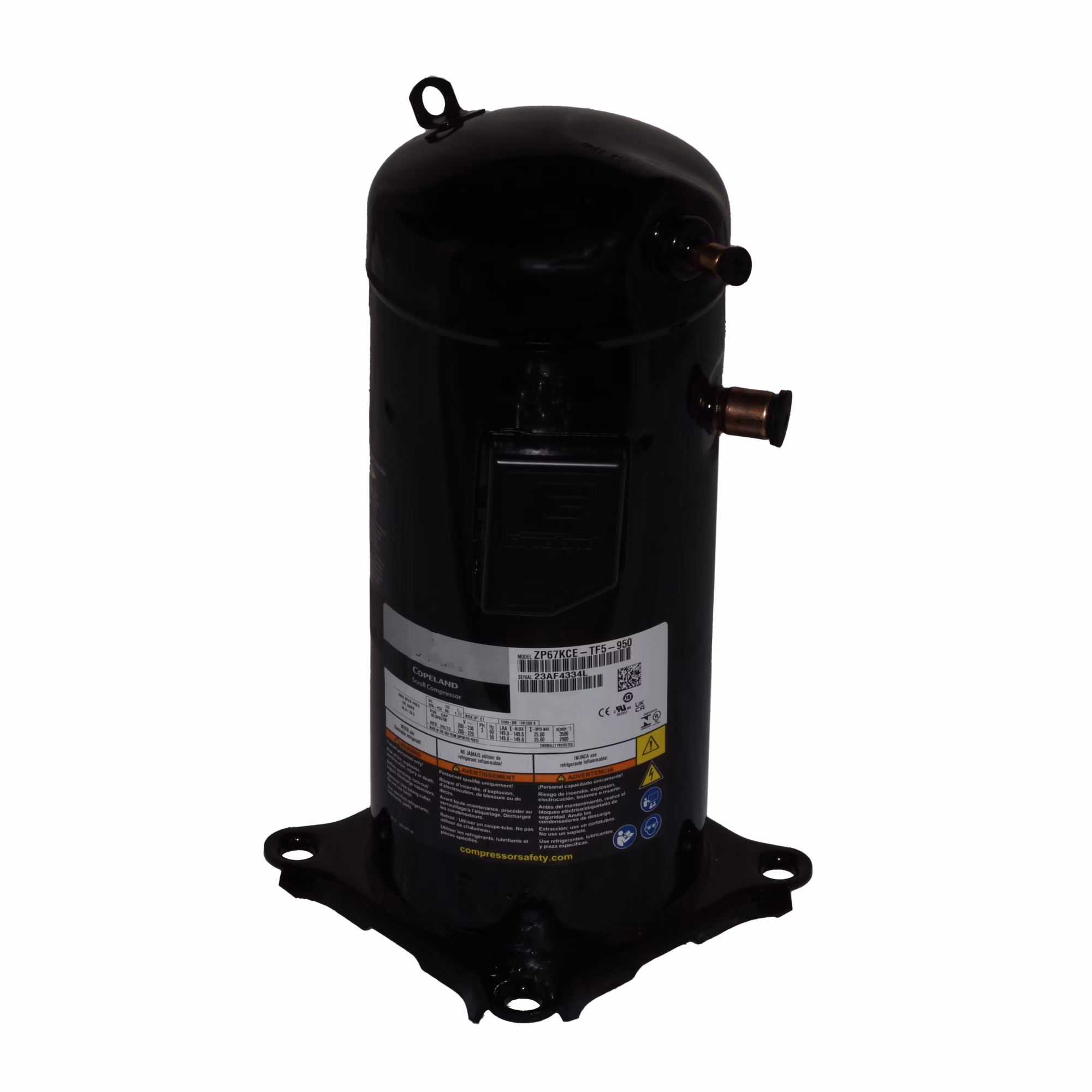

Factory Authorized Parts – Carrier ZP67KCE-TF5-950 – Compressor

$3,125.39

E:Mail: sales@walkair.us to confirm availability or for volume discounts

SKU: ZP67KCE-TF5-950 Category: Tag:

Description

Factory Authorized Parts – ZP67KCE-TF5-950 – Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

Benefits of Copeland scroll compressors:
Only three moving parts–fewer moving parts means less maintenance needed. By contrast, other reciprocating compressors can have up to nine moving parts in each cylinder.
No complex internal valves–the simplified design resists liquid refrigerant slugging, debris and failure,
Higher efficiency–Copeland was one of the first companies to create partial load operation across its compressor line. Their scroll compressors tend to be more efficient across its entire operating range.
Lower vibration levels–this means not just less noise, but also less wear and tear on components.

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time. Use chat if you need to confirm lead time before ordering. By purchasing this product, you agree to t

Attributes
Amps 14-18.2
Approvals UL Recognized
BTU Output 67,500-83,000
Brand Copeland
Compressor Housing Hermetic
Compressor Type Scroll
Condensing Temperature 130°F (54.44°C)
Country of Origin USA
Cubic Measurement 0.9732
Cycle/Hertz 50/60 Hz
Dimensional Weight 26
Discharge Connection Size OD 1/2″
Discharge Connection Type Stub
Displacement 3.84 (in^3/Rev)
Evaporating Temperature 45°F (7.22°C)
GTIN 00822529496863
Liquid Temperature 115°F (46.11°C)
Locked Rotor Amps (LRA) 149
Mass Flow (lbs/hr) 995 lbs./hr.; 1030 lbs./hr.
Mounting Dimensions 7.50″ x 7.50″ x 18.16″
OPT Code ZP67KCE-TF5-950
Oil Charge Initial (oz.) 60
Oil Type Polyolester (POE)
Phase Three
Prop 65 YES
Protection Yes
Rated Load Amps (RLA) 25
Refrigerant R-410A
Return Gas Temperature 65°F (18.33°C)
Sound Level (dBA) 75-80
Suction Line Fitting Type Stub
Suction Line Size (OD) 7/8″
UOM EA
UPC See Optical
Voltage 200/220, 200/230 VAC

Additional information

Weight 88 lbs
Dimensions 9.69 × 9.69 × 17.91 in
